Toyota RAIZE — PARTIAL ENGINE ASSEMBLY

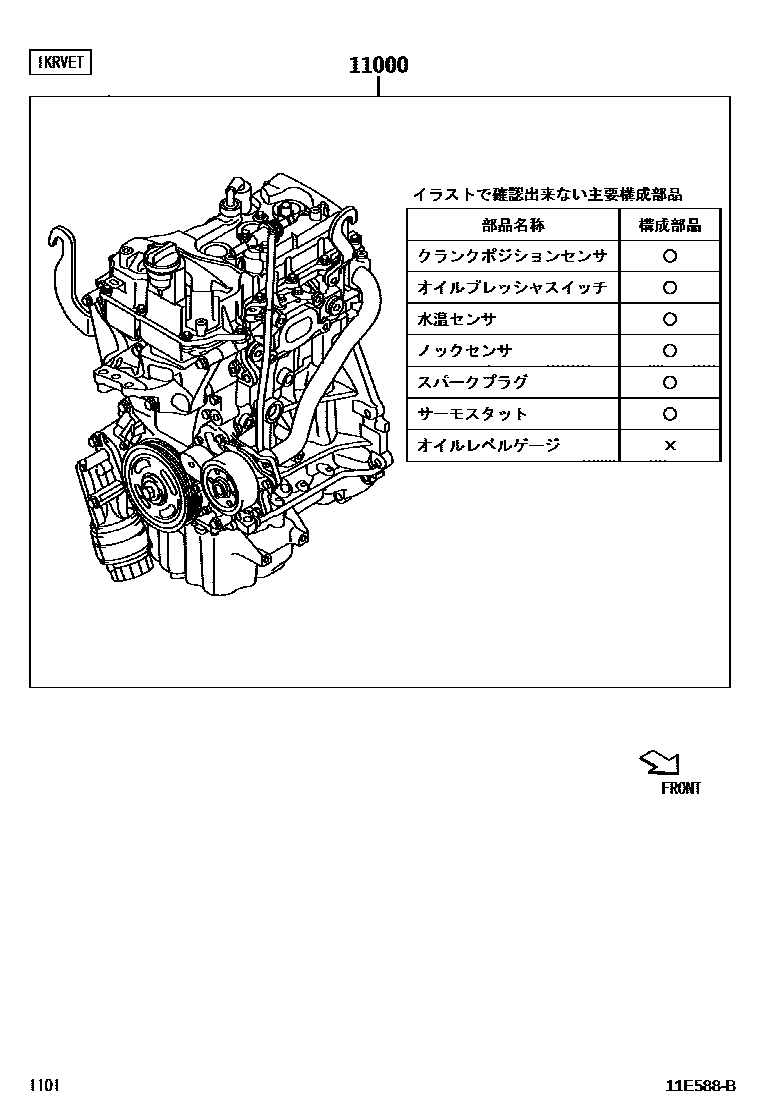

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-B1A25i¥256,000201910-202111

main19000-B1A35i¥256,000202111-202912

main19000-B1T10i¥280,000202111-202912

main19000-B1T20i¥280,000202111-202912

1 parts on this diagram · 3 diagrams in section
