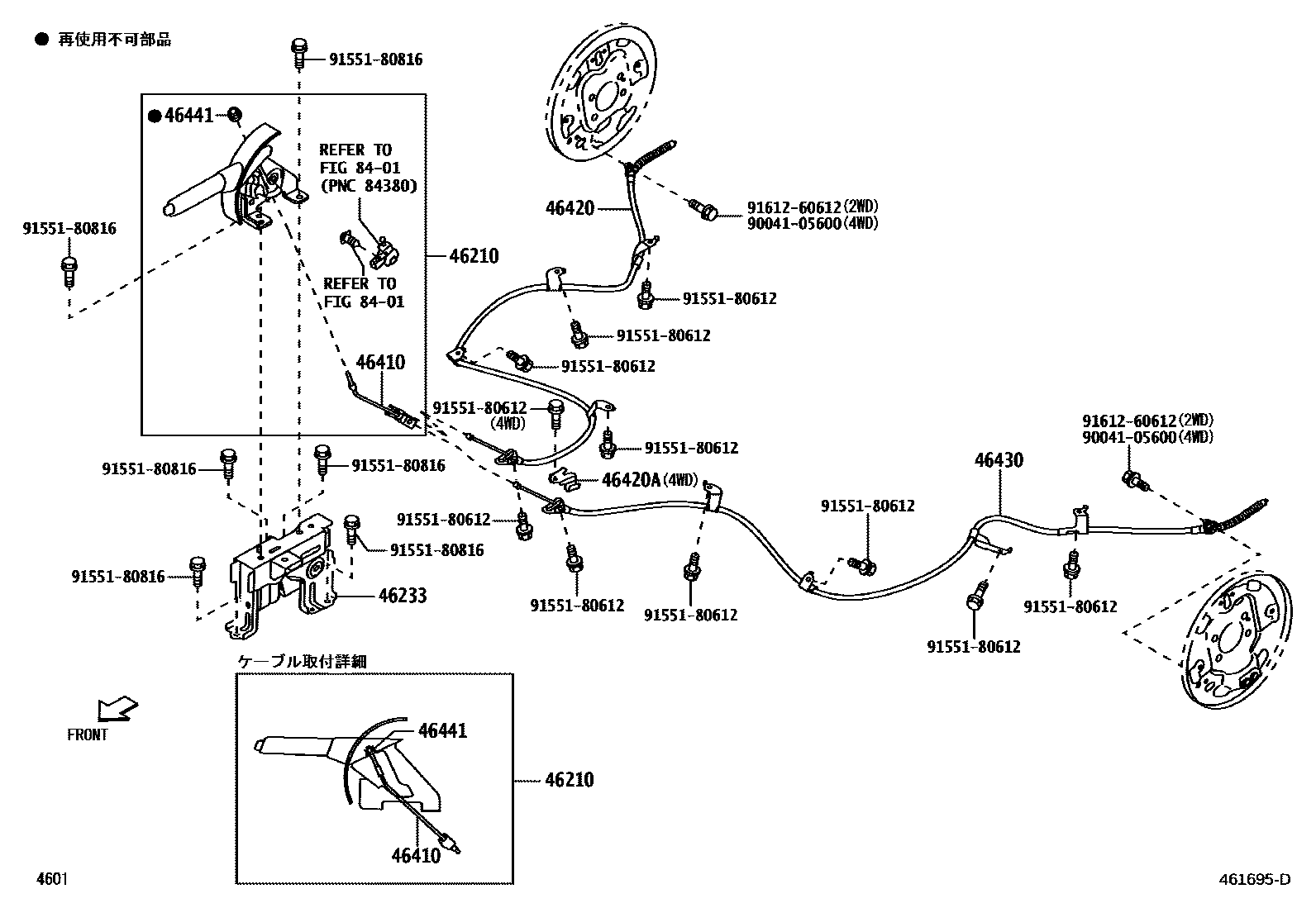

Toyota RAIZE — PARKING BRAKE & CABLE

0001 1 0002 1�������������������� 0003 1������������������

46210LEVER ASSY, PARKING BRAKE

main46210-B1060-C0iA200,210..X201910-202002

BLACK,TRIM2#

sub46210-B1061¥6,700

main46210-B1061-C0iA200,210..X202003-202912

BLACK,TRIM2#

main46210-B1070-C0iA200,210..G,Z201910-202001

BLACK,TRIM2#

sub46210-B1071¥6,700

main46210-B1071-C0iA200,210..G,Z202002-202912

BLACK,TRIM2#

46233SUPPORT, PARKING BRAKE CENTER

main46233-B1010iA201,210..G,X¥860201910-202912

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-B1020iA200,210¥2,940201910-202912

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-B1130iA200¥3,660201910-202912

main46420-B1140iA210¥3,400201910-202912

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90044-62338iA210¥360201910-202912

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-B1130iA200¥3,660201910-202912

main46430-B1140iA210¥3,400201910-202912

46441NUT, WIRE ADJUSTING, NO.1

main90041-78060iA200,210¥170201910-202111

main90041-78060iA201,210..G,X¥170202111-202912

8401

9004105600

main90041-05600¥110

9155180612

main91551-80612¥60

9155180816

main91551-80816¥80

9161260612

main91612-60612¥200

12 parts on this diagram · 3 diagrams in section
