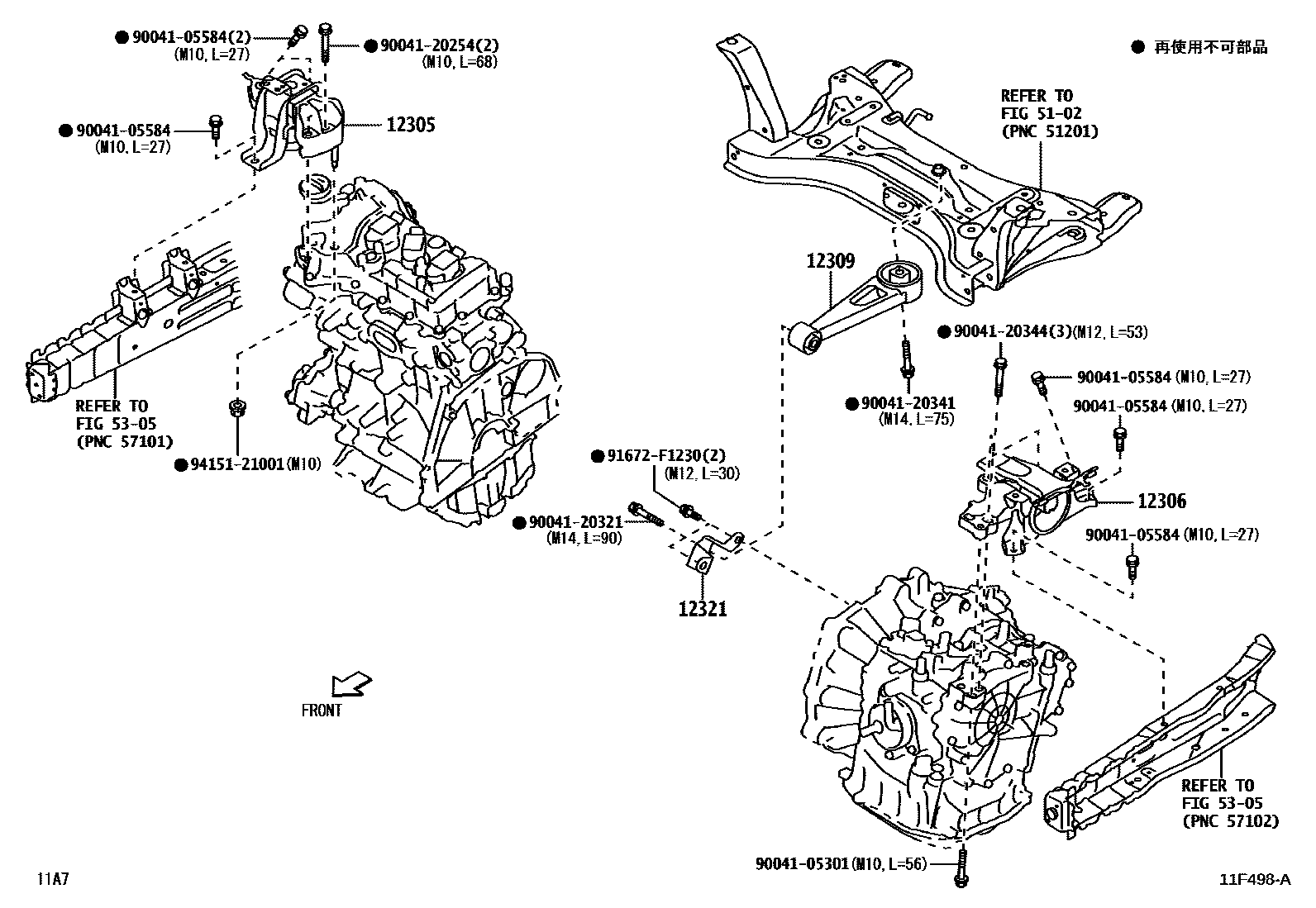

Toyota RAIZE — MOUNTING

0001 1 0002 1 0003 1 0004 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B1160i1KRVET..A200,210¥11,100201910-202111

main12305-B1160i1KRVET..A210¥11,100202111-202912

main12305-B1170iWAVE..A201¥11,100202111-202912

main12305-B1180iWAVEX..A202¥12,200202111-202211

main12305-B1181iWAVEX..A202¥11,100202211-202912

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-B1160i1KRVET..A200,210¥5,300201910-202111

main12306-B1160i1KRVET..A210¥5,300202111-202912

main12306-B1180iWAVE..A201¥5,300202111-202912

main12306-B1190iWAVEX..A202¥5,300202111-202912

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-B1130i1KRVET..A200,210¥3,250201910-202111

main12309-B1130i1KRVET..A210¥3,250202111-202912

main12309-B1140iWAVE..A201¥3,250202111-202912

main12309-B1150iWAVEX..A202¥3,250202111-202912

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-B2120i1KRVET..A200,210¥2,320201910-202111

main12321-B2120iWAV#,1KRVET..A20#,210¥2,320202111-202912

5102

5305

9004105301

main90041-05301¥290

9004105584

main90041-05584¥220

9004120254

main90041-20254¥360

9004120321

main90041-20321¥400

9004120341

main90041-20341¥360

9004120344

main90041-20344¥290

91672F1230

main91672-F1230¥190

9415121001

main94151-21001¥100

14 parts on this diagram · 4 diagrams in section
