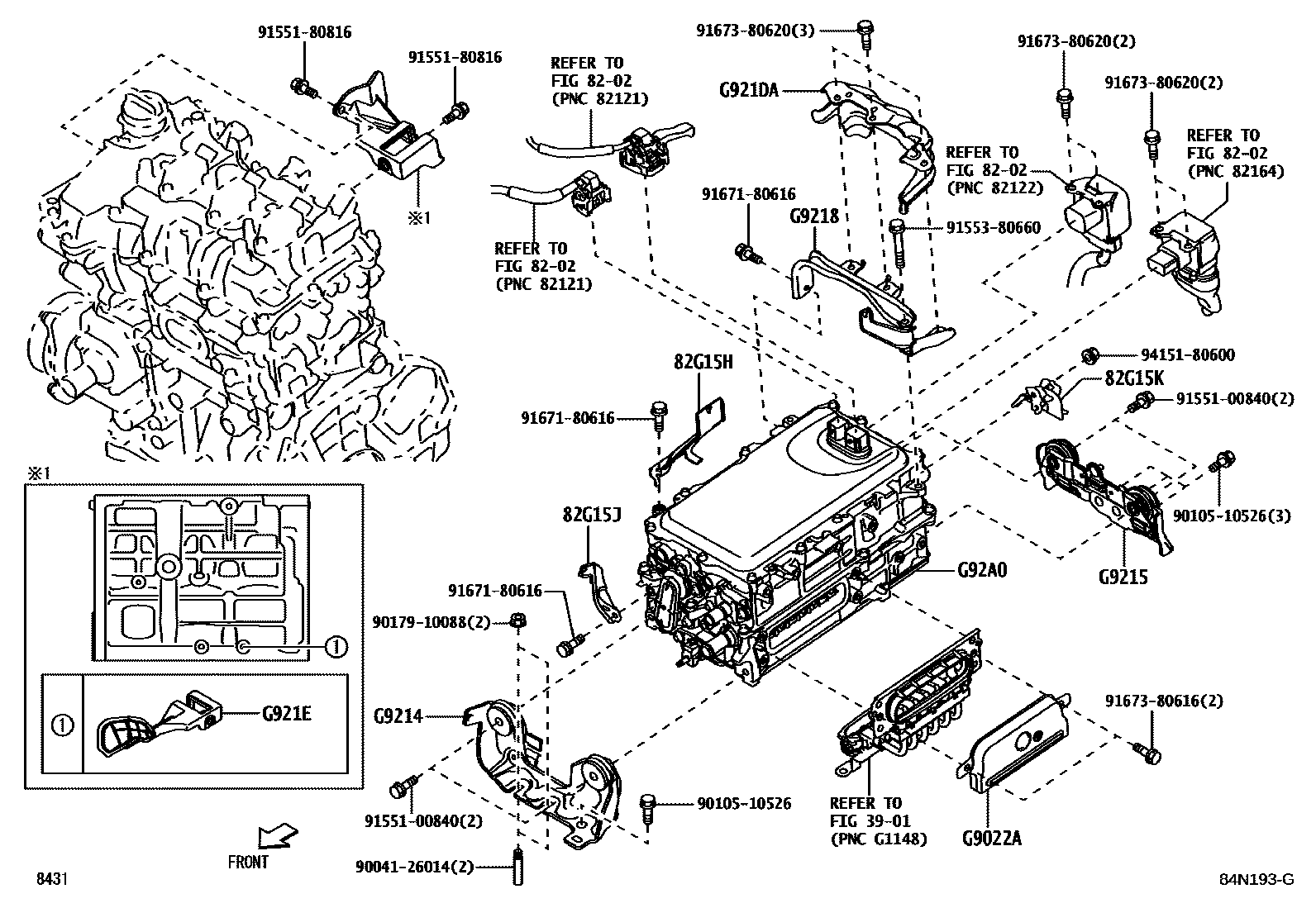

Toyota RAIZE — HEV INVERTER

0001 1������ASSY&��������� 0002 1�������

3901

8202

82G15HBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-B1740iA202¥820202111-202912

82G15JBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-B1750iA202¥600202111-202912

82G15KBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-B1790iA202¥1,200202111-202912

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iA202202111-202912

G9214BRACKET, INVERTER, NO.1

mainG9214B1010iA202202111-202912

G9215BRACKET, INVERTER, NO.2

mainG9215B1010iA202202111-202407

mainG9215B1020iA202202408-202912

G9218BRACKET, INVERTER, NO.7

mainG9218B1010iA202202111-202912

G921DAPROTECTOR, INVERTER CONNECTOR COVER

mainG921DB1010iA202202111-202912

G921EPROTECTOR, INVERTER

mainG921EB1010iA202202111-202912

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A0B1010iA202202111-202912

9004126014

main90041-26014¥310

9010510526

main90105-10526¥100

9017910088

main90179-10088¥100

9155100840

main91551-00840¥80

9155180816

main91551-80816¥80

9155380660

main91553-80660¥230

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

9415180600

main94151-80600¥60

22 parts on this diagram · 2 diagrams in section
