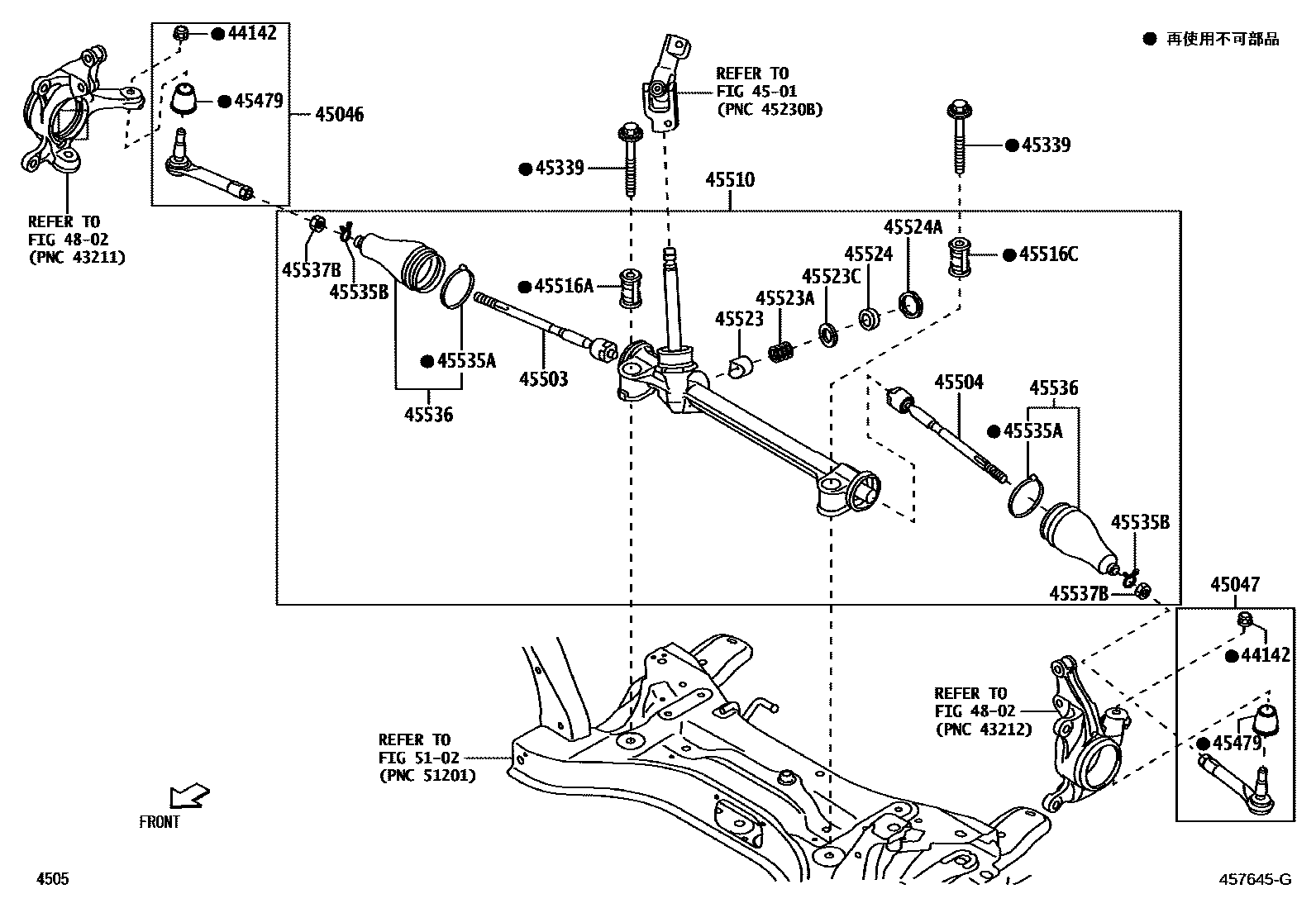

Toyota RAIZE — FRONT STEERING GEAR & LINK

0001 1 0002 1

44142NUT, LOCK

main90041-77011iA200,210¥120201910-202111

main90041-77011iA20#,210¥120202111-202912

4501

45046END SUB-ASSY, TIE ROD, RH

main45046-B9430iA200,210¥3,200201910-202912

45047END SUB-ASSY, TIE ROD, LH

main45046-B9430iA200,210¥3,200201910-202912

45339BOLT, STEERING GEAR HOUSING

main90041-19A33iA200,210¥460201910-202912

45479SEAL, STEERING LINK JOINT DUST

main45479-B1010iA200,210¥700201910-202912

45503END SUB-ASSY, STEERING RACK

main45503-B1040iA200,210¥4,480201910-202912

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-B1040iA20#,210¥4,480201910-202912

45510GEAR ASSY, STEERING

main45502-B1430iA20#,210..G,X¥33,200201910-202912

main45502-B1440iA200,210..Z¥33,200201910-202912

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B1060iA200,210¥1,610201910-202912

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B1070iA200,210¥1,510201910-202912

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-B1060iA200,210¥800201910-202912

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90045-01977iA200,210¥190201910-202912

45523CSPACER(FOR RACK GUIDE)

main90042-08038iA200,210¥200201910-202912

45524CAP, STEERING RACK GUIDE SPRING

main45524-B1020iA200,210¥1,080201910-202912

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90041-70378iA200,210¥220201910-202111

main90041-70378iA20#,210¥220202111-202912

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-B2020iA200,210¥330201910-202912

45535BCLIP(FOR STEERING RACK BOOT)

main45537-B2050iA200,210¥130201910-202912

45536BOOT, STEERING RACK, NO.2

main45535-B9010iA200,210¥1,980201910-202912

45537BNUT, RACK END LOCK

main90041-70400iA200,210¥190201910-202111

main90041-70400iA20#,210¥190202111-202912

4802

5102

22 parts on this diagram · 2 diagrams in section
