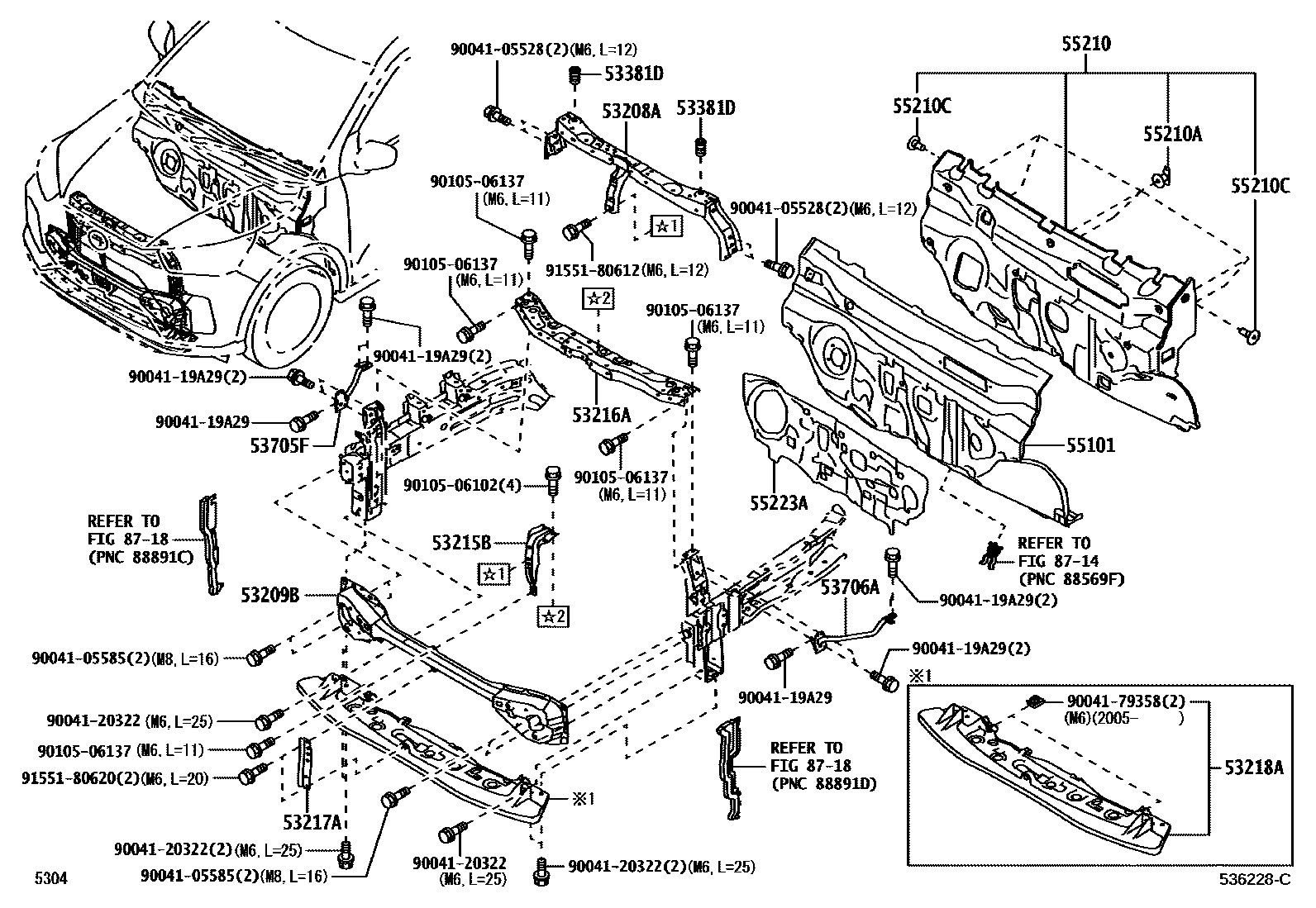

Toyota RAIZE — FRONT FENDER APRON & DASH PANEL

0001 1�����������,��������� 0002 1�����������,��������� 0003 1�������������� 0004 1�������������� 0005 1��������������

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-B1030iA200,210¥5,500201910-202111

main53208-B1030iA20#,210¥5,500202111-202912

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-B1020iA200,210¥8,000201910-202111

main53209-B1020iA20#,210¥8,000202111-202912

53215BSUPPORT, HOOD LOCK

main53215-B1080iA200,210¥1,610201910-202007

sub53215-B1100¥1,620

main53215-B1100iA200,210¥1,620202008-202111

main53215-B1100iA20#,210¥1,620202111-202912

53216ASUPPORT, RADIATOR, UPPER

main53216-B1100iA200,210¥4,900201910-202111

main53216-B1100iA20#,210¥4,900202111-202912

53217ABRACE, HOOD LOCK SUPPORT

main53217-B1010iA200,210¥1,030201910-202111

main53217-B1010iA20#,210¥1,030202111-202912

53218ASUPPORT, RADIATOR, LOWER

main53218-B1080iA200,210¥5,900201910-202111

main53218-B1080iA20#,210¥5,900202111-202912

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-B2150iA200,210¥960201910-202111

main53381-B2150iA20#,210¥960202111-202912

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-B1010iA200,210¥6,100201910-202111

main53705-B1010iA201,210¥6,100202111-202912

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-B1010iA200,210¥6,200201910-202111

main53706-B1010iA201,210¥6,200202111-202912

55101PANEL SUB-ASSY, DASH

main55101-B1190iA200,210¥22,800201910-202111

main55101-B1190iA201,210¥22,800202111-202912

main55101-B1200iA202¥22,800202111-202912

55210INSULATOR ASSY, DASH PANEL

main55210-B1131iA200,210¥8,700201910-202111

main55210-B1131iA201,210¥8,700202111-202912

main55210-B1140iA202¥13,600202111-202912

���������i�h�o�`�j

55210ACLIP

main90467-11122iA200,210¥100201910-202111

main90467-11122iA20#,210¥100202111-202912

55210CCLIP

main90467-13079iA200,210¥120201910-202111

main90467-13079iA20#,210¥120202111-202912

55223AINSULATOR, DASH PANEL, OUTER

main55223-B1090iA200,210¥2,990201910-202111

main55223-B1090iA20#,210¥2,990202111-202912

8714

8718

9004105528

main90041-05528¥110

9004105585

main90041-05585¥150

9004119A29

main90041-19A29¥110

9004120322

main90041-20322¥140

9004179358

main90041-79358¥120

9010506102

main90105-06102¥70

9010506137

main90105-06137¥70

9155180612

main91551-80612¥60

9155180620

main91551-80620¥60

25 parts on this diagram · 5 diagrams in section
