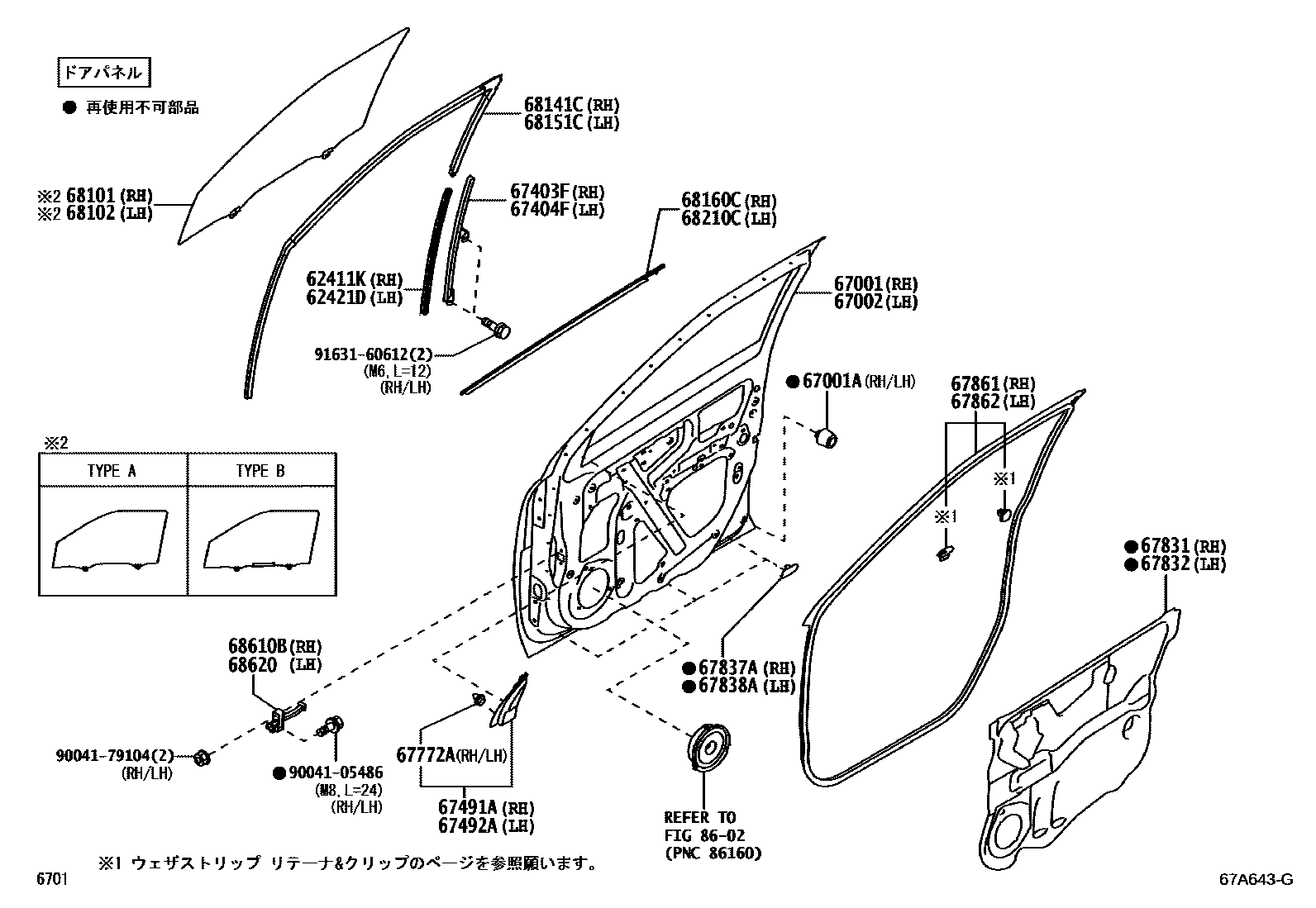

Toyota RAIZE — FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������ 0004 1���������� ���� & ����� 0005 1������������

62411KRUN, FRONT DOOR WINDOW, RH

main68143-B1070iA200,210¥600201910-202912

62421DRUN, FRONT DOOR WINDOW, LH

main68143-B1070iA200,210¥600201910-202912

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-B1110iA200,210¥39,800201910-202912

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iA200,210¥170201910-202912

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-B1110iA200,210¥39,800201910-202912

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-B1070iA200,210¥2,530201910-202912

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-B1070iA200,210¥2,530201910-202912

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-B1060iA200,210¥770201910-202912

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-B1060iA200,210¥770201910-202912

67772ACAP, FRONT DOOR TRIM RETAINER

main67771-B2010iA200,210¥170201910-202912

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-B1100iA200,210¥750201910-202912

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-B1080iA200,210¥750201910-202912

67837ASEAL, FRONT DOOR VENT, RH

main67837-B1010iA20#,210¥120201910-202912

67838ASEAL, FRONT DOOR VENT, LH

main67837-B1010iA20#,210¥120201910-202912

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-B1110iA200,210¥4,640201910-202912

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-B1110iA200,210¥4,640201910-202912

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-B1070iA200,210..X¥15,100201910-202101

sub68101-B1071¥13,600

main68101-B1071iA200,210..X¥13,600202101-202912

main68101-B1080iA200,210..G,Z¥30,000201910-202012

sub68101-B1081¥27,200

main68101-B1081iA20#,210..G,Z¥27,200202012-202912

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-B1070iA200,210..X¥15,100201910-202012

sub68102-B1071¥13,600

main68102-B1071iA200,210..X¥13,600202012-202912

main68102-B1080iA200,210..G,Z¥30,000201910-202012

sub68102-B1081¥27,200

main68102-B1081iA200,210..G,Z¥27,200202012-202912

68141CRUN, FRONT DOOR GLASS, RH

main68141-B1080iA200,210¥2,840201910-202004

sub68141-B1081¥2,840

main68141-B1081iA200,210¥2,840202005-202112

sub68141-B1082¥2,840

main68141-B1082iA20#,210¥2,840202112-202912

68151CRUN, FRONT DOOR GLASS, LH

main68151-B1080iA200,210¥2,840201910-202004

sub68151-B1081¥2,840

main68151-B1081iA200,210¥2,840202005-202112

sub68151-B1082¥2,840

main68151-B1082iA20#,210¥2,840202112-202912

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-B1070iA200,210¥1,950201910-202912

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-B1070iA20#,210¥1,950201910-202912

68610BCHECK ASSY, FRONT DOOR, RH

main68610-B1070iA20#,210¥1,700201910-202306

sub68610-B1071¥1,700

main68610-B1071iA20#,210¥1,700202307-202912

68620CHECK ASSY, FRONT DOOR, LH

main68610-B1070iA200,210¥1,700201910-202306

sub68610-B1071¥1,700

main68610-B1071iA20#,210¥1,700202307-202912

8602

9004105486

main90041-05486¥170

9004179104

main90041-79104¥100

9163160612

main91631-60612¥110

28 parts on this diagram · 5 diagrams in section
