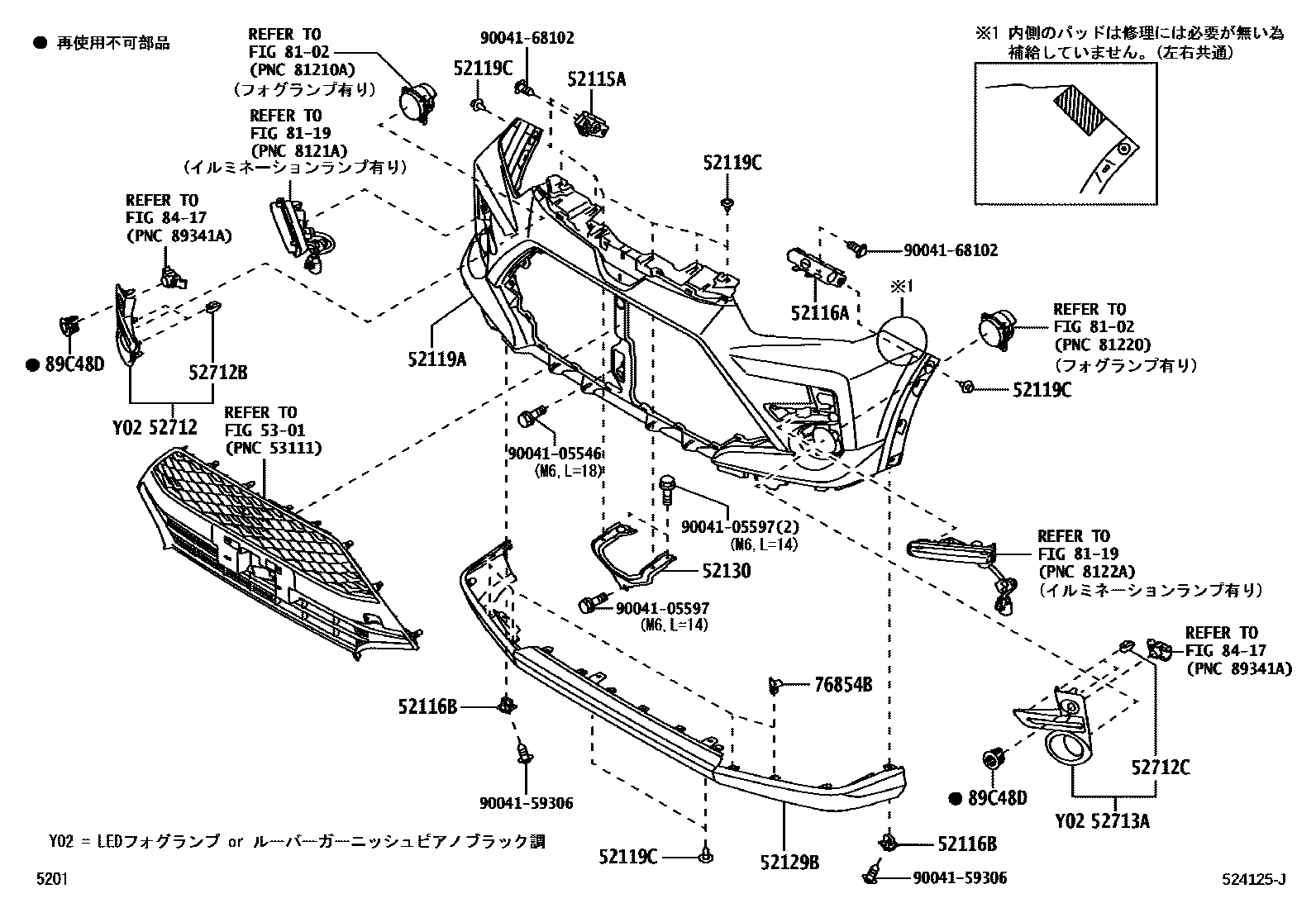

Toyota RAIZE — FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-B1060iA200,210¥520201910-202003

sub52115-B1061¥520

main52115-B1061iA200,210¥520202004-202912

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-B1060iA200,210¥520201910-202003

sub52116-B1061¥520

main52116-B1061iA200,210¥520202004-202912

52116BRETAINER, FRONT BUMPER

main52116-B1070iA200,210¥170201910-202912

52119ACOVER, FRONT BUMPER

main52119-B1410-A0iA20#,210..Z201910-202912

WHITE PEARL SE.,W25 ,XH3

main52119-B1410-A0iA20#,210..Z201910-202912

WHITE PEARL SE.,W25

main52119-B1410-B0iA200,210..G,X201910-202111

SILVER ME.,S28

main52119-B1410-B0iA200,210..Z201910-202111

SILVER ME.,S28 ,X95

main52119-B1410-B1iA20#,210..Z202111-202912

GRAY M.M.,S42

main52119-B1410-B1iA20#,210..Z202111-202912

GRAY M.M.,S42 ,XL1

main52119-B1410-C0iA200,210201910-202912

BLACK M.M.,X07

main52119-B1410-D0iA20#,210201910-202912

RED ME.,R67

main52119-B1410-E0iA20#,210201910-202912

BROWNISH BEIGE M.M.,T32

main52119-B1410-F0iA20#,210201910-202912

GREENISHYELLOW M.M.,Y15

main52119-B1410-J0iA200,210201910-202111

LASER BLUE CRYSTAL SHINE,B82

main52119-B1410-J0iA20#,210202111-202912

TURQUOISE BLUE SE.,B82

main52119-B1410-J1iA20#,210..G,X201910-202912

TURQUOISE M.M.,B86

main52119-B1410-J1iA200,210..Z201910-202912

TURQUOISE M.M.,B86 ,XH6

52119CCLIP, FRONT BUMPER COVER

main90044-68378iA200,210¥110201910-202912

52129BCOVER, FRONT BUMPER, LOWER

main52129-B1080iA200,210¥8,800201910-202912

52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-B1010iA200,210¥1,630201910-202912

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-B1180iA200,210..Z¥1,310201910-202912

main52712-B1220iA200,210..G,X¥1,310201910-202912

52712BCLIP, FRONT BUMPER MOULDING

main90467-05172iA200,210¥60201910-202912

52712CCLIP, FRONT BUMPER MOULDING, NO.2

main90467-05172iA200,210¥60201910-202912

52713AMOULDING, FRONT BUMPER SIDE, LH

main52713-B1170iA200,210..Z¥1,310201910-202912

main52713-B1210iA200,210..G,X¥1,310201910-202912

5301

76854BRETAINER, FRONT SPOILER,NO.2

main76854-87401iA200,210¥180201910-202912

8102

8417

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-B1070iA20#,210¥580202111-202912

main89348-B2050-C0iA200,210..Z201910-202111

BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,Y15

main89348-B2050-C0iA200,210..G,X201910-202111

BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,X95 ,XH3 ,XH6 ,Y15

9004105546

main90041-05546¥110

9004105597

main90041-05597¥110

9004159306

main90041-59306¥100

9004168102

main90041-68102¥140

20 parts on this diagram · 2 diagrams in section
