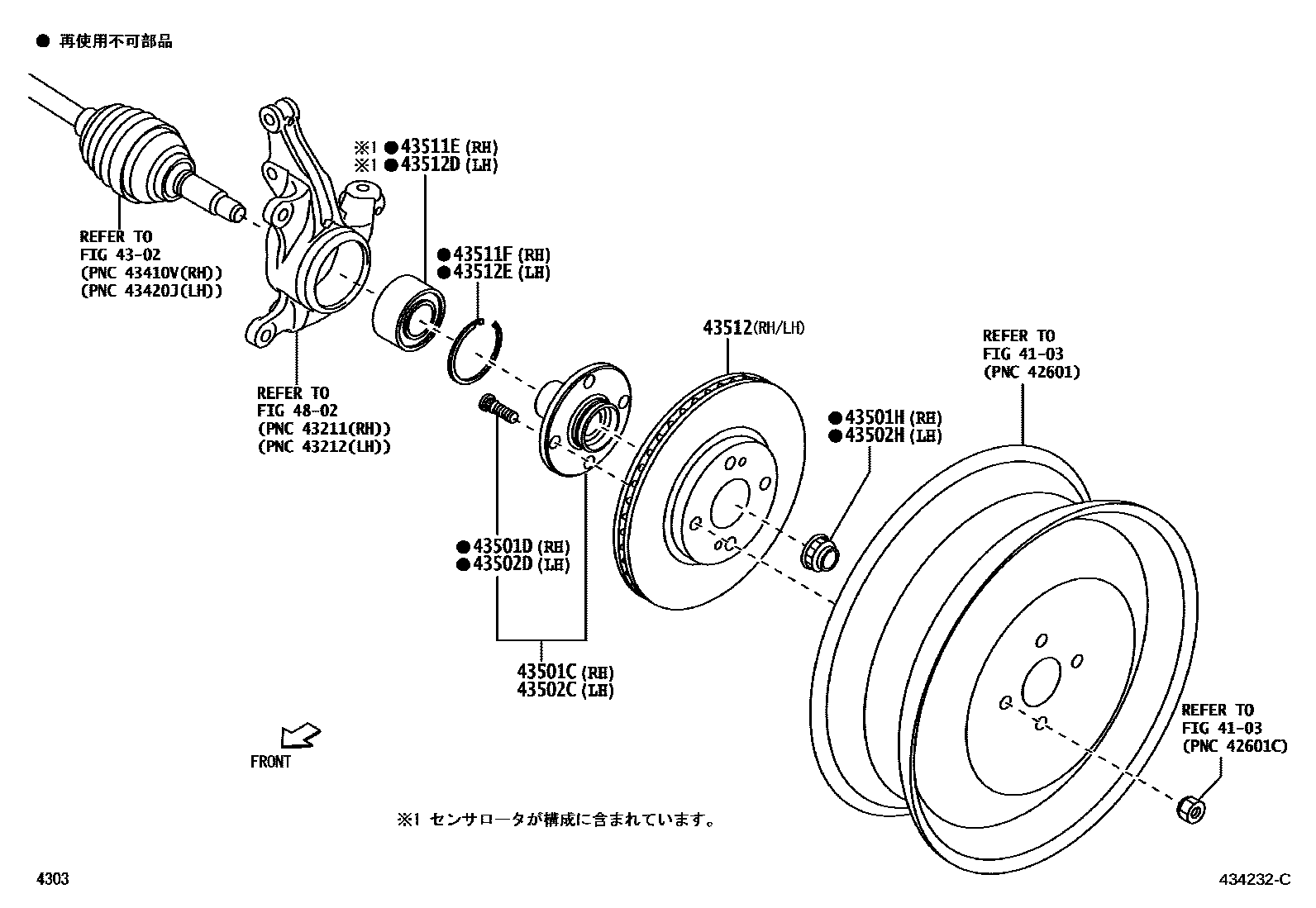

Toyota RAIZE — FRONT AXLE HUB

0001 1 0002 1STD 0003 1��������

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B1050iA200,210¥6,200201910-202912

main43502-B1060iA202¥6,200202111-202912

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056iA202¥270202111-202912

main90049-12056iA200,210¥270201910-202111

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iA200,210¥220201910-202111

main90177-22001iA20#,210¥220202111-202912

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B1050iA200,210¥6,200201910-202912

main43502-B1060iA202¥6,200202111-202912

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056iA201,210¥270202111-202912

main90049-12056iA200,210¥270201910-202111

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iA200,210¥220201910-202111

main90177-22001iA20#,210¥220202111-202912

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B1030iA200,210¥3,820201910-202912

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21188iA200,210¥310201910-202912

43512DISC, FRONT

main43512-B1160iA200¥7,700201910-202912

main43512-B1170iA210¥10,000201910-202912

main43512-B1190iA202¥10,000202111-202912

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B1030iA200,210¥3,820201910-202912

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21188iA200,210¥310201910-202912

4802

14 parts on this diagram · 3 diagrams in section
