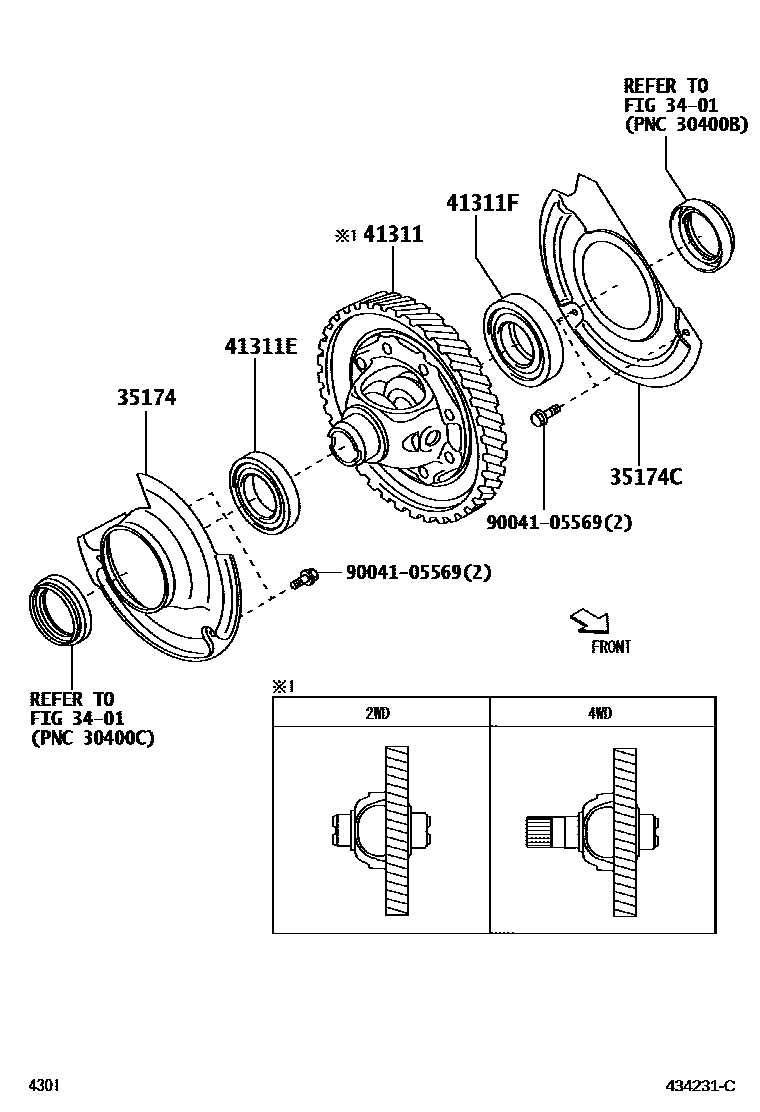

Toyota RAIZE — FRONT AXLE HOUSING & DIFFERENTIAL

3401

35174SEPARATOR, TRANSAXLE HOUSING OIL

main35174-B2040iA201,210¥1,630201910-202912

35174CSEPARATOR, TRANSAXLE HOUSING OIL, NO.2

main35174-B2050iA200,210¥1,630201910-202912

41311CASE, FRONT DIFFERENTIAL

main41310-B2310iA201¥43,600201910-202912

main41310-B2320iA210¥43,600201910-202912

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90043-63422iA200,210¥2,500201910-202912

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90043-63388iA200,210¥1,700201910-202912

9004105569

main90041-05569¥110

7 parts on this diagram · 1 diagram in section
