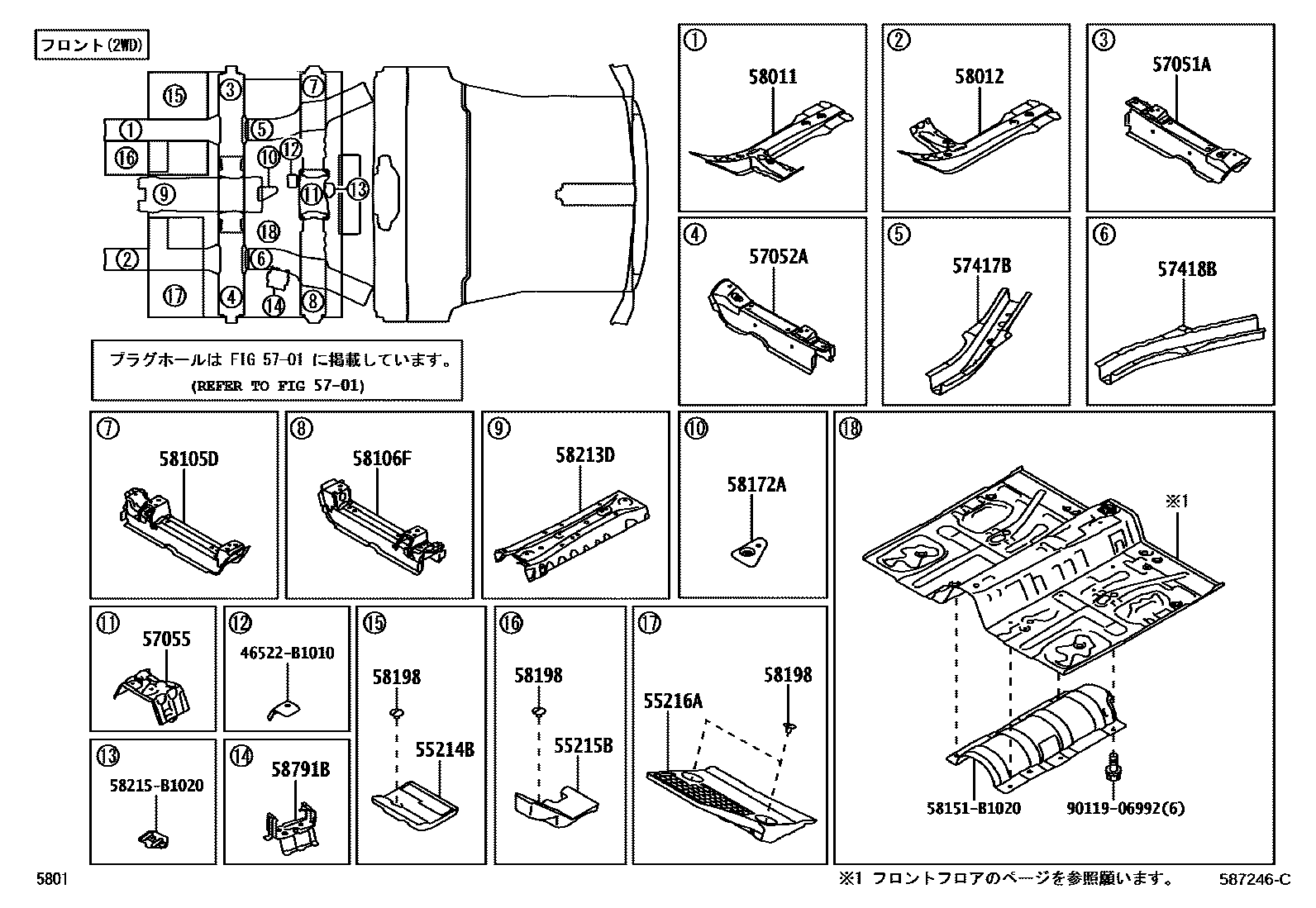

Toyota RAIZE — FLOOR PAN & LOWER BACK PANEL

0001 1����(2WD) 0002 1����(2WD) 0003 1����(4WD) 0004 1����(4WD) 0005 1����(��������) 0006 1��(2WD) 0007 1��(4WD) 0008 1��(��������) 0009 1������� 0010 1�������(��������)

55214BPAD, DASH PANEL INSULATOR, NO.2

main55214-B1060iA200,210¥870201910-202912

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-B1070iA200,210¥870201910-202912

55216APAD, DASH PANEL INSULATOR, NO.4

main55216-B1070iA200,210¥1,730201910-202912

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-B1070iA200,210¥6,500201910-202912

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-B1020iA200,210¥6,500201910-202912

57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5

main57055-B1040iA200¥3,820201910-202912

main57055-B1050iA210¥4,900201910-202912

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-B1030iA200,210¥5,100201910-202912

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-B1030iA200,210¥5,100201910-202912

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58025-B1010iA200,210¥5,900201910-202912

main58025-B1020iA202¥5,900202111-202912

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58026-B1010iA200,210¥5,900201910-202912

main58026-B1020iA202¥5,900202111-202912

58105DRETAINER SUB-ASSY, SEAT RAIL, REAR RH

main58105-B1020iA200,210¥6,500201910-202912

main58105-B1030iA202¥8,200202111-202912

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-B1020iA200,210¥6,500201910-202912

main58106-B1030iA202¥8,200202111-202912

58172APLATE, PARKING BRAKE MOUNTING

main46521-B1010iA200,210¥710201910-202912

58198CLIP, FOOTREST

main90044-67397iA200,210¥150201910-202912

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-B1070iA200,210¥6,500201910-202912

58791BCARRIER, JACK

main58791-B1010iA200,210¥1,250201910-202912

46522B1010

main46522-B1010¥210

58151B1020INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-B1020¥1,820

58215B1020REINFORCEMENT, FRONT FLOOR, FRONT

main58215-B1020¥250

9011906992

main90119-06992¥60

21 parts on this diagram · 10 diagrams in section
