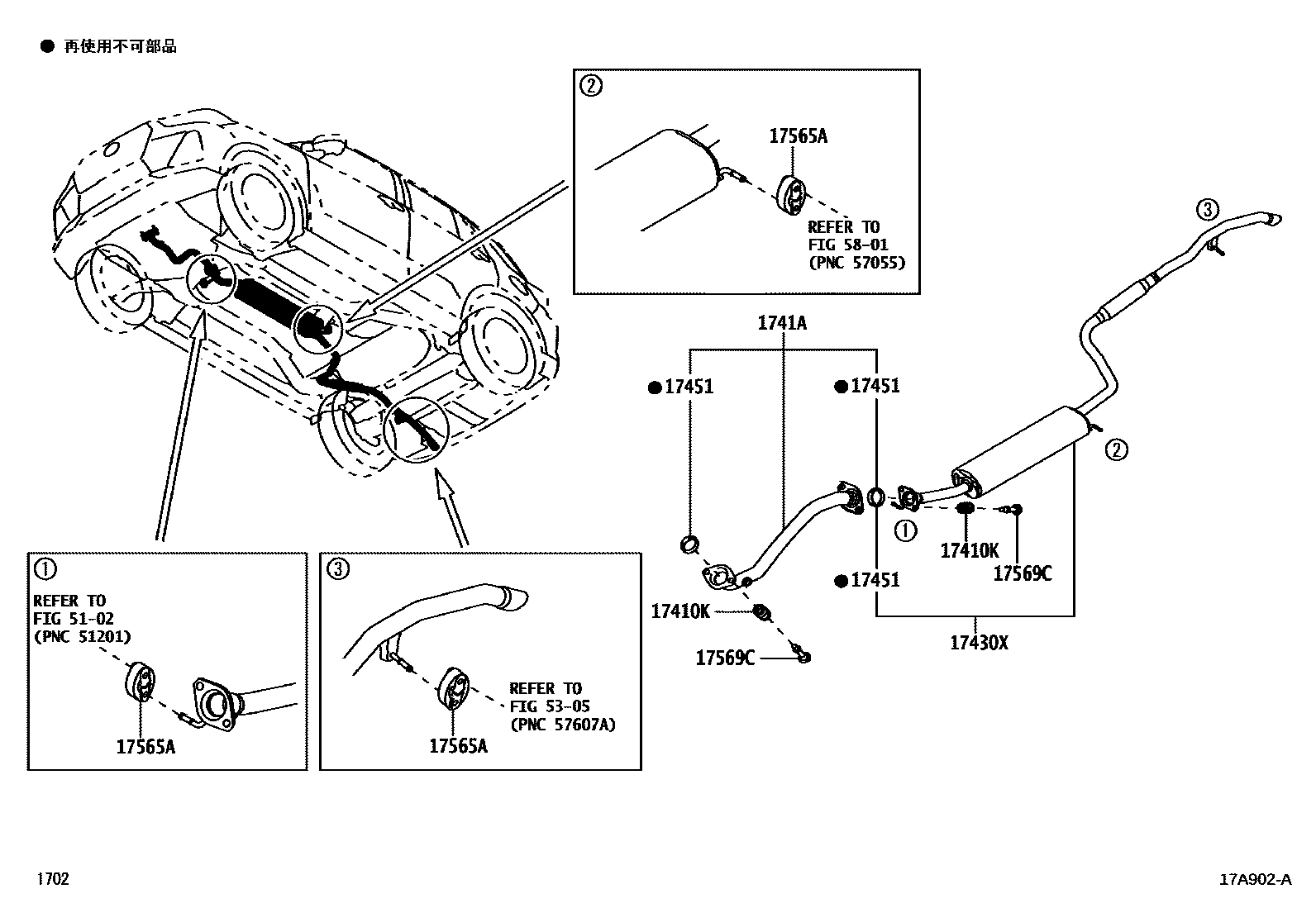

Toyota RAIZE — EXHAUST PIPE

0001 12WD 0002 14WD 0003 12WD

17410KSPRING, EXHAUST PIPE

main17152-97201i1KRVET..A200,210¥990201910-202111

main17152-97201iWAV#,1KRVET..A20#,210¥990202111-202912

1741APIPE SET, EXHAUST

main17410-B9780i1KRVET..A200¥8,200201910-202111

main17410-B9790i1KRVET..A210¥8,200201910-202111

main17410-B9790i1KRVET..A210¥8,200202111-202912

main17410-B9830iWAVE..A201¥8,200202111-202912

main17410-B9840iWAVEX..A202¥8,200202111-202912

17430XPIPE SET, EXHAUST TAIL

main17430-B9270i1KRVET..A200¥34,300201910-202111

main17430-B9280i1KRVET..A210¥35,000201910-202111

main17430-B9280i1KRVET..A210¥35,000202111-202912

main17430-B9290iWAVE..A201¥34,500202111-202912

main17430-B9300iWAVEX..A202¥35,100202111-202407

sub17430-B9301¥35,100

main17430-B9301iWAVEX..A202¥35,100202408-202912

17451GASKET, EXHAUST PIPE

main17451-B1010i1KRVET..A200,210¥1,650201910-202111

main17451-B1010iWAV#,1KRVET..A20#,210¥1,650202111-202912

17565SUPPORT, EXHAUST PIPE, NO.5

main17567-B1010iWAVEX..A202¥1,600202111-202912

17565ASUPPORT, EXHAUST PIPE, NO.4

main17567-B2020i1KRVET..A200,210¥770201910-202111

main17567-B2020iWAVEX..A202¥770202111-202912

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97201i1KRVET..A200,210¥570201910-202111

main17569-97201iWAV#,1KRVET..A20#,210¥570202111-202912

5102

5305

5801

10 parts on this diagram · 3 diagrams in section
