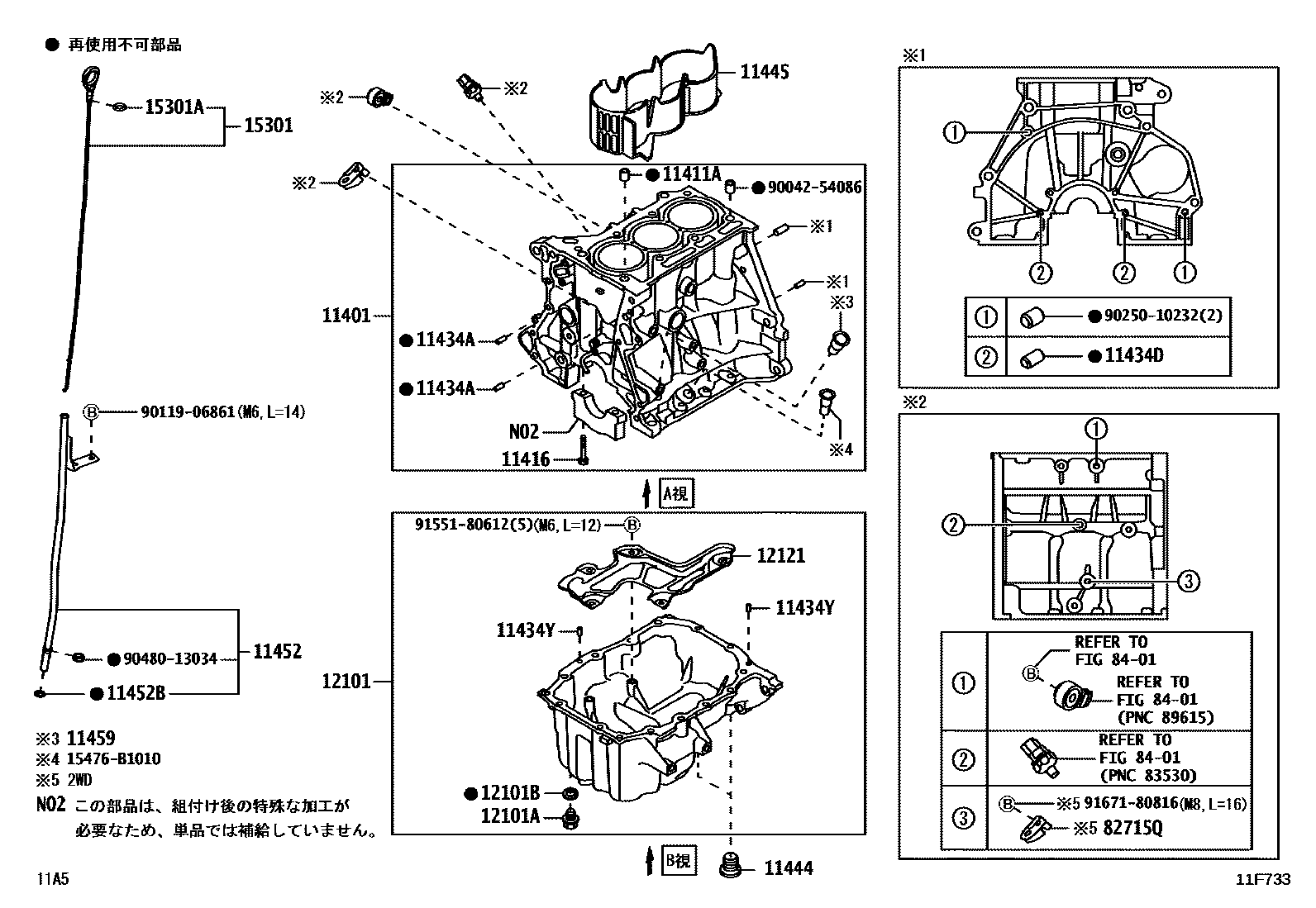

Toyota RAIZE — CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
�l�P�O�C�k���W�T
�l�P�O�C�k���U�W
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
�������P�S�C�O�a���U
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
�������P�S�C�O�a���U
11434YPIN, STRAIGHT(FOR OIL PAN)
11444PLUG, HOLE
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11459SUPPORT, OIL LEVEL GAGE GUIDE
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
82715QBRACKET, WIRING HARNESS CLAMP
8401
15476B1010PIPE, TURBO OIL OUTLET, NO.2
9004254086
9011906861
9025010232
9048013034
9155180612
9167180816
26 parts on this diagram · 6 diagrams in section
