Toyota RAIZE — BRAKE MASTER CYLINDER

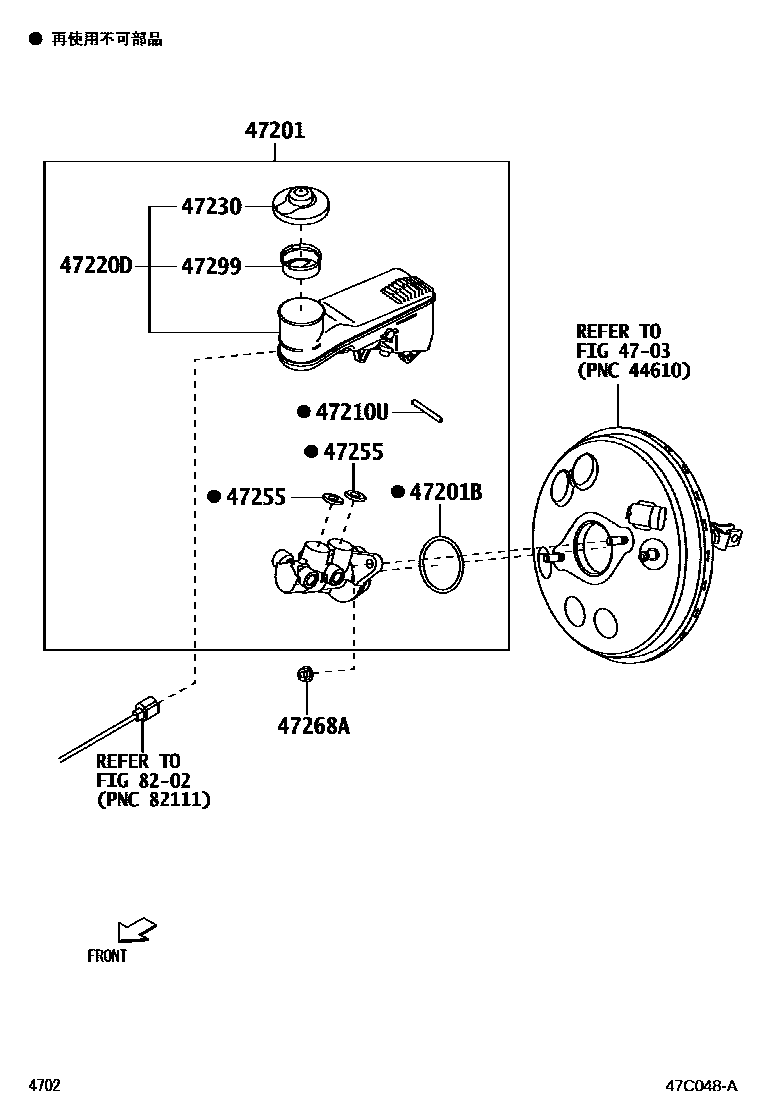

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B1210iA200,210¥17,000201910-202912

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iA200,210¥110201910-202912

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iA200,210¥150201910-202912

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-B1120iA200,210¥3,820201910-202912

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B4010iA200,210¥1,000201910-202912

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050iA200,210¥260201910-202912

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iA200,210¥170201910-202111

main90041-79124iA20#,210¥170202111-202912

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B2030iA200,210¥620201910-202912

8202

10 parts on this diagram · 1 diagram in section
