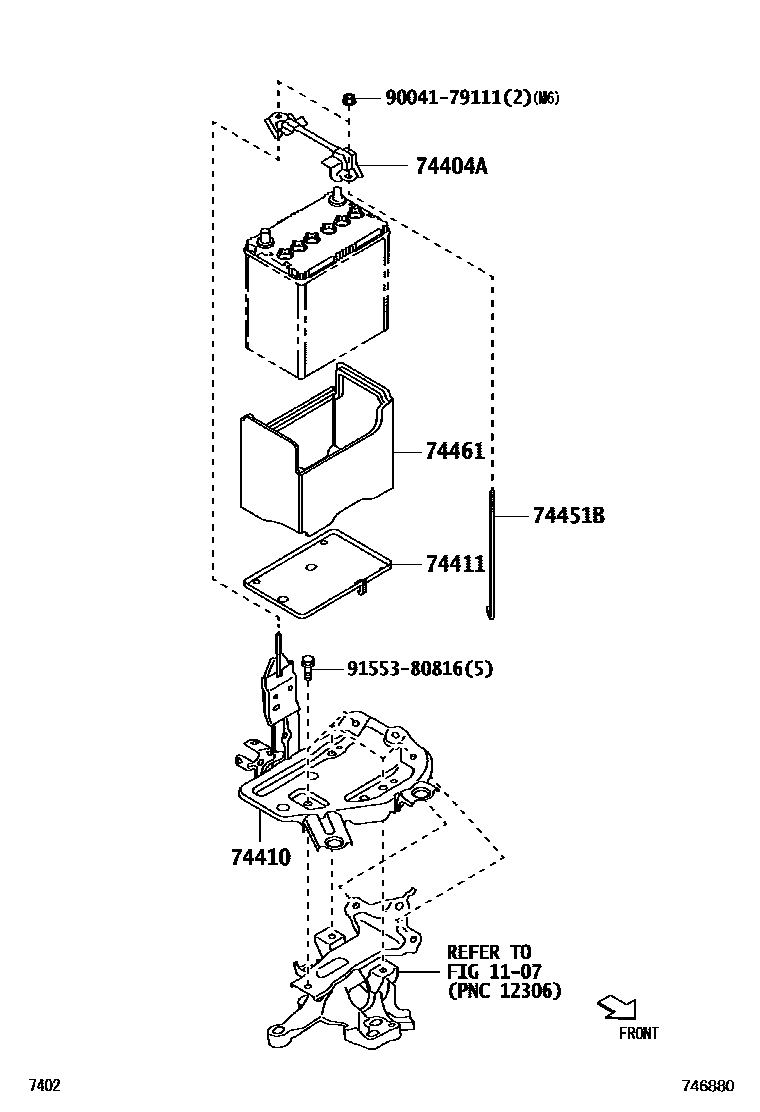

Toyota RAIZE — BATTERY CARRIER

0001 1STD 0002 1��������

1107

74404ACLAMP SUB-ASSY, BATTERY

main74404-B1060iA201,210¥980201910-202912

main74404-B1080iA202¥1,520202111-202912

74410CARRIER ASSY, BATTERY

main74410-B1020iA200,210¥2,370201910-202912

main74410-B1040iA202¥2,370202111-202912

74411CARRIER, BATTERY

main74411-B1020iA201,210..G,X¥1,110201910-202912

main74411-B1060iA201,210..Z¥1,110202111-202912

74451BBOLT, BATTERY CLAMP

main74451-B2050iA200,210¥260201910-202912

74461COVER, BATTERY

main74405-B1030iA201,210..Z¥1,730202111-202912

main74405-B1040iA200,210¥1,730201910-202912

9004179111

main90041-79111¥230

9155380816

main91553-80816¥80

8 parts on this diagram · 2 diagrams in section
