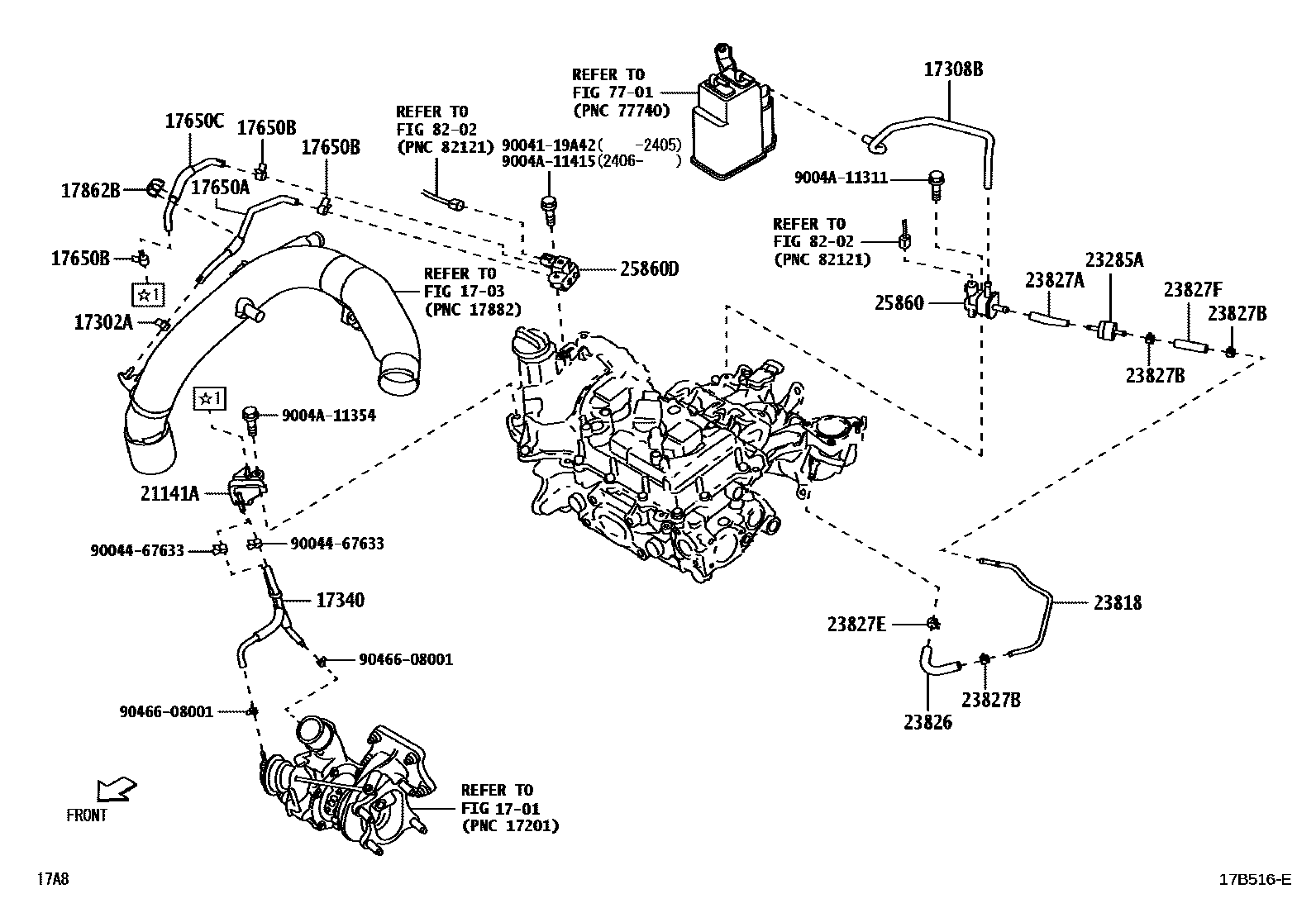

Toyota RAIZE — VACUUM PIPING

0001 1 0002 1W/EJECTOR 0003 1 0004 1W/EJECTOR

1701

1703

17302ACLIP, HOSE

main90044-67633i1KRVET..A250¥250202104-202608

17308BHOSE SUB-ASSY, VACUUM

main77754-BZ400iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

main77754-BZ410i1KRVET..A250202104-202608

17340HOSE ASSY, VACUUM SWITCHING VALVE

main17340-B1020i1KRVET..A250¥1,030202104-202411

main17340-BZ010i1KRVET..A250202411-202608

17650AHOSE(FOR VACUUM SWITCHING VALVE)

main17294-BZ010i1KRVET..A250202104-202608

17650BCLIP(FOR VACUUM SWITCHING VALVE HOSE)

main90044-67633i1KRVET..A250¥250202104-202608

17650CHOSE(FOR VACUUM SWITCHING VALVE TO MANIFOLD)

main17294-BZ020i1KRVET..A250202104-202608

17862BCLAMP, HOSE

main90464-00831i1KRVET..A250¥110202104-202608

21141ACHAMBER, SUCTION

main21141-B1010i1KRVET..A250¥980202104-202608

23285AVALVE, CHECK, NO.1

main90048-20012i1KRVET..A250¥1,910202104-202608

23818PIPE, FUEL VAPOR FEED

main23818-BZ010i1KRVET..A250202104-202608

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-BZ020i1KRVET..A250202104-202608

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-BZ140i1KRVET..A250202104-202608

main23827-BZ150iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)¥1,460202104-202608

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90044-67230i1KRVET..A250¥250202104-202608

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96135-41100i1KRVET..A250¥140202104-202608

sub96135-51100¥130

23827FHOSE, FUEL VAPOR FEED, NO.3

main23828-BZ010i1KRVET..A250202104-202608

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main90910-12280i1KRVET..A250¥0202104-202608

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main89470-B1040i1KRVET..A250¥4,330202104-202608

7701

8202

9004119A42

main90041-19A42¥140

9004467633

main90044-67633¥250

9004A11311

main9004A-11311¥110

9004A11354

main9004A-11354

9004A11415

main9004A-11415

9046608001

main90466-08001¥70
