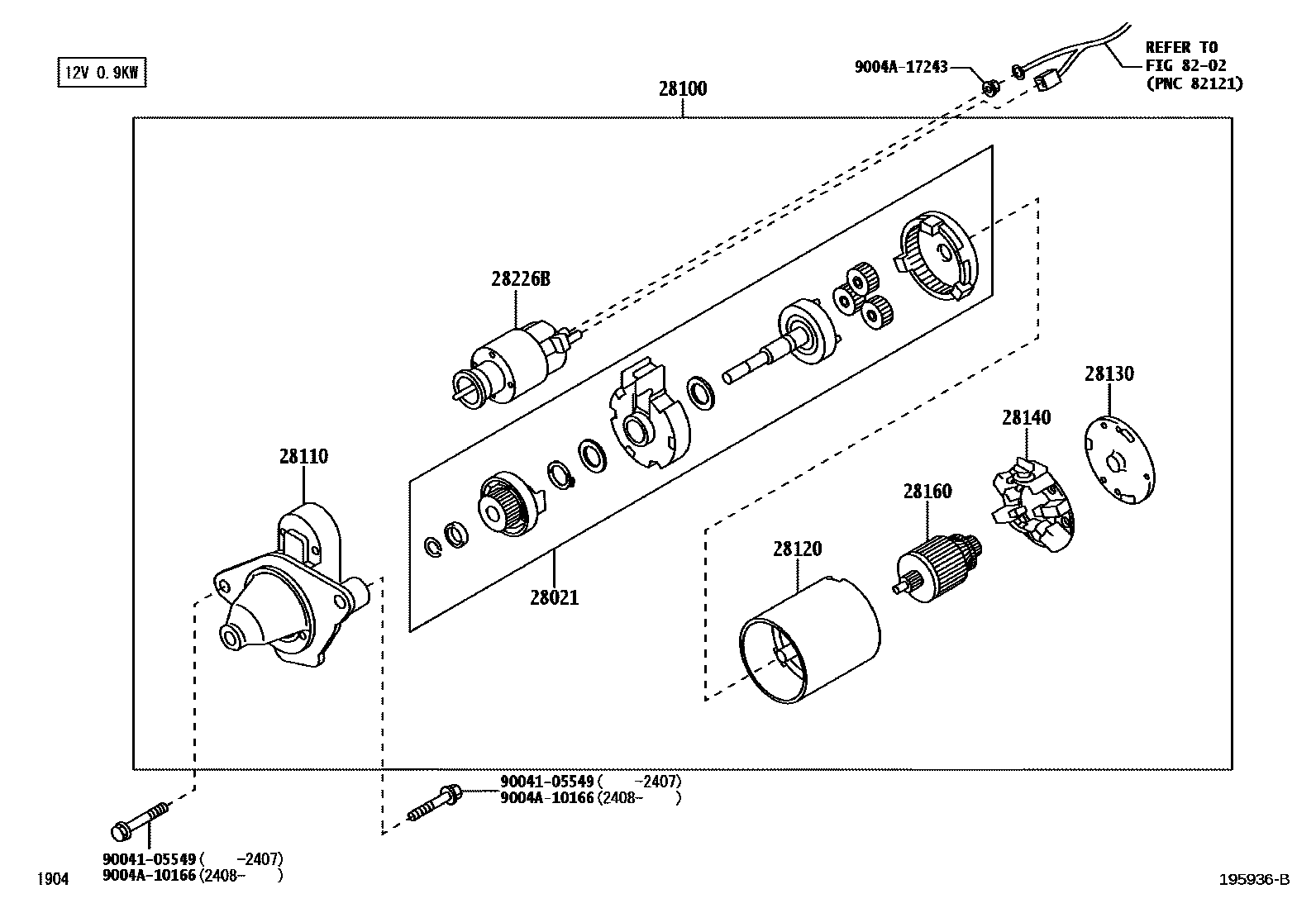

Toyota RAIZE — STARTER

0001 112V 0.9KW 0002 112V 0.8KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-BZ050i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

28100STARTER ASSY

main28100-BZ310i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-BZ180i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

28120YOKE ASSY, STARTER

main28120-BZ090i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-BZ140i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)¥1,280202104-202608

28140HOLDER ASSY, STARTER BRUSH

main28140-BZ140i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202104-202608

28160ARMATURE ASSY, STARTER

main28160-BZ040i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)¥12,400202104-202608

28226BSTARTER KIT, REPAIR SERVICE

main28226-BZ010i1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)¥7,500202104-202608

8202

9004105549

main90041-05549¥320

9004A10166

main9004A-10166

9004A17243

main9004A-17243

12 parts on this diagram · 2 diagrams in section
