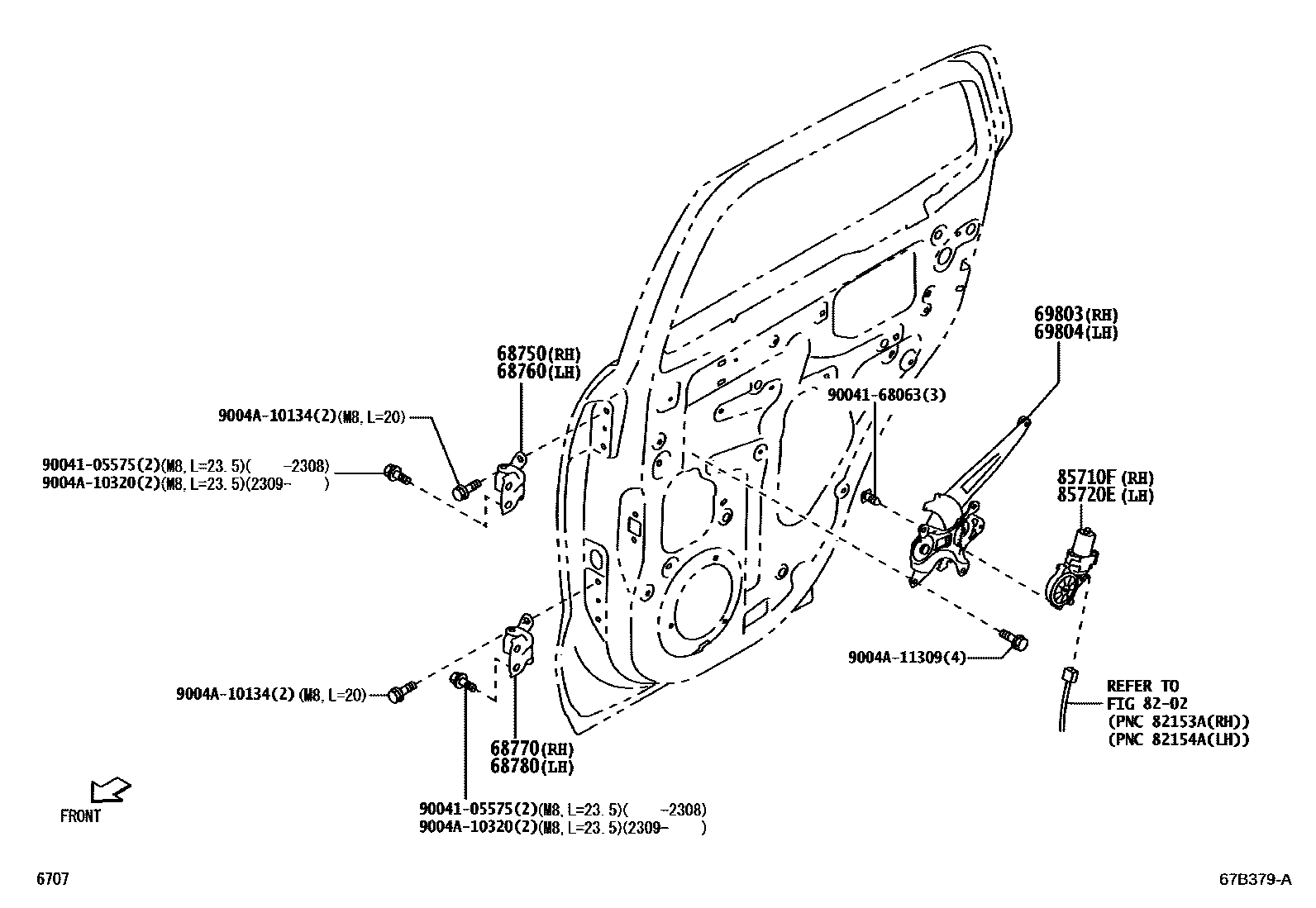

Toyota RAIZE — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

68770HINGE ASSY, REAR DOOR, LOWER RH

main68760-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

68780HINGE ASSY, REAR DOOR, LOWER LH

main68750-BZ140iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-BZ100iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-BZ100iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8202

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-BZ240iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-BZ270iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

9004105575

main90041-05575¥170

9004168063

main90041-68063¥100

9004A10134

main9004A-10134

9004A10320

main9004A-10320

9004A11309

main9004A-11309

14 parts on this diagram · 1 diagram in section
