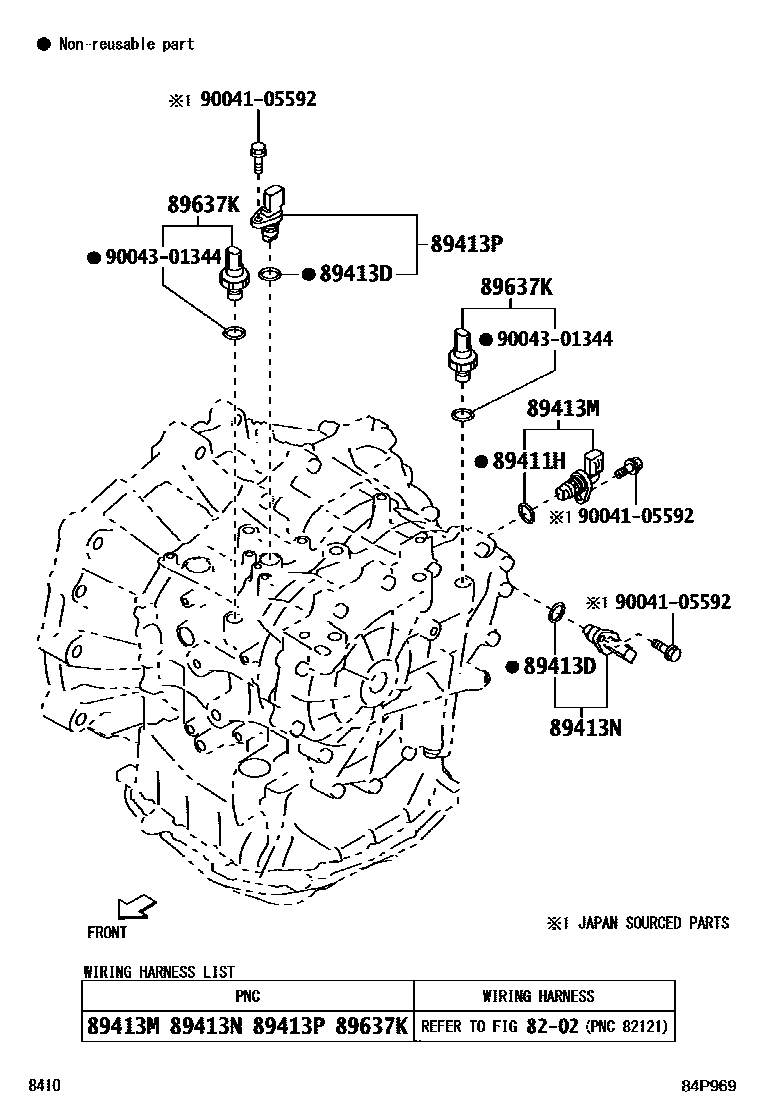

Toyota RAIZE — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0005 1

8202

89411HRING, O

main90043-01278iA251..L..GCC;A25#..CVT..(V,X)¥190202104-202608

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278iA251..L..GCC;A25#..CVT..(V,X)¥190202104-202608

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-B2030iA251..L..GCC;A25#..CVT..(V,X)¥3,650202104-202608

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-B2020iA251..L..GCC;A25#..CVT..(V,X)¥3,650202104-202608

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-B2020iA251..L..GCC;A25#..CVT..(V,X)¥3,650202104-202608

89637KSENSOR, OIL PRESSURE

main89637-B2030iA251..L..GCC;A25#..CVT..(V,X)¥4,000202104-202608

9004105592

main90041-05592¥110

9004301344

main90043-01344¥130

9 parts on this diagram · 2 diagrams in section
