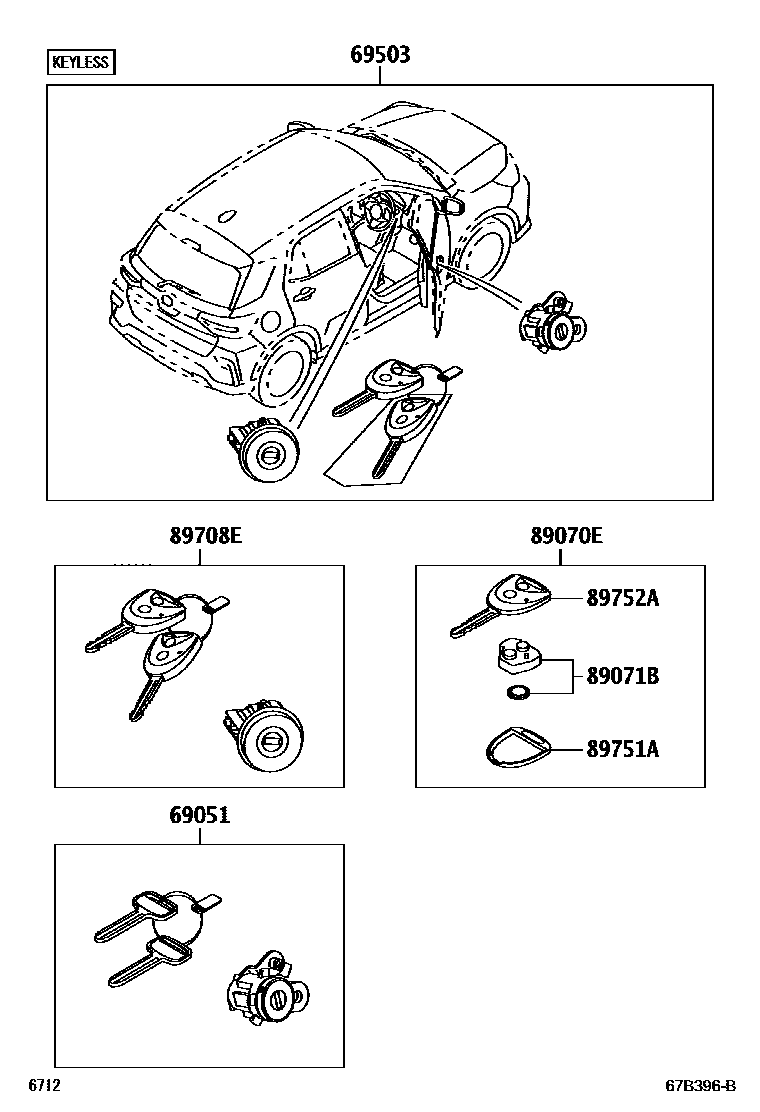

Toyota RAIZE — LOCK CYLINDER SET

0001 1KEYLESS(RHD) 0003 1KEYLESS(LHD) 0004 1KEYFREE(RHD) 0005 1KEYFREE(LHD)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-BZ360iA251..RHD..GEN202108-202607

69503CYLINDER SET, LOCK

main69005-BZ870iA251..RHD..GEN202108-202607

main69005-BZE10iA250..RHD;A251..IDN202104-202607

main69005-BZE20iA25#..LHD..V..(CHL,GEN,PHL)202108-202608

main69005-BZK20iA250..GCC;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-BZ460iA250..GCC;A251..(L,X)..(CHL,GCC,GEN,PHL)202108-202207

sub89070-BZ461

main89070-BZ461iA250..GCC;A251..(L,X)..(CHL,GCC,GEN,PHL)202208-202404

sub89070-BZ462

main89070-BZ462iA250..GCC;A251..L..GCC;A251..5F..(CHL,GEN,PHL);A251..CVT..X..(CHL,GCC,GEN,PHL)202405-202608

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-BZ130iA250..GCC;A251..(L,X)..(CHL,GCC,GEN,PHL)202108-202208

sub89071-BZ131

main89071-BZ131iA250..GCC;A251..(L,X)..(CHL,GCC,GEN,PHL)202208-202404

sub89071-BZ132

main89071-BZ132iA250..GCC;A251..L..GCC;A251..5F..(CHL,GEN,PHL);A251..CVT..X..(CHL,GCC,GEN,PHL)202405-202608

89708ECYLINDER SET, LOCK W/TRANSMITTER

main89708-BZ250iA250..GCC;A251..(L,X)..(CHL,GCC,GEN,PHL)202108-202207

sub89708-BZ251

main89708-BZ251iA250..GCC;A251..(L,X)..(CHL,GCC,GEN,PHL)202208-202404

sub89708-BZ252

main89708-BZ252iA250..GCC;A251..L..GCC;A251..5F..(CHL,GEN,PHL);A251..CVT..X..(CHL,GCC,GEN,PHL)202405-202608

89751ACOVER, TRANSMITTER HOUSING

main89751-BZ160iA250..GCC;A251..L..GCC;A251..5F..(CHL,GEN,PHL);A251..CVT..X..(CHL,GCC,GEN,PHL)¥610202108-202608

main89751-BZ210iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

89752ACASE, TRANSMITTER HOUSING

main89752-BZ260iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

main89752-BZ290iA250..GCC;A251..L..GCC;A251..5F..(CHL,GEN,PHL);A251..CVT..X..(CHL,GCC,GEN,PHL)202108-202608

7 parts on this diagram · 4 diagrams in section
