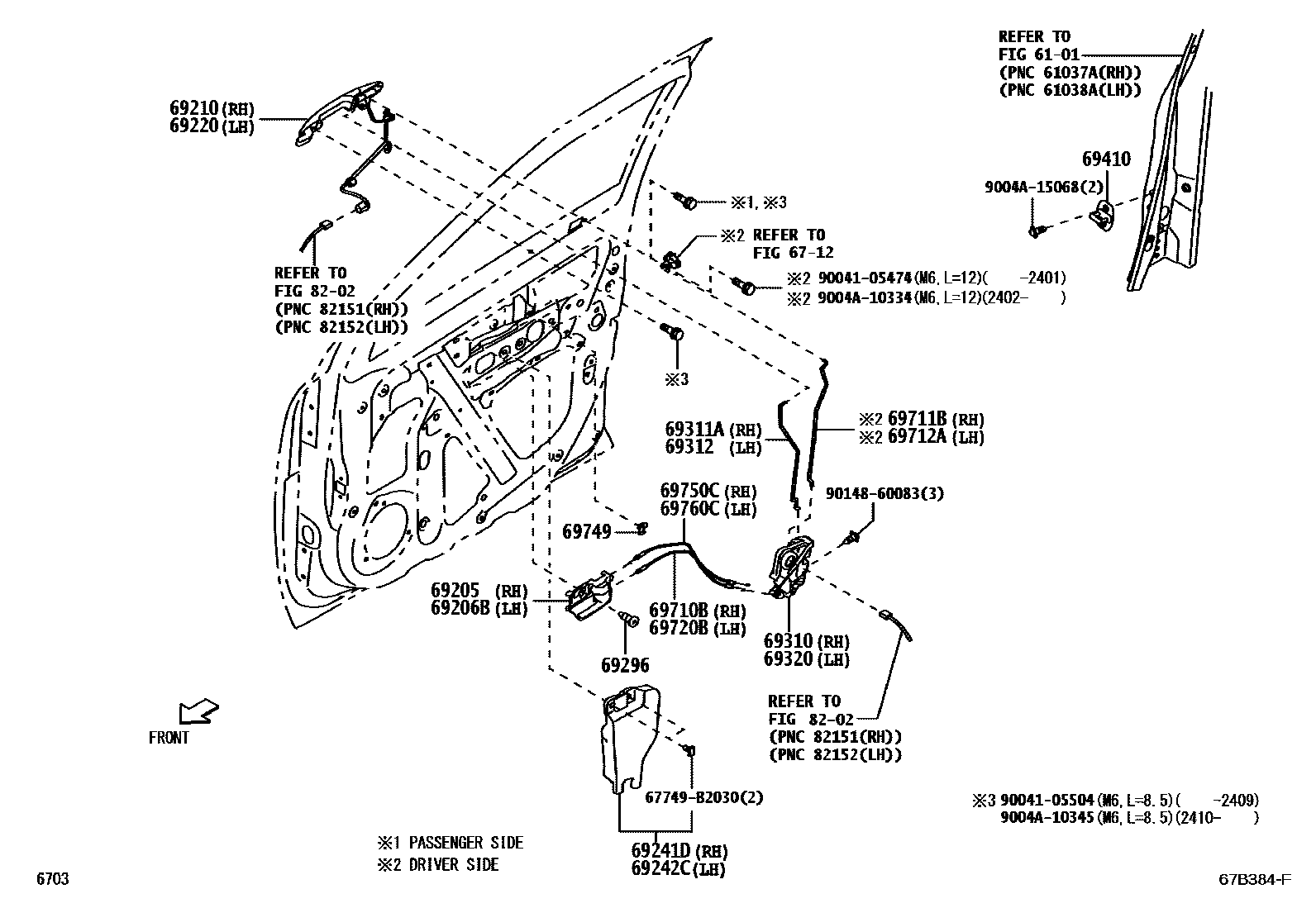

Toyota RAIZE — FRONT DOOR LOCK & HANDLE

6101

6712

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-BZ150-C0iA251..5F..L;A251..X..PHL;A251..L..GCC202108-202608

BLACK,TRIM2#

main69270-BZ160-C0iA250;A251..V..PHL;A251..(V,X)..(CHL,GCC,GEN,IDN)202104-202608

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-BZ150-C0iA251..5F..L;A251..X..PHL;A251..L..GCC202108-202608

BLACK,TRIM2#

main69280-BZ160-C0iA250;A251..V..PHL;A251..(V,X)..(CHL,GCC,GEN,IDN)202104-202608

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-BZ340-A0iA251..RHD..GEN202108-202607

WHITE,W09

main69210-BZ340-A1iA251..RHD..GEN202108-202607

WHITE PEARL SE.,W25

main69210-BZ340-B0iA251..RHD..GEN202108-202607

SILVER ME.,S28

main69210-BZ340-B1iA251..RHD..GEN202108-202607

GRAY ME.,1G3

main69210-BZ340-C0iA251..RHD..GEN202108-202607

BLACK,X13

main69210-BZ340-D0iA251..RHD..GEN202108-202607

RED,R40

main69210-BZ340-F0iA251..RHD..GEN202108-202607

YELLOW SE.,Y13

main69210-BZ340-J0iA251..RHD..GEN202108-202607

TURQUOISE M.M.,B86

main69210-BZ520-A0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

WHITE,W09

main69210-BZ520-A0iA250..V..GCC202110-202608

WHITE,W09 ,XJ7

main69210-BZ520-A1iA250..V..GCC202110-202608

WHITE PEARL SE.,W25 ,XJ5

main69210-BZ520-A1iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

WHITE PEARL SE.,W25

main69210-BZ520-B0iA250..V..GCC202110-202608

SILVER ME.,S28 ,XK4

main69210-BZ520-B0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

SILVER ME.,S28

main69210-BZ520-B1iA250..GCC;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

GRAY ME.,1G3

main69210-BZ520-C0iA250..GCC;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

BLACK,X13

main69210-BZ520-D0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

RED,R40

main69210-BZ520-D0iA250..V..GCC202110-202608

RED,R40 ,XJ9

main69210-BZ520-F0iA250..V..GCC202110-202608

YELLOW SE.,XK1 ,Y13

main69210-BZ520-F0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

YELLOW SE.,Y13

main69210-BZ520-J0iA250..V..GCC202110-202608

TURQUOISE M.M.,B86 ,XJ8

main69210-BZ520-J0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

TURQUOISE M.M.,B86

main69210-BZ540-A1iA251..IDN202104-202606

WHITE,W09 ,XJ7

main69210-BZ540-B0iA251..IDN202104-202606

SILVER ME.,S28 ,XK4

main69210-BZ540-B2iA251..IDN202104-202606

GRAY ME.,1G3

main69210-BZ540-C0iA251..IDN202104-202606

BLACK,X13

main69210-BZ540-D1iA251..IDN202104-202606

RED,R40 ,XJ9

main69210-BZ540-F0iA251..IDN202104-202606

YELLOW SE.,XK1 ,Y13

main69210-BZ540-J1iA251..IDN202104-202606

TURQUOISE M.M.,B86 ,XJ8

main69210-BZ550iA250..RHD202104-202607

PLATED

main69210-BZ560iA25#..LHD..V..(CHL,GEN,PHL)202108-202608

PLATED

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-BZ450-A0iA251..RHD..GEN202108-202607

WHITE,W09

main69220-BZ450-A1iA251..RHD..GEN202108-202607

WHITE PEARL SE.,W25

main69220-BZ450-B0iA251..RHD..GEN202108-202607

SILVER ME.,S28

main69220-BZ450-B1iA251..RHD..GEN202108-202607

GRAY ME.,1G3

main69220-BZ450-C0iA251..RHD..GEN202108-202607

BLACK,X13

main69220-BZ450-D0iA251..RHD..GEN202108-202607

RED,R40

main69220-BZ450-F0iA251..RHD..GEN202108-202607

YELLOW SE.,Y13

main69220-BZ450-J0iA251..RHD..GEN202108-202607

TURQUOISE M.M.,B86

main69220-BZ510-A0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

WHITE,W09

main69220-BZ510-A0iA250..V..GCC202110-202608

WHITE,W09 ,XJ7

main69220-BZ510-A1iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

WHITE PEARL SE.,W25

main69220-BZ510-A1iA250..V..GCC202110-202608

WHITE PEARL SE.,W25 ,XJ5

main69220-BZ510-B0iA250..V..GCC202110-202608

SILVER ME.,S28 ,XK4

main69220-BZ510-B0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

SILVER ME.,S28

main69220-BZ510-B1iA250..GCC;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

GRAY ME.,1G3

main69220-BZ510-C0iA250..GCC;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

BLACK,X13

main69220-BZ510-D0iA250..V..GCC202110-202608

RED,R40 ,XJ9

main69220-BZ510-D0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

RED,R40

main69220-BZ510-F0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

YELLOW SE.,Y13

main69220-BZ510-F0iA250..V..GCC202110-202608

YELLOW SE.,XK1 ,Y13

main69220-BZ510-J0iA250..V..GCC202110-202608

TURQUOISE M.M.,B86 ,XJ8

main69220-BZ510-J0iA251..LHD..5F;A251..LHD..CVT..X..GEN;A25#..CVT..(L,X)..(CHL,GCC,PHL)202108-202608

TURQUOISE M.M.,B86

main69220-BZ530-A1iA251..IDN202104-202606

WHITE,W09 ,XJ7

main69220-BZ530-B0iA251..IDN202104-202606

SILVER ME.,S28 ,XK4

main69220-BZ530-B2iA251..IDN202104-202606

GRAY ME.,1G3

main69220-BZ530-C0iA251..IDN202104-202606

BLACK,X13

main69220-BZ530-D1iA251..IDN202104-202606

RED,R40 ,XJ9

main69220-BZ530-F0iA251..IDN202104-202606

YELLOW SE.,XK1 ,Y13

main69220-BZ530-J1iA251..IDN202104-202606

TURQUOISE M.M.,B86 ,XJ8

main69220-BZ540iA250..RHD202104-202607

PLATED

main69220-BZ550iA25#..LHD..V..(CHL,GEN,PHL)202108-202608

PLATED

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main75787-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main75788-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69296SCREW, DOOR INSIDE HANDLE

main9004A-16093iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69310LOCK ASSY, FRONT DOOR, RH

main69310-BZ360iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main69310-BZ530iA25#..RHD202104-202607

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-BZ120iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-BZ120iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69320LOCK ASSY, FRONT DOOR, LH

main69320-BZ320iA25#..RHD202104-202607

main69320-BZ490iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥1,040202104-202608

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-BZ130iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-BZ140iA25#..RHD202104-202607

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-BZ100iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-BZ130iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69749CLAMP, FRONT DOOR LOCK LINK

main69749-BZ100iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-BZ130iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-BZ130iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8202

67749B2030CLIP, DOOR TRIM MOULDING

main67749-B2030¥120

9004105474

main90041-05474¥110

9004105504

main90041-05504¥110

9004A10334

main9004A-10334

9004A10345

main9004A-10345

9004A15068

main9004A-15068

9014860083

main90148-60083¥60

29 parts on this diagram · 1 diagram in section
