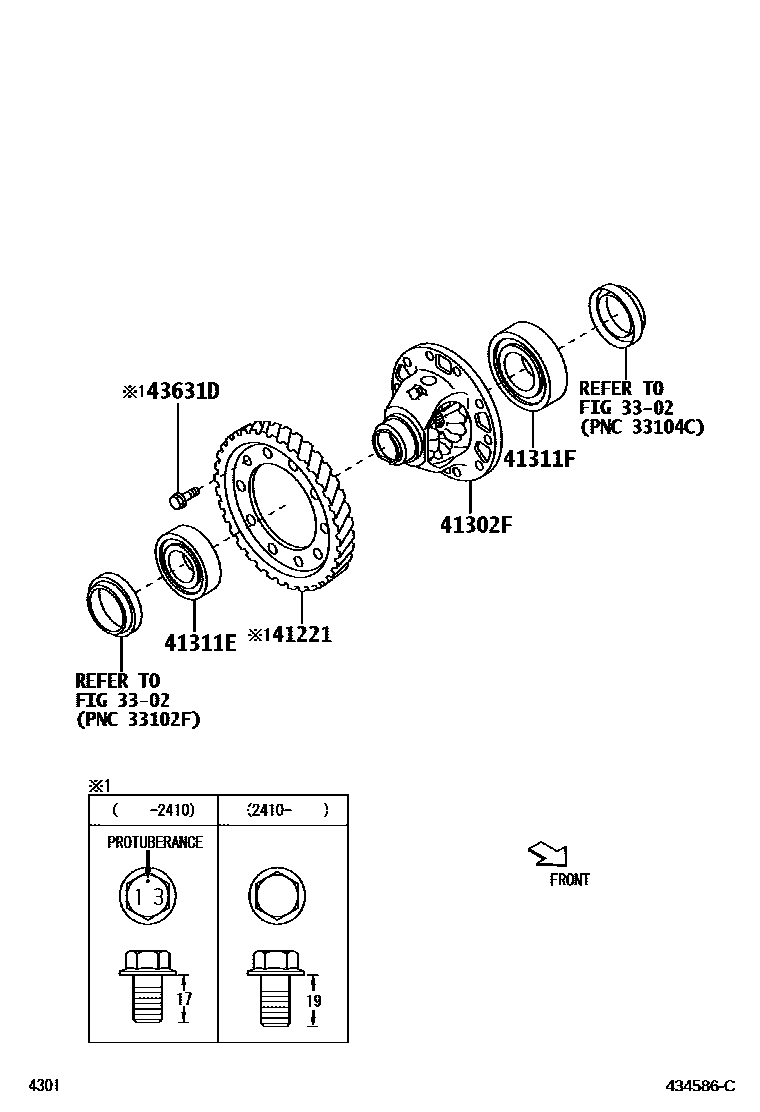

Toyota RAIZE — FRONT AXLE HOUSING & DIFFERENTIAL

3302

41221GEAR, FRONT DIFFERENTIAL RING

main41221-BZ320iA25#..5F202104-202410

sub41221-BZ321

main41221-BZ321iA25#..5F202410-202608

41302FCASE SUB-ASSY, FRONT DIFFERENTIAL

main41301-BZ060iA250..5F202104-202607

main41301-BZ070iA251..5F202104-202608

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main9004A-36123iA25#..5F202104-202608

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main9004A-36124iA25#..5F202104-202608

43631DBOLT, HEXAGON (FOR DIFFERENTIAL CASE)

main9004A-10120iA25#..5F202104-202410

main9004A-10296iA25#..5F202410-202608

6 parts on this diagram · 1 diagram in section
