Toyota RAIZE — CYLINDER HEAD

0001 1CYLINDER HEAD COVER 0002 1CYLINDER HEAD 0003 1CYLINDER HEAD COVER 0004 1CYLINDER HEAD(L/EGR)

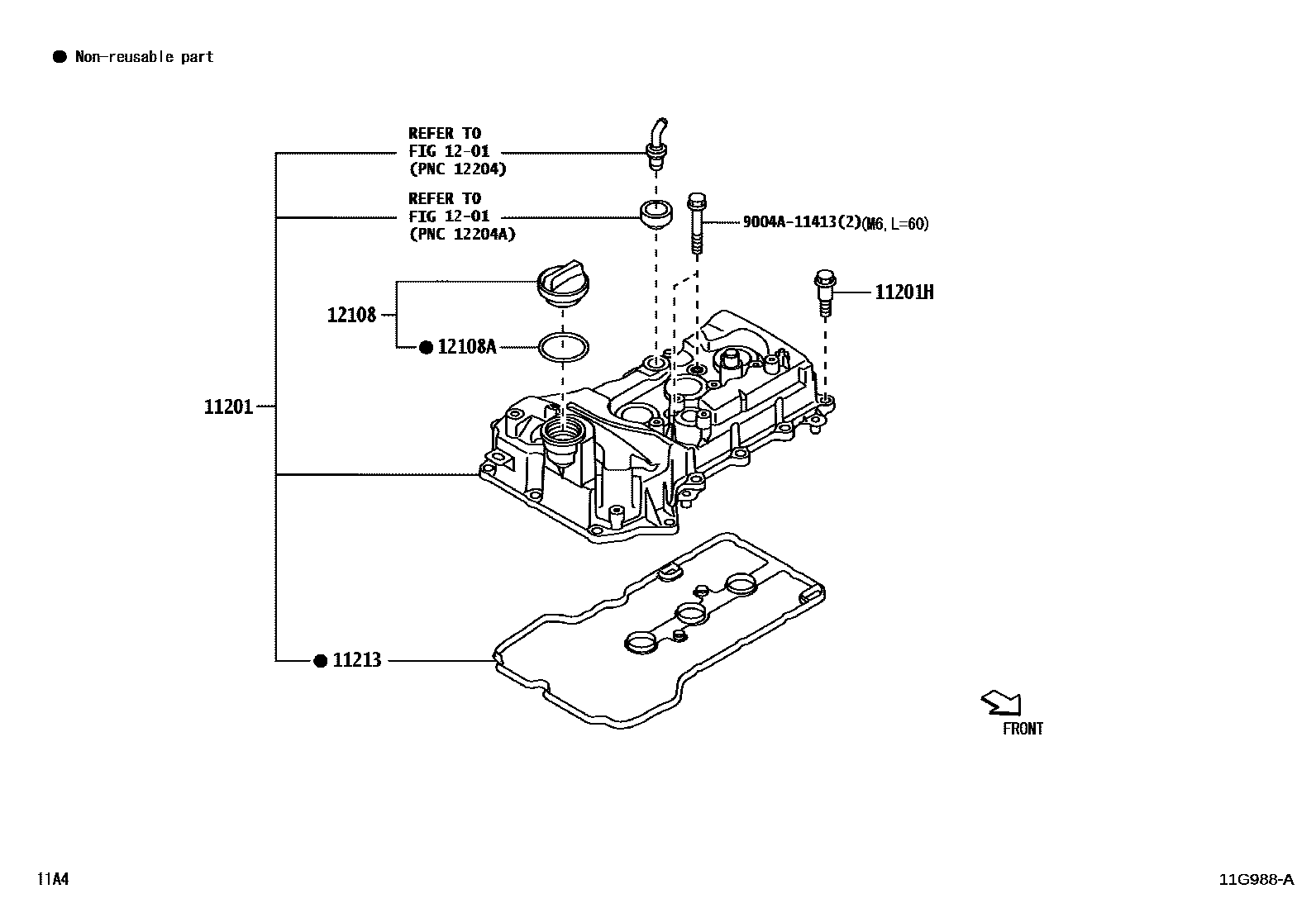

11201COVER SUB-ASSY, CYLINDER HEAD

main11210-B1041i1KRVET..A250¥17,400202104-202608

main11210-B1050iWAVE..A251¥17,100202104-202209

main11210-BZ090iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

11201HBOLT(FOR CYLINDER HEAD COVER)

main90041-09275iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)¥140202104-202608

M6,L=23.5

main90109-06384i1KRVET..A250¥80202104-202411

M6,L=12

main90109-T0055i1KRVET..A250202411-202608

11213GASKET, CYLINDER HEAD COVER

main11213-B1031i1KRVET..A250¥1,330202104-202608

main11213-B1050iWAVE..A251¥1,490202104-202209

main11213-BZ150iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010iWAVE..A251¥640202104-202209

main12180-38010i1KRVET..A250¥640202104-202608

main12180-BZ060iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)¥890202209-202608

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1KRVET..A250¥120202104-202608

main90430-35001iWAVE..A251¥120202104-202209

main90430-37140iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)¥210202209-202608

9004A11413

main9004A-11413

7 parts on this diagram · 4 diagrams in section
