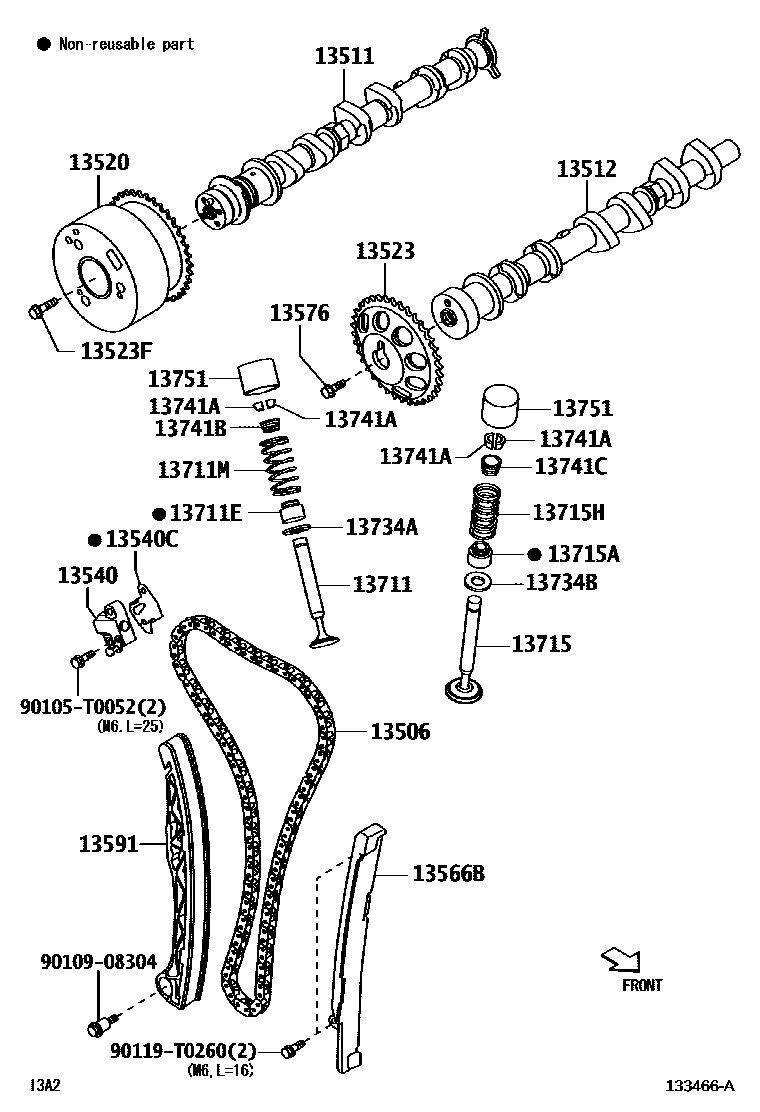

Toyota RAIZE — CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13512CAMSHAFT, NO.2
sub13512-BZ080
main13512-BZ080iWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202209-202608
13520SPROCKET ASSY, CAMSHAFT TIMING
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13566BGUIDE, TIMING CHAIN
13576BOLT, CAMSHAFT TIMING GEAR
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13751LIFTER, VALVE
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
90105T0052
main90105-T0052
9010908304
90119T0260
main90119-T0260
26 parts on this diagram · 2 diagrams in section
