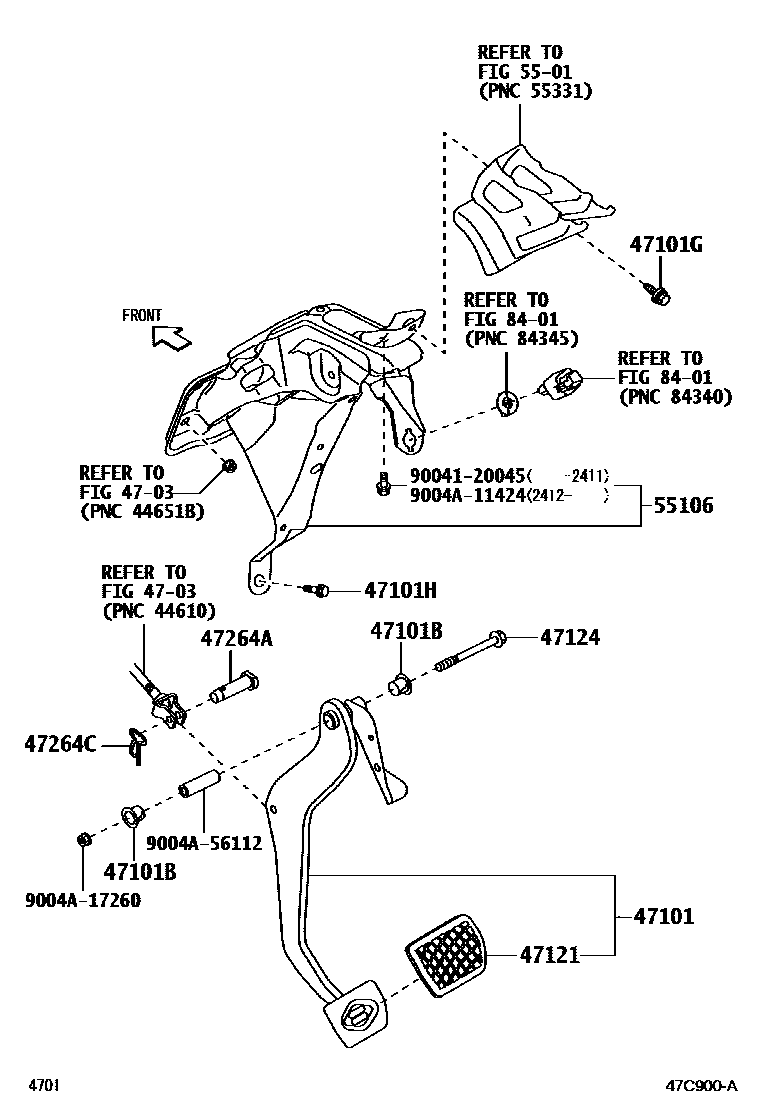

Toyota RAIZE — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47110-BZ530iA25#..RHD..CVT202104-202607

main47110-BZ540iA25#..RHD..5F202104-202607

main47110-BZ550iA250..LHD..CVT;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202108-202608

main47110-BZ560iA25#..LHD..5F202108-202608

47101BBUSH(FOR BRAKE PEDAL)

main9004A-38094iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥110202104-202608

47101GBOLT, BRAKE PEDAL STOP, NO.1

main9004A-11380iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47101HBOLT, BRAKE PEDAL STOP, NO.2

main9004A-11381iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47121PAD, BRAKE PEDAL

main47121-BZ070iA251..L..GCC;A25#..CVT..(V,X)202104-202608

main47121-BZ080iA25#..5F202104-202412

sub47121-BZ081

main47121-BZ081iA25#..5F202501-202608

47124SHAFT, BRAKE PEDAL

main9004A-10281iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥110202104-202608

47264APIN(FOR PUSH ROD)

main90042-40151iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥160202104-202608

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥170202104-202608

5501

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-BZ520iA25#..RHD202104-202607

main55106-BZ530iA25#..LHD202108-202112

sub55106-BZ531

main55106-BZ531iA250..LHD;A251..LHD..5F;A251..LHD..CVT..X..GEN;A251..CVT..(CHL,GCC,PHL)202201-202608

8401

9004120045

main90041-20045¥170

9004A11424

main9004A-11424

9004A17260

main9004A-17260¥120

9004A56112

main9004A-56112¥310

16 parts on this diagram · 3 diagrams in section
