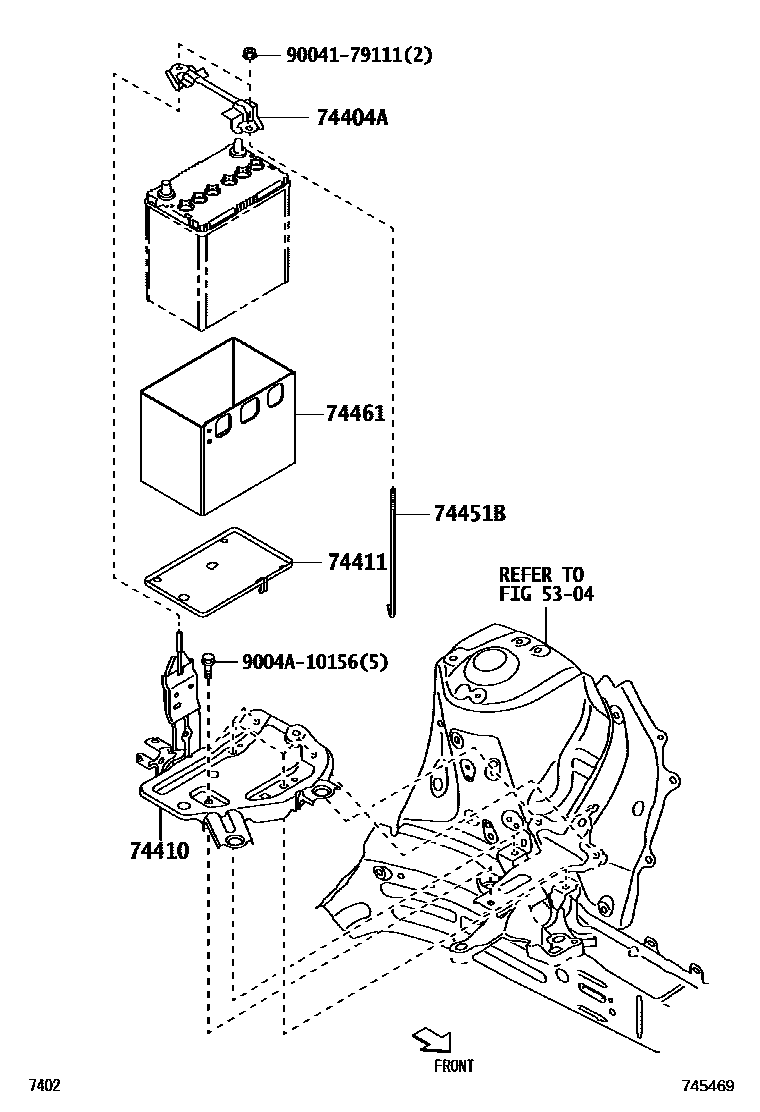

Toyota RAIZE — BATTERY CARRIER

5304

74404ACLAMP SUB-ASSY, BATTERY

main74404-BZ190iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

74410CARRIER ASSY, BATTERY

main74410-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

74411CARRIER, BATTERY

main74411-BZ160iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

74451BBOLT, BATTERY CLAMP

main74451-BZ150iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

74461COVER, BATTERY

main74405-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

9004179111

main90041-79111¥230

9004A10156

main9004A-10156

8 parts on this diagram · 1 diagram in section
