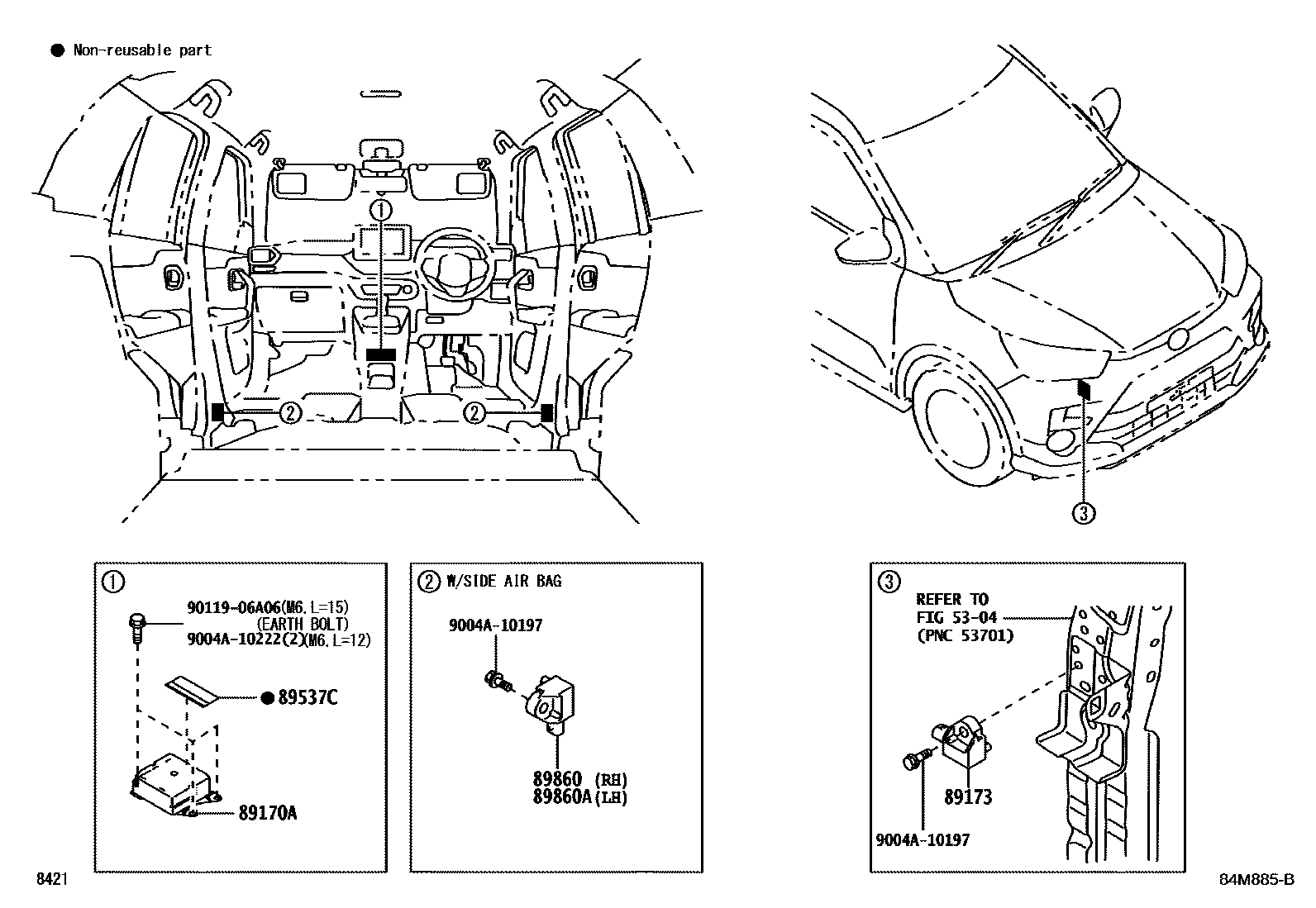

Toyota RAIZE — AIR BAG

0001 1 0002 1

5304

89170ACOMPUTER ASSY, AIRBAG

main89170-BZ660iA251..5F;A250..IDN;A251..CVT..X..CHL;A251..CVT..(V,X)..(GEN,IDN,PHL)202104-202608

main89170-BZ670iA25#..GCC202110-202608

main89170-BZ680iA251..V..CHL;A250..GEN,PHL202108-202608

89173SENSOR, AIRBAG, FRONT

main89173-B2240iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)¥7,400202104-202608

89537CCOVER, COMPUTER

main19114-B2060iA25#¥120202104-202310

main19114-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202311-202608

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-B1120iA251..V..CHL;A250..GEN,PHL¥7,600202108-202608

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89860-B1120iA251..V..CHL;A250..GEN,PHL¥7,600202108-202608

9004A10197

main9004A-10197

9004A10222

main9004A-10222

9011906A06

main90119-06A06¥60

9 parts on this diagram · 2 diagrams in section
