Toyota PROBOX/SUCCEED — WIRING & CLAMP

0001 1�������� 0002 1�������� 0003 1����� 0004 1����� 0005 1����� 0006 1������������ 0007 1��� 0008 1��� & ��� 0009 1��� & ��� 0010 1��������� 0011 1����� & ������ 0012 1����� & ������ 0013 1���� 1/2 0014 1���� 2/2

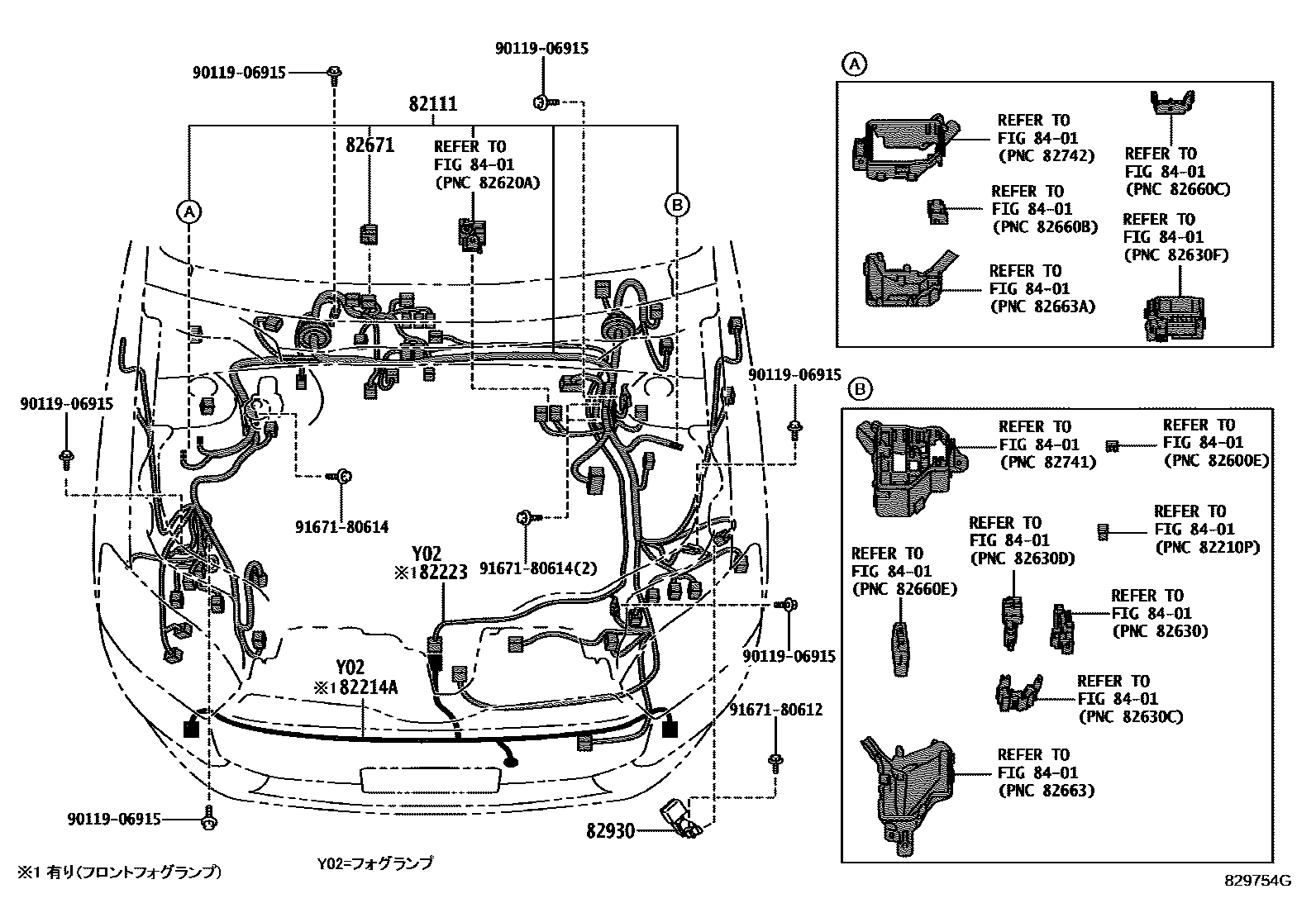

82111WIRE, ENGINE ROOM MAIN

main82111-52Y50iNCP160,NSP160¥114,000201409-201410

sub82111-5DE20¥138,000

main82111-5CZ50iNHP160¥117,000201812

main82111-5DE20iNCP165¥138,000201409-201609

main82111-5DP80iNCP160¥105,000201609-201812

main82111-5DP81iNCP165,NSP160¥105,000201812-202008

main82111-5DQ00iNCP160¥115,000201609-201812

main82111-5DQ01iNCP160¥115,000201812-202008

main82115-52790iNCP160¥86,800202008-202201

main82115-52791iNSP160¥78,900202201

main82115-52800iNCP165¥78,900202008

main82115-52810iNCP160¥95,300202008-202112

sub82115-52811¥86,500

main82115-52811iNCP160¥86,500202201

82214AWIRE, LAMP

82223WIRE, SWITCH

main82223-52070¥3,400

82671BLOCK, JUNCTION

main82671-30350iNHP160¥570201812

main82671-30360iNCP16#,NSP160¥570201409-202008

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-30060iNCP165..SUCD¥4,540201409-202008

8401

9011906915

main90119-06915¥60

9167180612

main91671-80612¥60

9167180614

main91671-80614¥60

9 parts on this diagram · 14 diagrams in section
