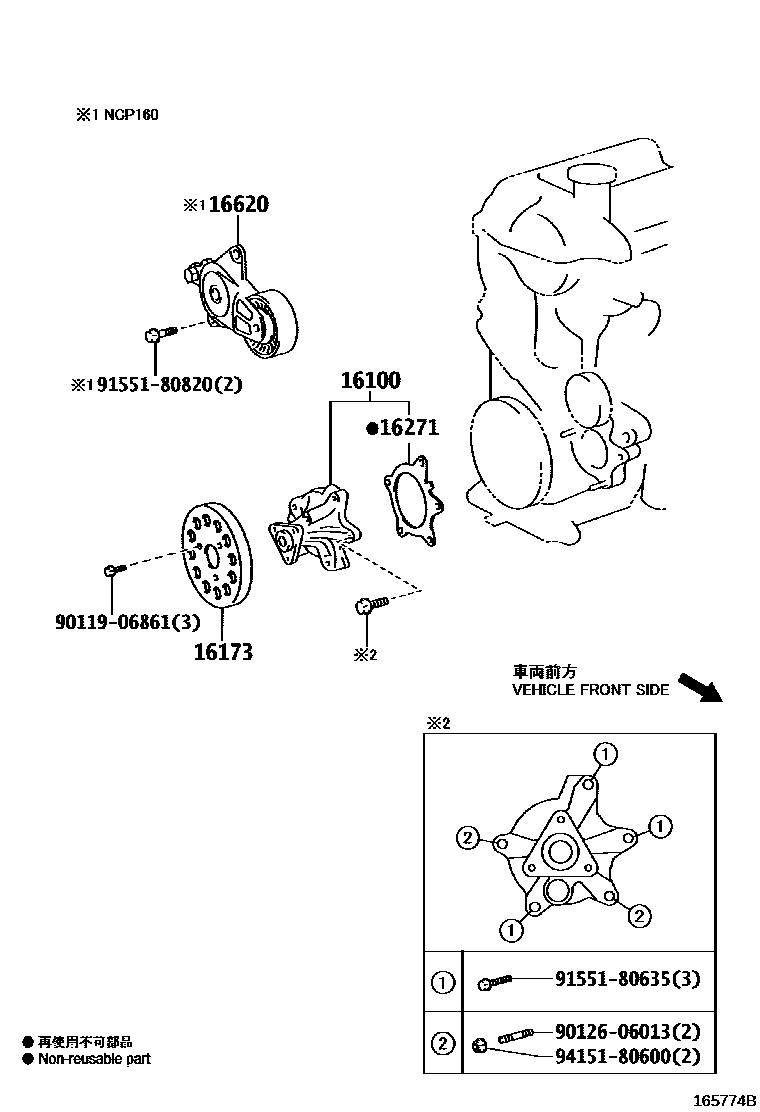

Toyota PROBOX/SUCCEED — WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-29157i1NZFE..NCP16#¥8,400201409-201812

sub16100-29158¥8,400

main16100-29158i1NZFE..NCP16#¥8,400201812

main16100-80010i1NRFE..NSP160¥7,900201409-202107

sub16100-80019¥7,900

main16100-80019i1NRFE..NSP160¥7,900202107-202108

sub16100-80020¥7,900

main16100-80020i1NRFE..NSP160¥7,900202108

main161A0-39035i1NZFXE..NHP160¥15,000201812

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NCP16#¥2,970201409-201807

sub16173-21021¥2,250

main16173-21021i1NZFE..NCP16#..PROB¥2,250201808

main16173-21021i1NZFE..NCP16#..SUCD¥2,250201808-202007

16271GASKET, WATER PUMP

main16271-21021i1NZFE..NCP16#¥380201409

main16271-37020i1NZFXE..NHP160¥470201812

main16271-47031i1NRFE..NSP160¥490201409

16620TENSIONER ASSY, V-RIBBED BELT

main16620-21010i1NZFE..NCP160¥13,400201409-201903

sub16620-21011¥10,100

main16620-21011i1NZFE..NCP160..PROB¥10,100201904

main16620-21011i1NZFE..NCP160..SUCD¥10,100201904-202007

main16620-47030i1NRFE..NSP160¥13,500201409-202006

sub16620-47031¥10,100

main16620-47031i1NRFE..NSP160¥10,100202007

9011906861

main90119-06861¥60

9012606013

main90126-06013¥130

9155180635

main91551-80635¥80

9155180820

main91551-80820¥80

9415180600

main94151-80600¥60

9 parts on this diagram · 3 diagrams in section
