Toyota PROBOX/SUCCEED — V-BELT

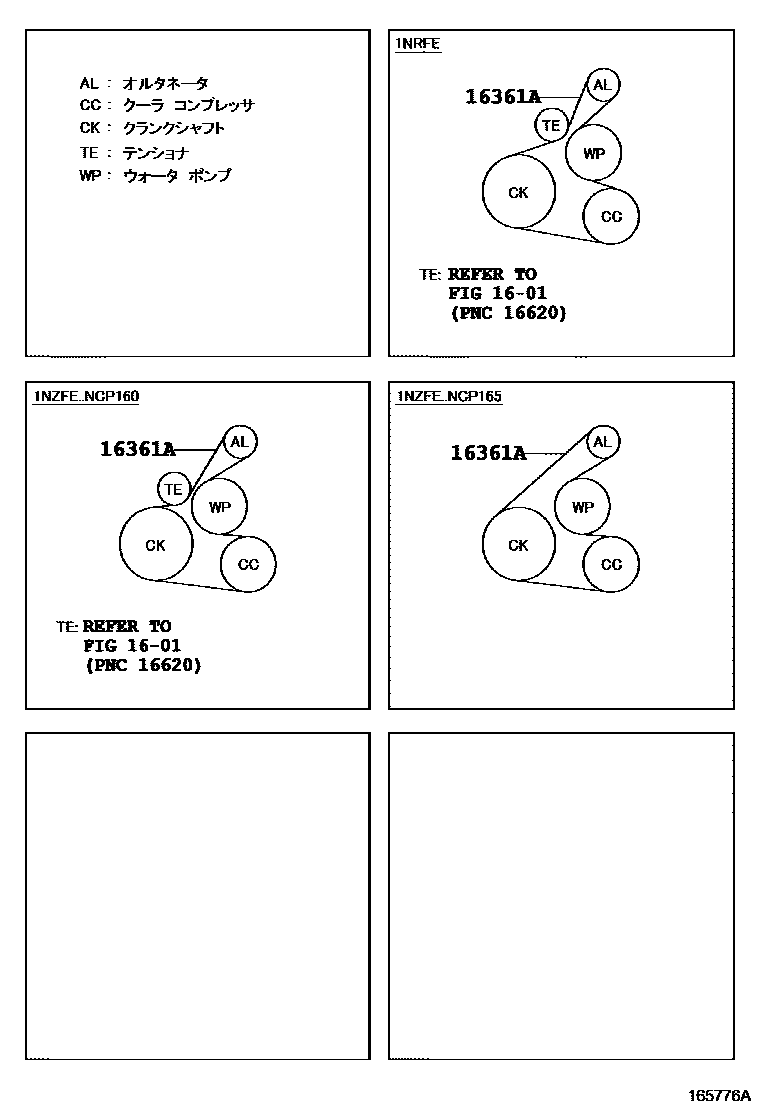

Parts diagram

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02694i¥2,930201409

main90916-02705i¥3,150201409-202007

main90916-02705i¥3,150201409

main90916-02713i¥2,930201409-202007

main90916-02713i¥2,930201409

2 parts on this diagram · 1 diagram in section
