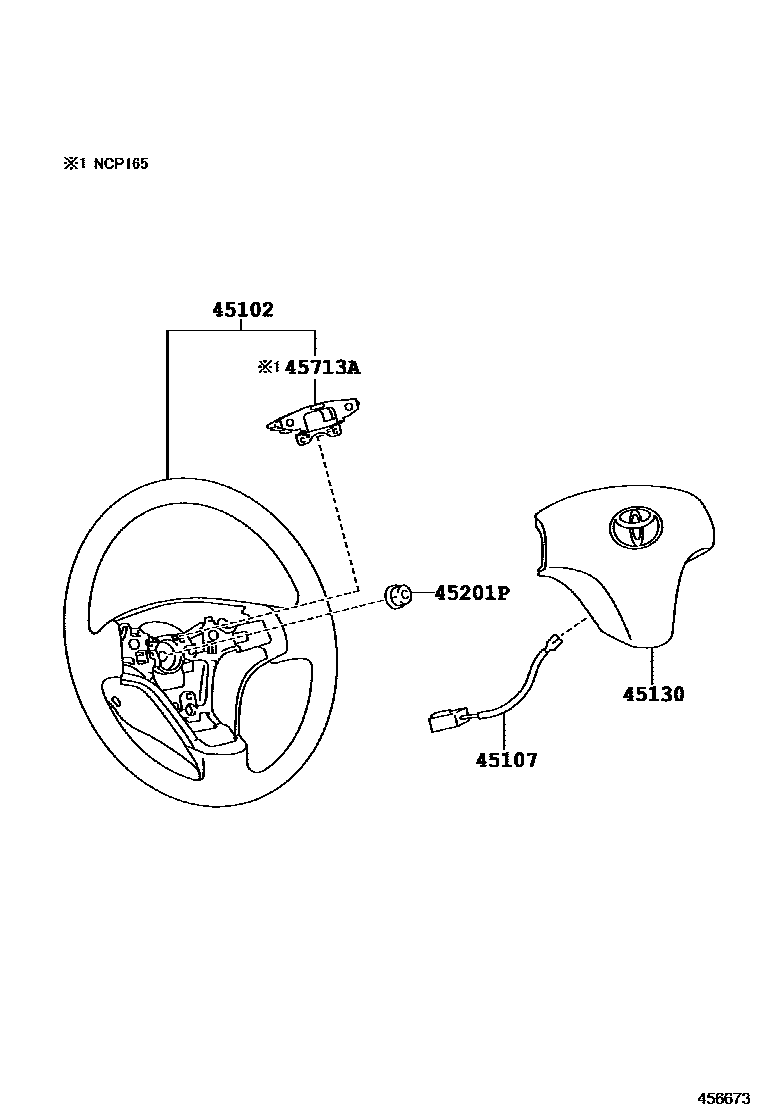

Toyota PROBOX/SUCCEED — STEERING WHEEL

45102WHEEL SUB-ASSY, STEERING

main45102-52280-C0iNCP160,NSP160201409-201802

BLACK,TRIM1#

sub45102-52280¥23,300

main45102-52280-C1iNCP160,NHP160,NSP160201802

BLACK,TRIM1#

sub45102-52280¥23,300

main45102-52300-C0iNCP165201409-201802

BLACK,TRIM1#

sub45102-52300¥25,700

main45102-52300-C1iNCP165201802

BLACK,TRIM1#

sub45102-52300¥25,700

45107WIRE SUB-ASSY, HORN BUTTON

main45107-B2050iNCP16#,NHP160,NSP160¥570201409

45130BUTTON ASSY, HORN

main45130-52790-C0iNCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX201409-201802

BLACK,TRIM1#

sub45130-52790¥64,200

main45130-52790-C1iNCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX201802

BLACK,TRIM1#

sub45130-52790¥64,200

main45130-52800-C0iNCP16#..F,TX201409-201802

BLACK,TRIM1#

sub45130-52800¥64,200

main45130-52800-C1iNCP16#,NHP160..F,TX201802

BLACK,TRIM1#

sub45130-52800¥64,200

45201PNUT, STEERING WHEEL SET

main90179-12071iNCP16#,NHP160,NSP160¥130201409

45713ADAMPER, STEERING SHAKE

main45713-52090iNCP165..SUCD¥2,000201409-202007

main45713-52090iNCP165..PROB¥2,000201409

5 parts on this diagram · 1 diagram in section
