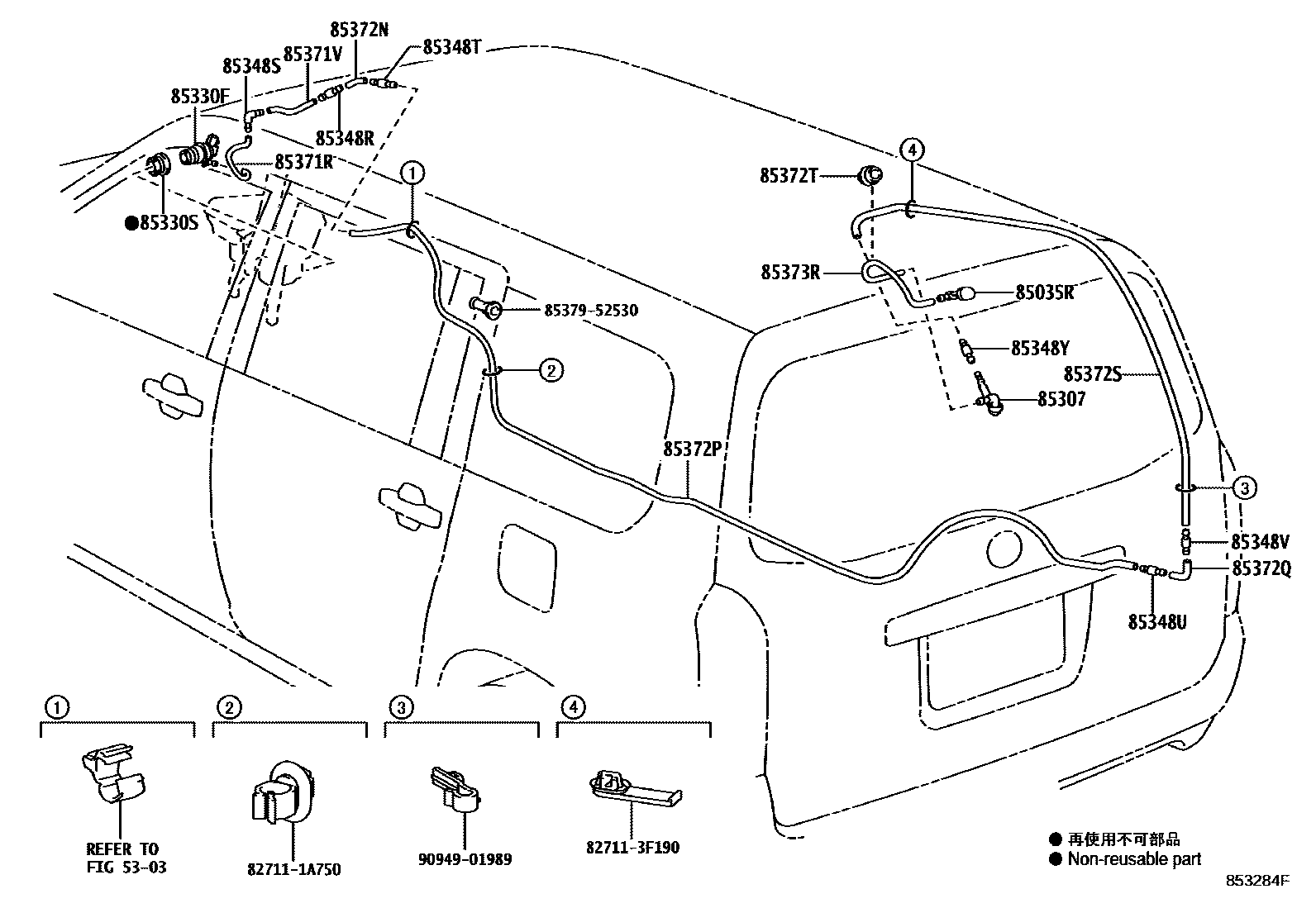

Toyota PROBOX/SUCCEED — REAR WASHER
5303
85035RNOZZLE SUB-ASSY, REAR WASHER
85307GROMMET SUB-ASSY, WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
�������P�O�O�O�i���g�C�k���Q�Q�O�j
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
�������P�O�O�O�i���g�C�k���Q�S�O�j
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
�������P�S�T�O�i���g�C�k���T�O�j
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
�������R�T�V�O
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
�������P�S�T�O�i���g�C�k���T�O�j
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
�������P�W�O�O�i���g�C�k���P�Q�P�O�j
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
�������P�O�O�O�i���g�C�k���Q�V�O�j
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827113F190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537952530JOINT
main85379-52530
9094901989
23 parts on this diagram · 1 diagram in section
