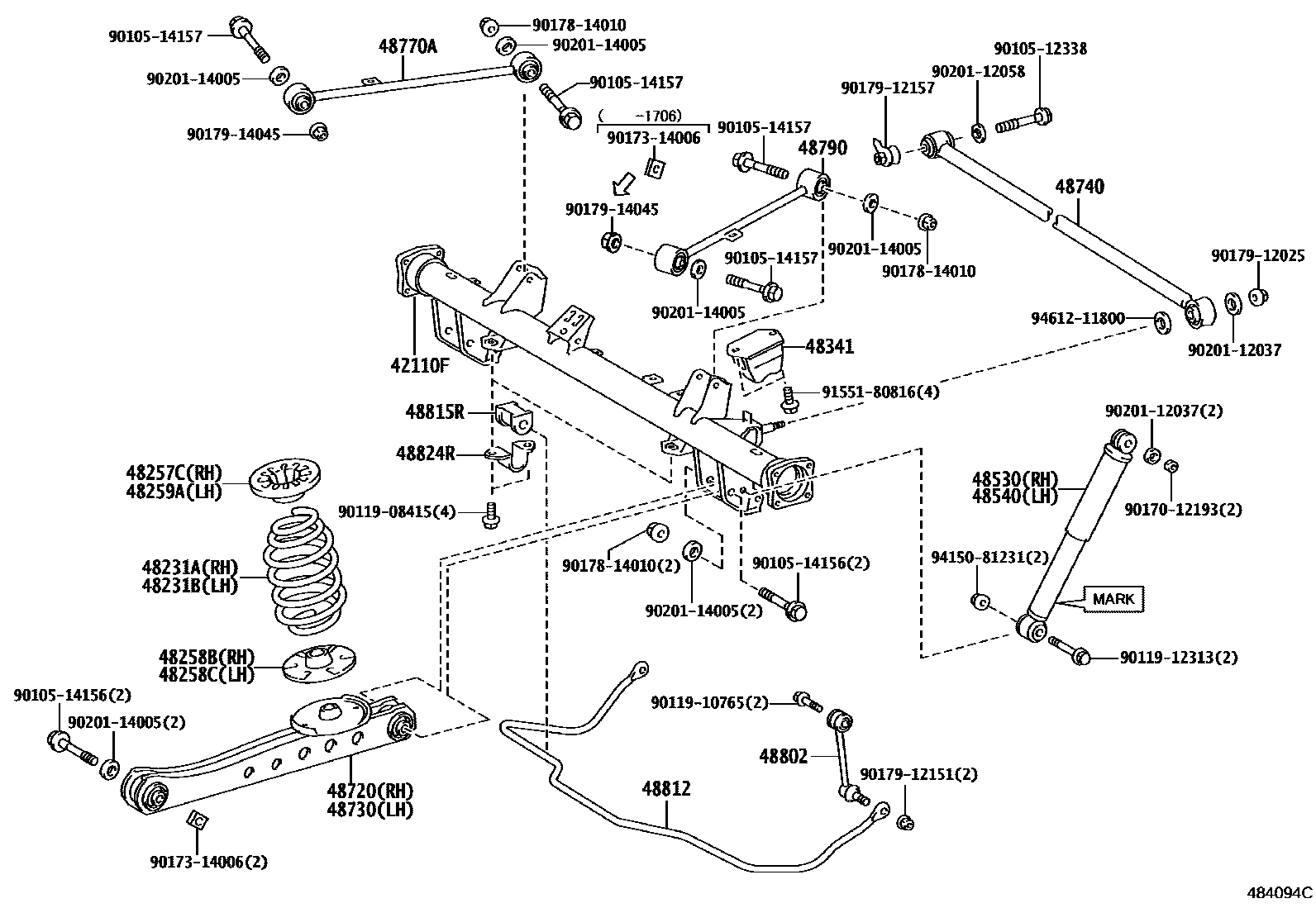

Toyota PROBOX/SUCCEED — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
�}�[�N�@�S�W�T�R�O�|�T�Q�r�O�O
�}�[�N�@�S�W�T�R�O�|�T�Q�r�P�O
�}�[�N�@�S�W�T�R�O�|�T�Q�r�Q�O
48540ABSORBER ASSY, SHOCK, REAR LH
�}�[�N�@�S�W�T�R�O�|�T�Q�r�O�O
�}�[�N�@�S�W�T�R�O�|�T�Q�r�P�O
�}�[�N�@�S�W�T�R�O�|�T�Q�r�Q�O
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48802LINK SUB-ASSY, STABILIZER
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
9010512338
9010514156
9010514157
9011908415
9011910765
9011912313
9017012193
9017314006
9017814010
9017912025
9017912151
9017912157
9017914045
9020112037
9020112058
9020114005
9155180816
9415081231
9461211800
38 parts on this diagram · 2 diagrams in section
