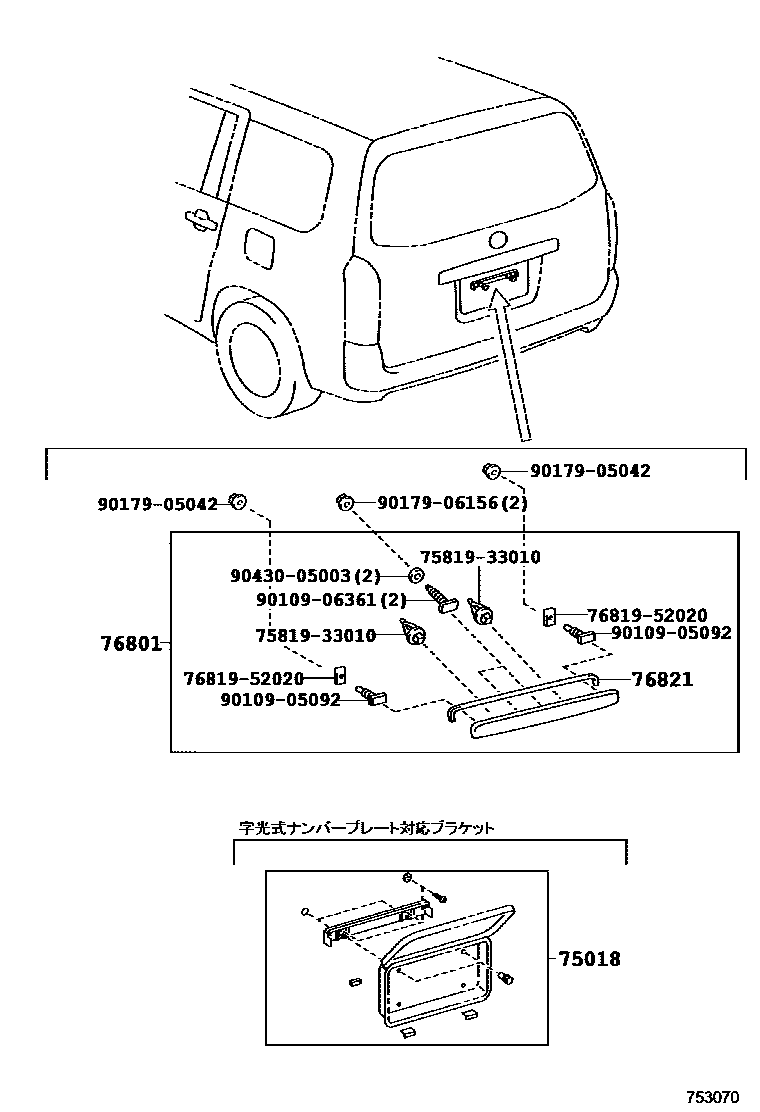

Toyota PROBOX/SUCCEED — REAR MOULDING

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-48020¥3,500

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-52050iNCP16#,NHP160,NSP160..DX,DXCOM,U,UL¥4,400201409

main76801-52060-A0iNCP16#,NHP160,NSP160..F,GL,TX,ULX201409

WHITE,058

main76801-52060-B1iNCP16#,NHP160,NSP160..F,GL,TX,ULX201409

SILVER M.M.,1E7

main76801-52060-C0iNCP16#,NHP160,NSP160..F,GL,TX,ULX201409

BLACK MC.,209

main76801-52060-D1iNCP16#,NHP160,NSP160..F,GL,TX,ULX201409-202201

BORDEAUX M.M,3R9

main76801-52060-G1iNCP16#,NHP160,NSP160..F,GL,TX,ULX201409-202201

LT.GREEN ME.,6U6

main76801-52060-J0iNCP16#,NHP160,NSP160..F,GL,TX,ULX201409

DK.BLUE M.M.,8P4

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-52010iNCP16#,NHP160,NSP160¥340201409

7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010¥130

7681952020SEAL, BACK DOOR OUTSIDE GARNISH

main76819-52020¥120

9010905092

main90109-05092¥60

9010906361

main90109-06361¥60

9017905042

main90179-05042¥70

9017906156

main90179-06156¥140

9043005003

main90430-05003¥60

10 parts on this diagram · 1 diagram in section
