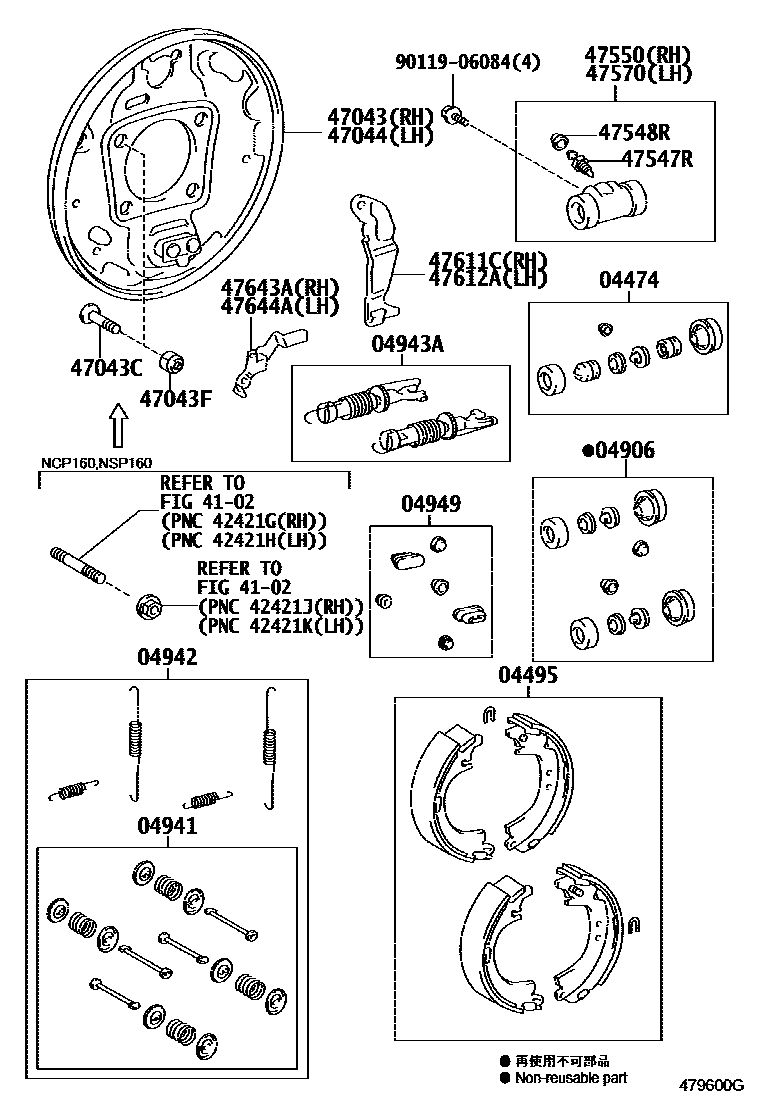

Toyota PROBOX/SUCCEED — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-52140iNCP16#,NHP160,NSP160¥1,570201409

04495SHOE KIT, REAR BRAKE

main04495-52030iNCP16#,NSP160¥4,040201409

�}�[�N�@�m�a�j�@�k�m�T�Q�P

main04495-52121iNHP160¥4,700201812

�}�[�N�@�m�a�j�@�k�m�T�Q�P

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28040iNCP16#,NHP160,NSP160¥870201409

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iNCP16#,NHP160,NSP160¥1,860201409

04942SPRING KIT, REAR BRAKE

main04942-13030iNCP16#,NHP160,NSP160¥2,070201409

04943ASTRUT KIT, REAR BRAKE

main04943-13010iNCP16#,NSP160¥2,730201409

main04943-52030iNHP160¥2,460201812

04949PLUG KIT, REAR BRAKE

main04949-13010iNCP16#,NHP160,NSP160¥800201409

4102

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12480iNHP160¥2,540201812

main47043-52040iNCP16#,NSP160¥2,870201409

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-12020iNCP165..SUCD¥280201409-202007

���P�O�|�P�D�Q�T�o�w�R�V�|�P�T

main42184-12020iNCP165..PROB¥280201409

���P�O�|�P�D�Q�T�o�w�R�V�|�P�T

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94184-01001iNCP165..SUCD¥160201409-202007

main94184-01001iNCP165..PROB¥160201409

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12480iNHP160¥2,540201812

main47044-52040iNCP16#,NSP160¥2,870201409

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030iNCP16#,NHP160,NSP160¥180201409

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP16#,NHP160,NSP160¥160201409

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28060iNCP16#,NHP160,NSP160¥3,560201409

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iNCP16#,NHP160,NSP160¥3,560201409

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-68030iNCP16#,NSP160¥650201409

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-68030iNCP16#,NSP160¥650201409

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-42010iNCP16#,NSP160¥200201409

main47643-52120iNHP160¥200201812

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-42010iNCP16#,NSP160¥220201409

main47644-52120iNHP160¥200201812

9011906084

main90119-06084¥100

21 parts on this diagram · 2 diagrams in section
