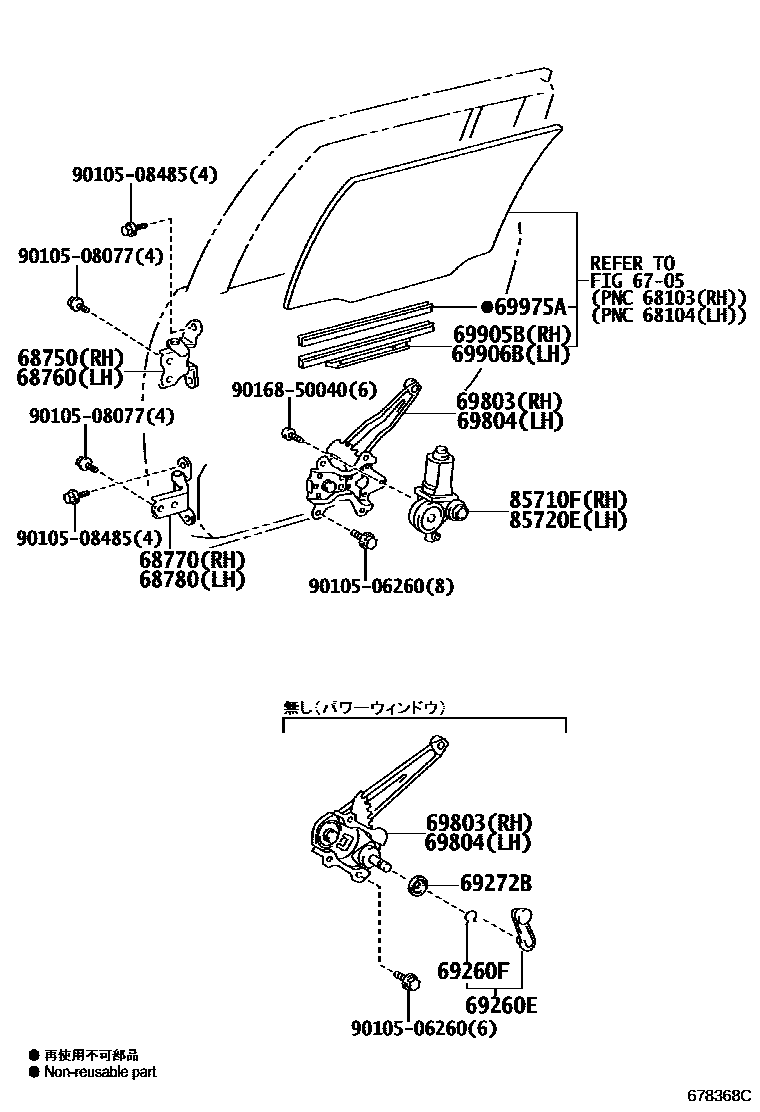

Toyota PROBOX/SUCCEED — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iNCP16#,NHP160,NSP160¥1,850201409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iNCP16#,NHP160,NSP160¥1,850201409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iNCP16#,NHP160,NSP160¥1,850201409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iNCP16#,NHP160,NSP160¥1,850201409

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52070-C0iNCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX201409

BLACK,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iNCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX¥160201409

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010iNCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX¥330201409

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-13020iNCP16#,NHP160..F,TX¥3,150201409

main69830-52160iNCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX¥3,150201409

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-13020iNCP16#,NHP160..F,TX¥3,150201409

main69840-52160iNCP16#,NHP160,NSP160..DX,DXCOM,GL,U,UL,ULX¥3,150201409

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52020iNCP16#,NHP160,NSP160¥400201409

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52010iNCP16#,NHP160,NSP160¥400201409

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iNCP16#,NHP160,NSP160¥370201409

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-52200iNCP16#,NHP160..F,TX¥15,900201409

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-52220iNCP16#,NHP160..F,TX¥15,900201409

9010506260

main90105-06260¥60

9010508077

main90105-08077¥110

9010508485

main90105-08485¥80

9016850040

main90168-50040¥70

19 parts on this diagram · 1 diagram in section
