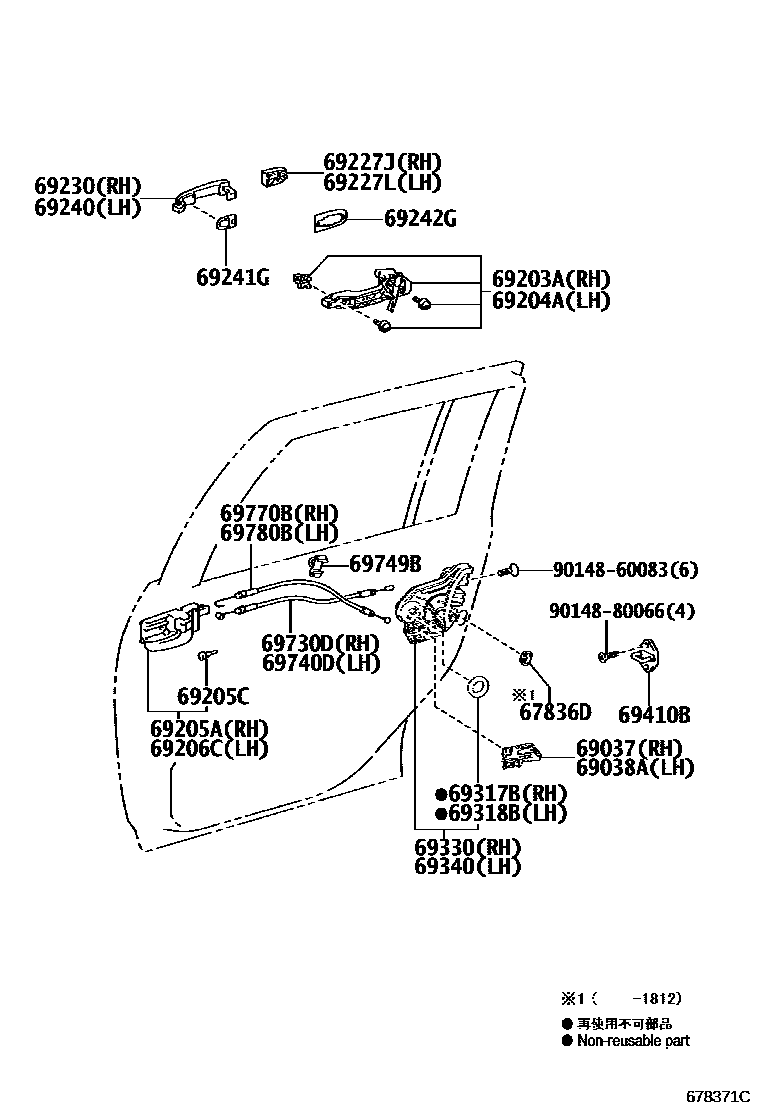

Toyota PROBOX/SUCCEED — REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
LT.GREEN ME.,6U6
BORDEAUX M.M,3R9
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
LT.GREEN ME.,6U6
BORDEAUX M.M,3R9
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE,058
BLACK MC.,209
DK.BLUE M.M.,8P4
SILVER M.M.,1E7
LT.GREEN ME.,6U6
BORDEAUX M.M,3R9
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE,058
BLACK MC.,209
DK.BLUE M.M.,8P4
SILVER M.M.,1E7
LT.GREEN ME.,6U6
BORDEAUX M.M,3R9
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69317BSEAL, REAR DOOR LOCK HOLE, RH
69318BSEAL, REAR DOOR LOCK HOLE, LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860083
9014880066
26 parts on this diagram · 1 diagram in section
