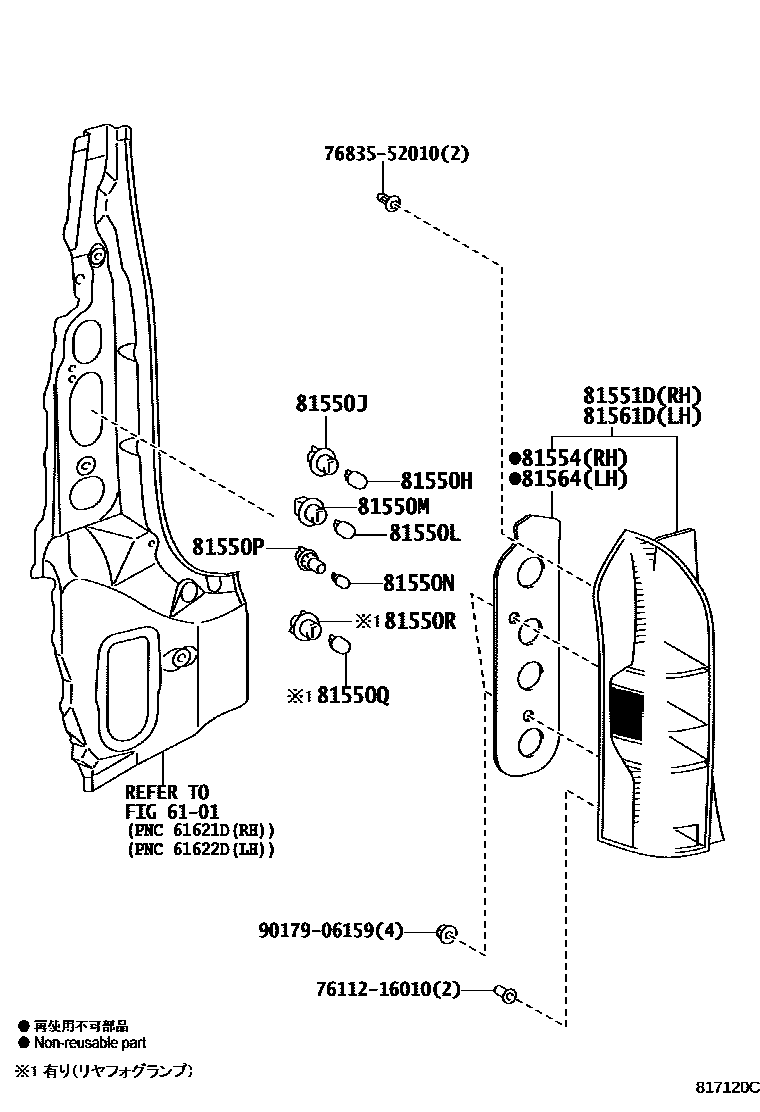

Toyota PROBOX/SUCCEED — REAR COMBINATION LAMP

0001 1 0002 1

6101

81550HBULB, TAIL & STOP LAMP

main90981-13044iNCP16#,NHP160,NSP160¥230201409

81550JSOCKET, TAIL & STOP LAMP

main81585-30290iNCP16#,NHP160,NSP160¥740201409-202201

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iNCP16#,NHP160,NSP160¥300201409

81550MSOCKET, REAR TURN SIGNAL LAMP

main81565-52100iNCP16#,NHP160,NSP160¥740201409-202201

81550NBULB, BACK UP LAMP

main90981-11059iNCP16#,NHP160,NSP160¥200201409

81550PSOCKET, BACK UP LAMP

main81555-28240iNCP16#,NHP160,NSP160¥1,090201409-202201

81550QBULB, REAR FOG LAMP, NO.1

81550RSOCKET, REAR FOG LAMP

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52C40iNCP16#,NHP160,NSP160¥8,700201409-202201

sub81551-52C41¥7,900

sub81555-52C40¥1,540

main81551-52C41iNCP16#,NHP160,NSP160¥7,900202201

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-52240iNCP16#,NHP160,NSP160¥700201409-202201

main81554-52C40iNCP16#,NHP160,NSP160¥630202201

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52C20iNCP16#,NHP160,NSP160¥8,700201409-202201

sub81561-52C21¥7,900

sub81555-52C40¥1,540

main81561-52C21iNCP16#,NHP160,NSP160¥7,900202201

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-52220iNCP16#,NHP160,NSP160¥700201409-202201

main81564-52C20iNCP16#,NHP160,NSP160¥630202201

7611216010

main76112-16010¥60

7683552010RETAINER, REAR SPOILER SIDE, NO.1

main76835-52010¥360

9017906159

main90179-06159¥70

16 parts on this diagram · 2 diagrams in section
