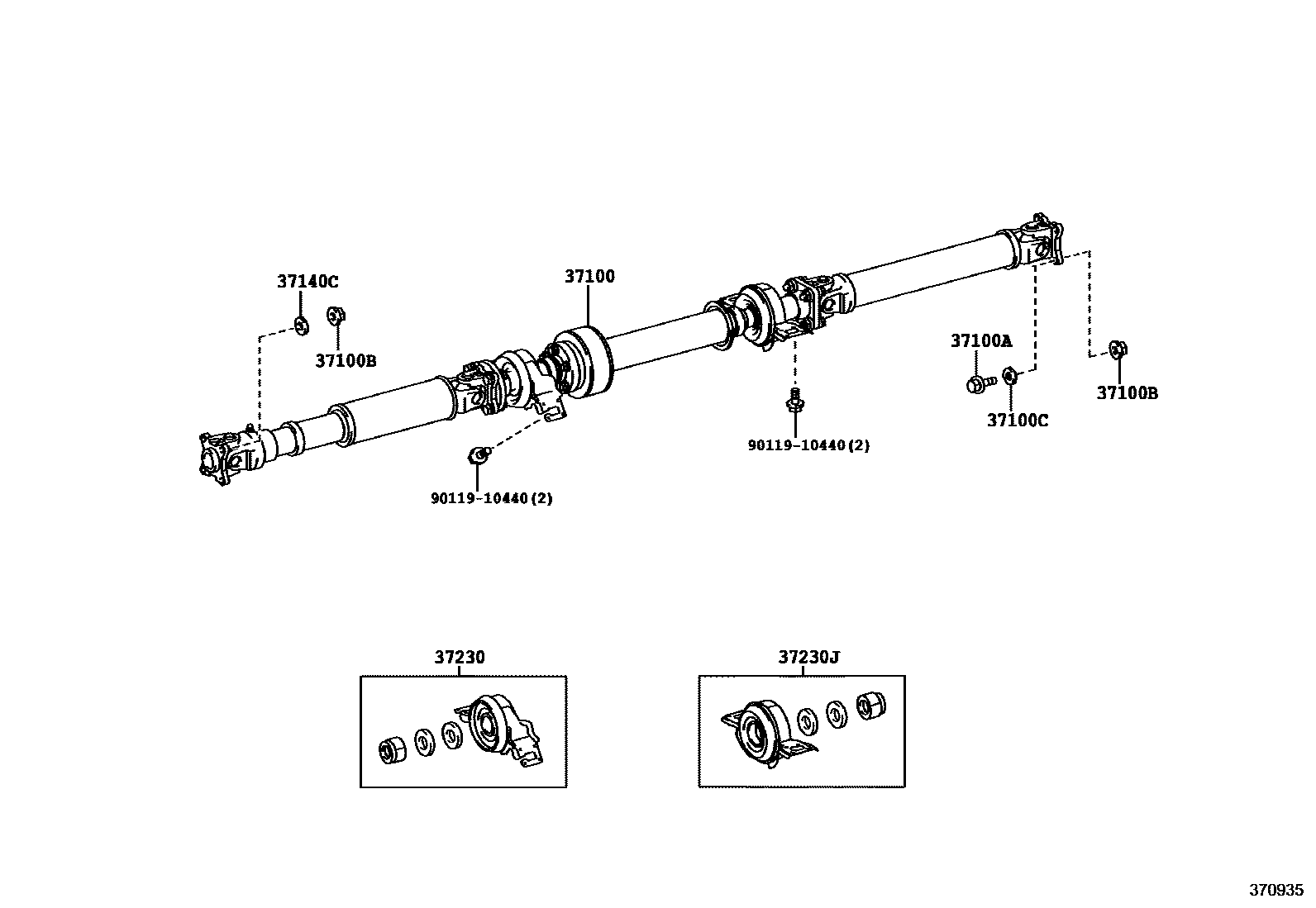

Toyota PROBOX/SUCCEED — PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-52130iNCP165..SUCD¥120,000201409-202007

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-08244iNCP165..SUCD¥160201409-202007

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08197iNCP165..SUCD¥90201409-202007

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main94512-00800iNCP165..SUCD¥80201409-202007

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-08097iNCP165..SUCD¥80201409-202007

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-59075iNCP165..SUCD¥7,300201409-202007

37230JBEARING ASSY, CENTER SUPPORT, NO.2

main37230-59065iNCP165..SUCD¥7,300201409-202007

9011910440

main90119-10440¥280

8 parts on this diagram · 1 diagram in section
