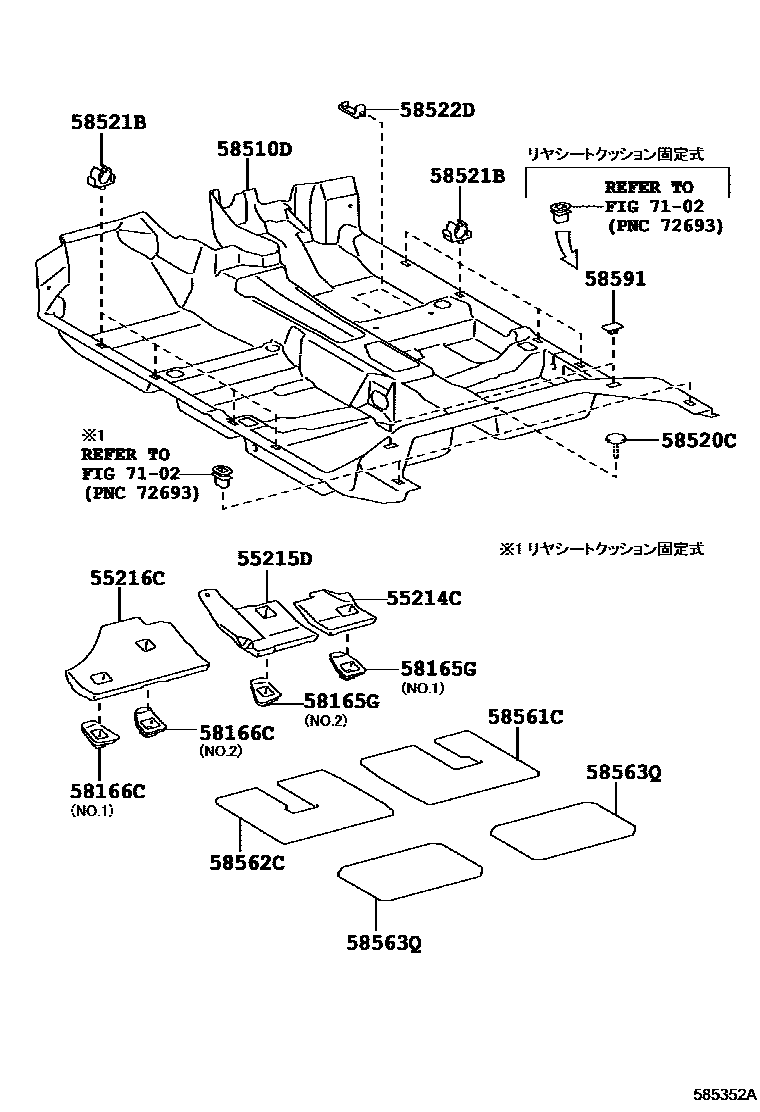

Toyota PROBOX/SUCCEED — MAT & CARPET

0001 1 0002 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-52190iNCP16#,NHP160,NSP160¥670201409

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-52150iNCP16#,NHP160,NSP160¥1,190201409

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-52060iNCP16#,NHP160,NSP160¥2,560201409

58165GCOVER, FRONT FLOOR, RH

main55129-52051iNCP16#,NHP160,NSP160¥780201409

�m�n�D�Q�F�C���X�g�Q��

main58165-52011iNCP16#,NHP160,NSP160¥1,110201409

�m�n�D�P�F�C���X�g�Q��

58166CCOVER, FRONT FLOOR, LH

main55139-52021iNCP16#,NHP160,NSP160¥780201409

�m�n�D�Q�F�C���X�g�Q��

main58166-52011iNCP16#,NHP160,NSP160¥1,110201409

�m�n�D�P�F�C���X�g�Q��

58510DCARPET ASSY, FLOOR, FRONT

main58510-52M50-B1iNCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX201409-201811

GRAY,TRIM1#

sub58510-52M51¥21,600

main58510-52M51-B1iNCP16#,NSP160..DX,DXCOM,GL,U,UL,ULX201812

GRAY,TRIM1#

main58510-52N40-B1iNCP16#..F,TX201409-201505

GRAY,TRIM1#

sub58510-52N41¥32,800

main58510-52N41-B1iNCP16#..F,TX201506-201811

GRAY,TRIM1#

sub58510-52N42¥24,800

main58510-52N42-B1iNCP16#..F,TX201812

�����w�b�h���X�g�|�����i�Q���j,GRAY,TRIM1#

main58510-52N42-B1iNCP16#..F,TX201812

GRAY,TRIM1#

main58510-52S50-B0iNHP160201812

GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iNCP16#,NSP160201610

BLACK,TRIM1#

sub90467-07049¥90

main90467-07049-C0iNCP16#,NSP160201409-201610

BLACK,TRIM1#

sub90467-07049¥90

main90467-07215iNHP160¥80201812

58521BHOOK, FLOOR CARPET

main58521-52010iNCP16#,NHP160,NSP160¥480201409

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030iNCP16#,NHP160,NSP160¥380201409

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52240iNCP16#,NHP160,NSP160¥2,140201409

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52190iNCP16#,NHP160,NSP160¥2,160201409

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52290iNCP16#,NHP160,NSP160¥880201409

58591COVER, FLOOR CARPET

main58591-52010-C0iNCP16#..F,TX201409

BLACK,TRIM1#

sub58591-52010¥890

7102

14 parts on this diagram · 2 diagrams in section
