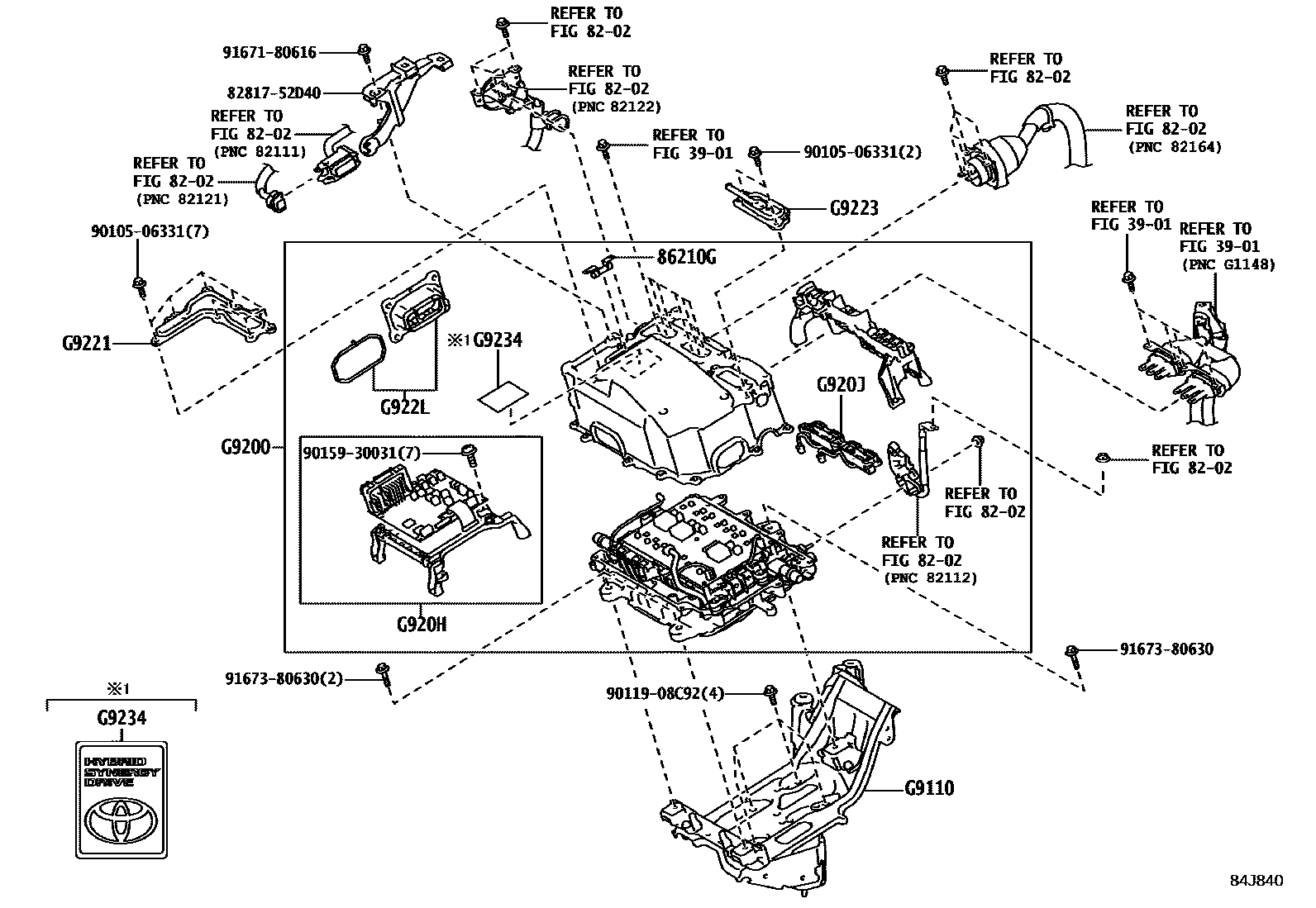

Toyota PROBOX/SUCCEED — HEV INVERTER

0001 1������ASSY 0002 1������� 0003 1

3901

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iNHP160¥1,710201812

G9110BRACKET ASSY, INVERTER

mainG911052010iNHP160201812

G9200INVERTER ASSY, W/CONVERTER

mainG920059086iNHP160201812-202112

mainG920059095iNHP160202112

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H52043iNHP160201812

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iNHP160201812

G9221COVER, INVERTER

mainG922152010iNHP160201812

G9223COVER, INVERTER TERMINAL

mainG922352010iNHP160201812

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iNHP160201812

G9234PLATE, INVERTER NAME

mainG923F52010iNHP160201812-202112

8281752D40PROTECTOR, WIRING HARNESS, NO.1

main82817-52D40¥970

9010506331

main90105-06331¥70

9011908C92

main90119-08C92¥100

9015930031

main90159-30031¥60

9167180616

main91671-80616¥60

9167380630

main91673-80630¥80

17 parts on this diagram · 3 diagrams in section
