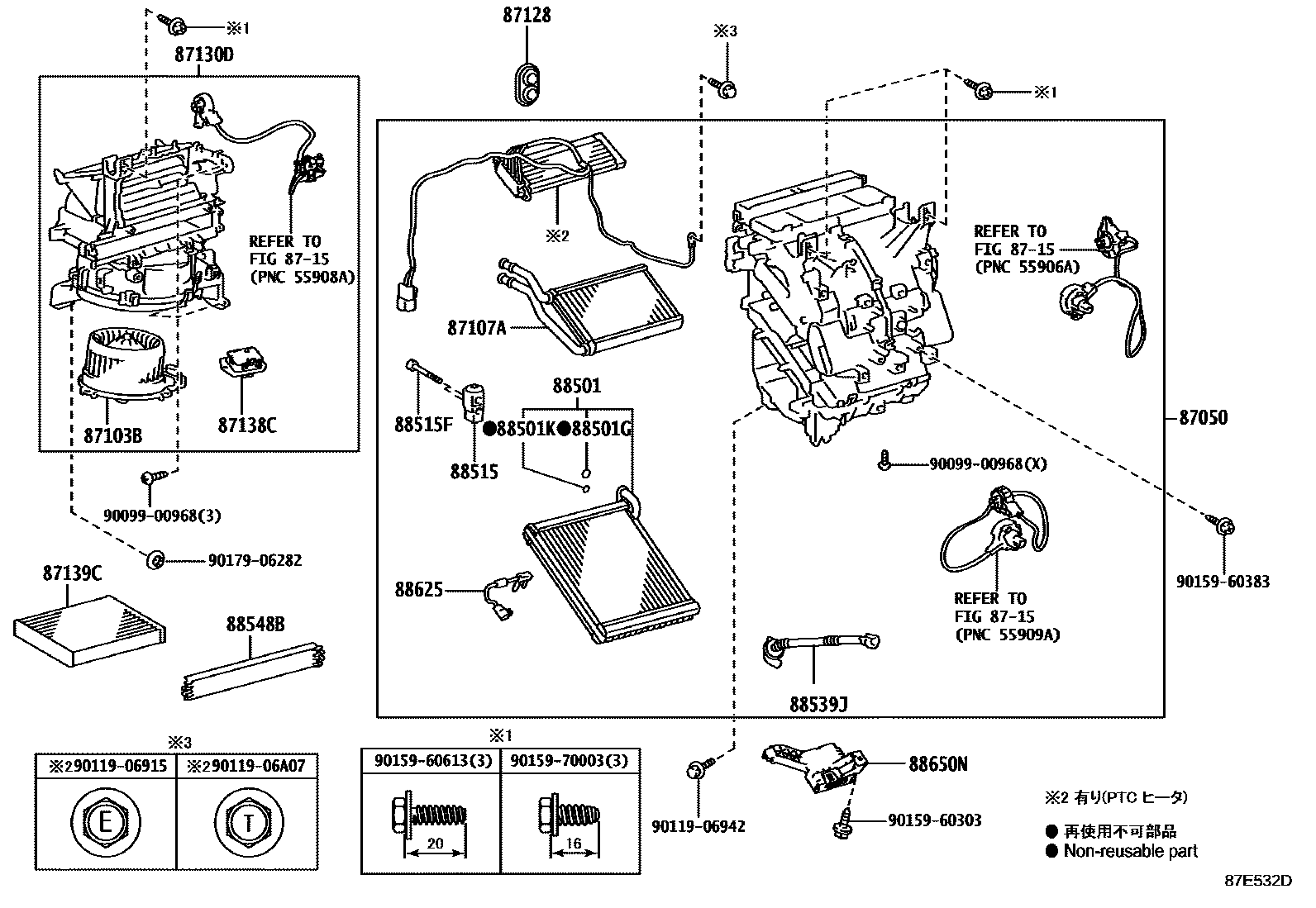

Toyota PROBOX/SUCCEED — HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87128GROMMET, HEATER
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
8715
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
88515VALVE, COOLER EXPANSION
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
9009900968
main90099-00968
9011906915
9011906942
9011906A07
9015960303
9015960383
9015960613
9015970003
9017906282
26 parts on this diagram · 2 diagrams in section
