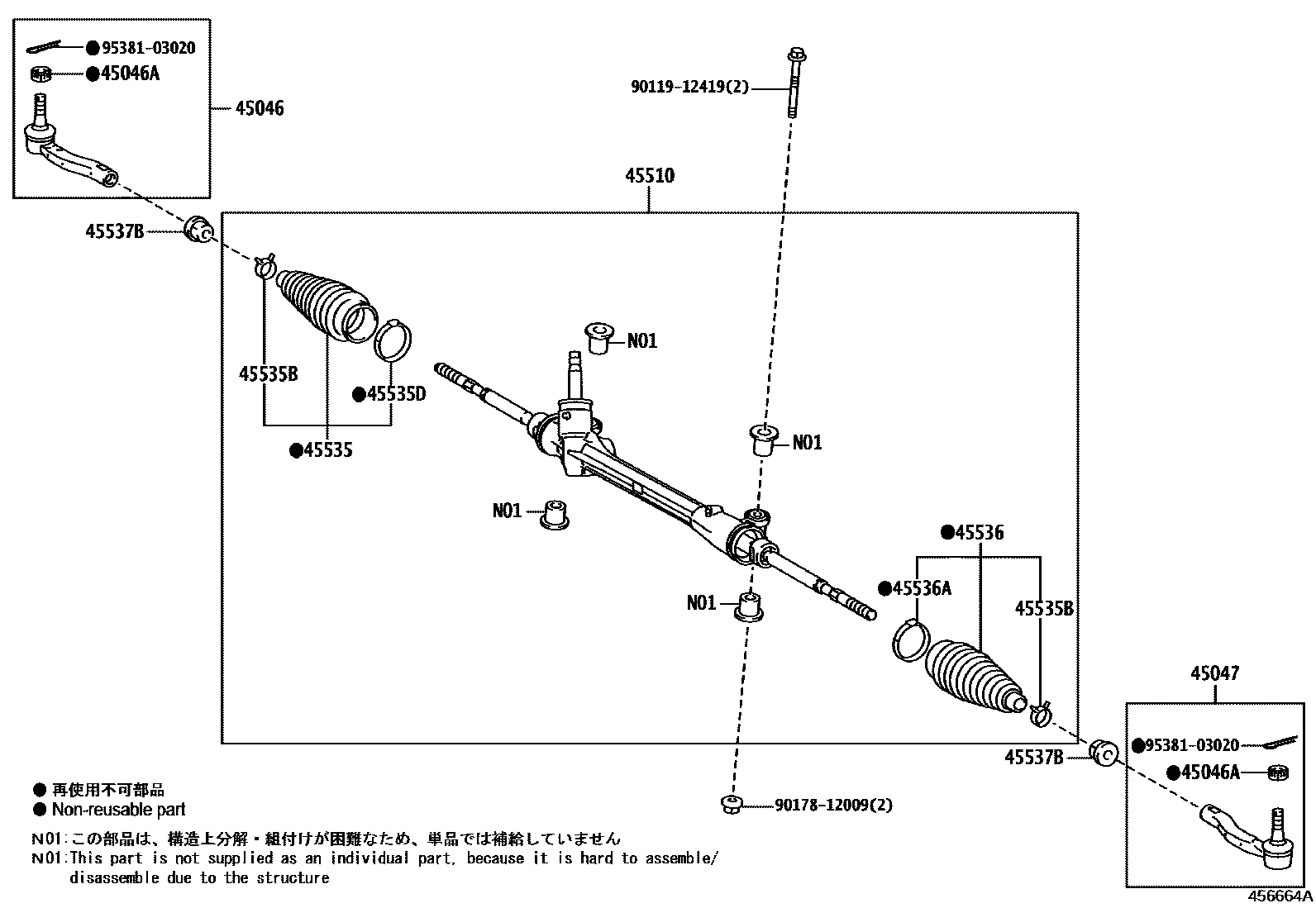

Toyota PROBOX/SUCCEED — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59205iNCP16#,NHP160,NSP160¥2,690201409

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNCP16#,NHP160,NSP160¥130201409

45047END SUB-ASSY, TIE ROD, LH

main45047-59145iNCP16#,NHP160,NSP160¥2,690201409

45510GEAR ASSY, STEERING

main45510-52410iNCP160,NHP160,NSP160¥29,800201409

main45510-52420iNCP165¥29,800201409

45535BOOT, STEERING RACK, NO.1

main45535-59035iNCP16#,NHP160,NSP160¥790201409

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNCP16#,NHP160,NSP160¥180201409

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iNCP16#,NHP160,NSP160¥220201409

45536BOOT, STEERING RACK, NO.2

main45535-59035iNCP16#,NHP160,NSP160¥790201409

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iNCP16#,NHP160,NSP160¥220201409

45537BNUT, RACK END LOCK

main90178-15003iNCP16#,NHP160,NSP160¥120201409

9011912419

main90119-12419¥360

9017812009

main90178-12009¥120

9538103020

main95381-03020¥90

13 parts on this diagram · 1 diagram in section
