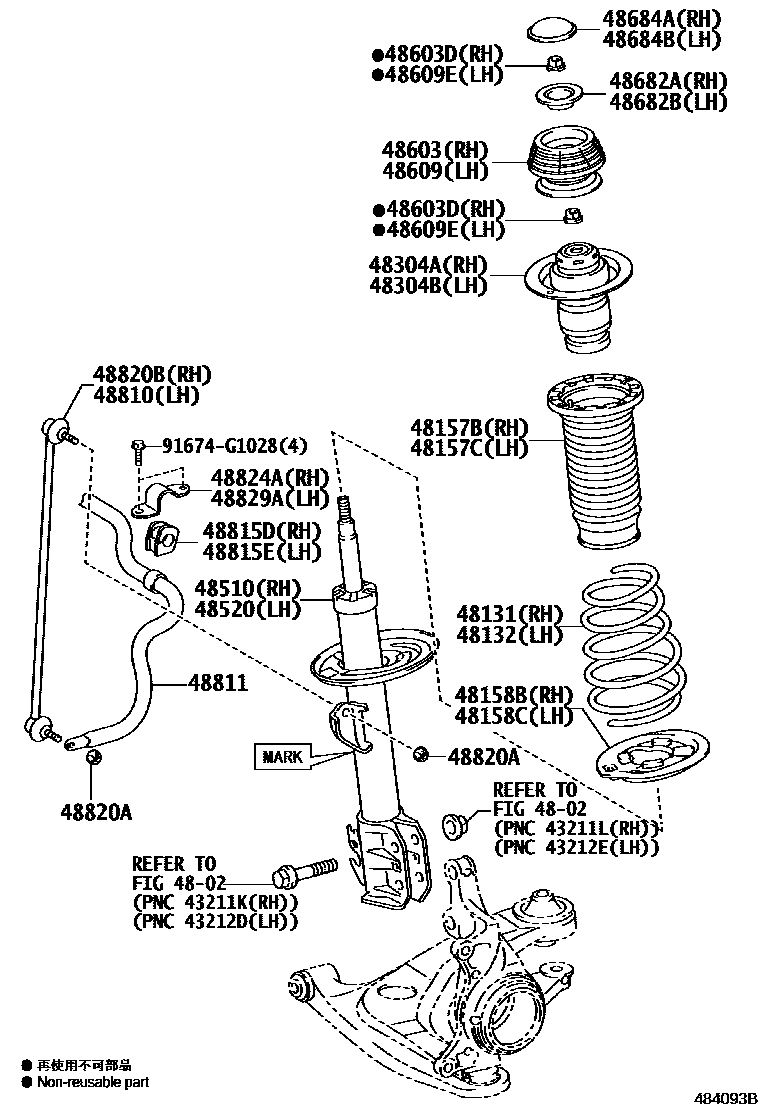

Toyota PROBOX/SUCCEED — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-52M70iNCP160,NSP160¥5,900201409-202110

sub48131-52M71¥5,300

main48131-52M71iNCP160,NSP160¥5,300202111

main48131-52M80iNCP165¥6,500201409-202110

sub48131-52M81¥5,900

main48131-52M81iNCP165¥5,900202111

main48131-52P00iNHP160¥6,300201812-202110

sub48131-52P01¥5,700

main48131-52P01iNHP160¥5,700202111

48132SPRING, FRONT COIL, LH

main48131-52M70iNCP160,NSP160¥5,900201409-202110

sub48131-52M71¥5,300

main48131-52M71iNCP160,NSP160¥5,300202111

main48131-52M80iNCP165¥6,500201409-202110

sub48131-52M81¥5,900

main48131-52M81iNCP165¥5,900202111

main48131-52P00iNHP160¥6,300201812-202110

sub48131-52P01¥5,700

main48131-52P01iNHP160¥5,700202111

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52040iNCP16#,NSP160¥1,590201409-201605

main48157-52050iNCP16#,NHP160,NSP160¥990201605

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52040iNCP16#,NSP160¥1,590201409-201605

main48157-52050iNCP16#,NHP160,NSP160¥990201605

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-52010iNCP16#,NSP160¥1,150201409-201605

main48158-52020iNCP16#,NHP160,NSP160¥740201605

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-52010iNCP16#,NSP160¥1,150201409-201605

main48158-52020iNCP16#,NHP160,NSP160¥740201605

48304ASEAT SUB-ASSY, BUMPER, RH

main48304-52101iNCP165¥2,070201409

main48304-52111iNCP160,NHP160,NSP160¥1,950201409

48304BSEAT SUB-ASSY, BUMPER, LH

main48304-52101iNCP165¥2,070201409

main48304-52111iNCP160,NHP160,NSP160¥1,950201409

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-52K10iNCP160,NSP160¥25,600201409-201605

main48510-52K20iNCP165¥25,600201409-201605

main48510-52N60iNCP160,NSP160¥20,300201605-201804

main48510-52N70iNCP165¥21,200201605-201804

main48510-52R30iNCP160,NSP160¥15,300201804

main48510-52R40iNCP165¥16,000201804

main48510-52R50iNHP160¥15,300201812

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-52710iNCP160,NSP160¥25,600201409-201605

main48520-52720iNCP165¥25,600201409-201605

main48520-52B60iNCP160,NSP160¥20,300201605-201804

main48520-52B70iNCP165¥21,200201605-201804

main48520-52E30iNCP160,NSP160¥15,300201804

main48520-52E40iNCP165¥16,000201804

main48520-52E50iNHP160¥15,300201812

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52100iNCP16#,NHP160,NSP160¥3,680201409

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iNCP16#,NHP160,NSP160¥100201409

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52100iNCP16#,NHP160,NSP160¥3,680201409

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iNCP16#,NHP160,NSP160¥100201409

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52040iNCP16#,NHP160,NSP160¥410201409

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52040iNCP16#,NHP160,NSP160¥410201409

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iNCP16#,NHP160,NSP160¥500201409

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iNCP16#,NHP160,NSP160¥500201409

48810LINK ASSY, FRONT STABILIZER, LH

main48820-52030iNCP16#,NHP160,NSP160¥4,350201409

48811BAR, STABILIZER, FRONT

main48811-52170iNCP160,NHP160,NSP160¥8,700201409

main48811-52280iNCP165¥8,700201409

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-52090iNCP16#,NHP160,NSP160¥550201409

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-52090iNCP16#,NHP160,NSP160¥550201409

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iNCP16#,NHP160,NSP160¥100201409

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-52030iNCP16#,NHP160,NSP160¥4,350201409

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52060iNCP16#,NHP160,NSP160¥1,050201409

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52060iNCP16#,NHP160,NSP160¥1,050201409

91674G1028

main91674-G1028¥120

28 parts on this diagram · 1 diagram in section
