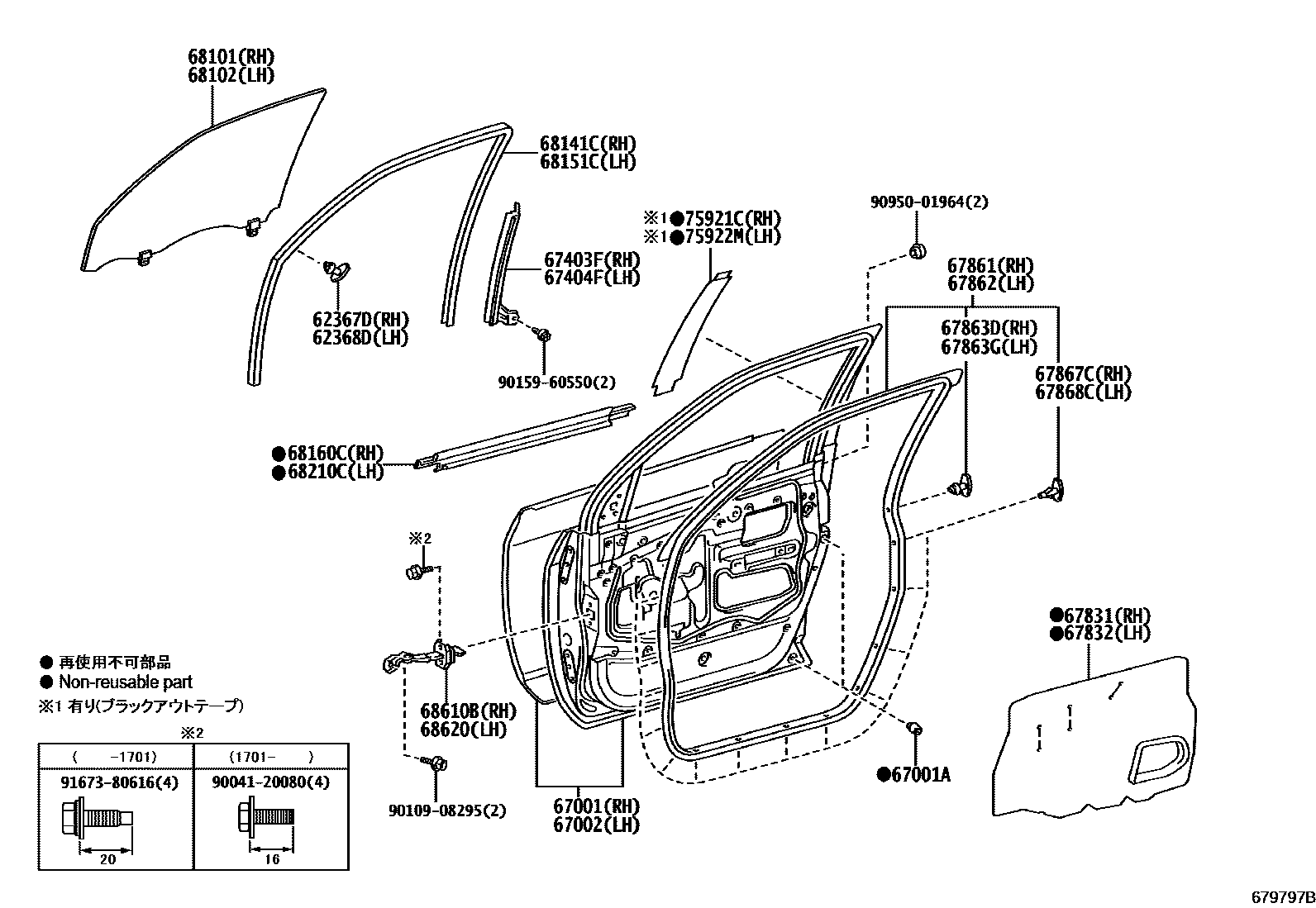

Toyota PROBOX/SUCCEED — FRONT DOOR PANEL & GLASS
62367DCLIP, DOOR WINDOW GLASS, RH
62368DCLIP, DOOR WINDOW GLASS, LH
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
BLACK,058 ,1E7 ,209 ,3R9 ,6U6 ,8P4
75922MTAPE, BLACK OUT, NO.1 LH
BLACK,058 ,1E7 ,209 ,3R9 ,6U6 ,8P4
9004120080
9010908295
9015960550
9095001964
9167380616
30 parts on this diagram · 2 diagrams in section
