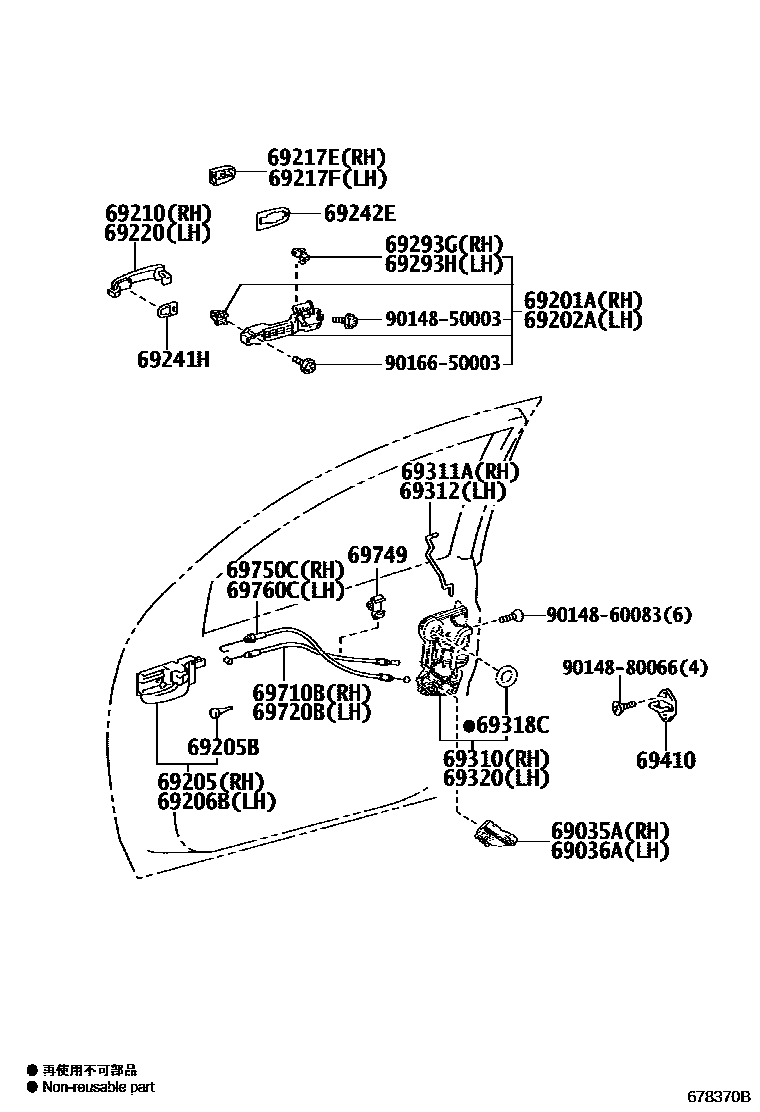

Toyota PROBOX/SUCCEED — FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE,058
BLACK MC.,209
DK.BLUE M.M.,8P4
SILVER M.M.,1E7
LT.GREEN ME.,6U6
BORDEAUX M.M,3R9
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE,058
BLACK MC.,209
DK.BLUE M.M.,8P4
SILVER M.M.,1E7
LT.GREEN ME.,6U6
BORDEAUX M.M,3R9
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
LT.GREEN ME.,6U6
BORDEAUX M.M,3R9
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE,058
BLACK MC.,209
DK.BLUE M.M.,8P4
SILVER M.M.,1E7
LT.GREEN ME.,6U6
BORDEAUX M.M,3R9
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
9014860083
9014880066
9016650003
30 parts on this diagram · 1 diagram in section
