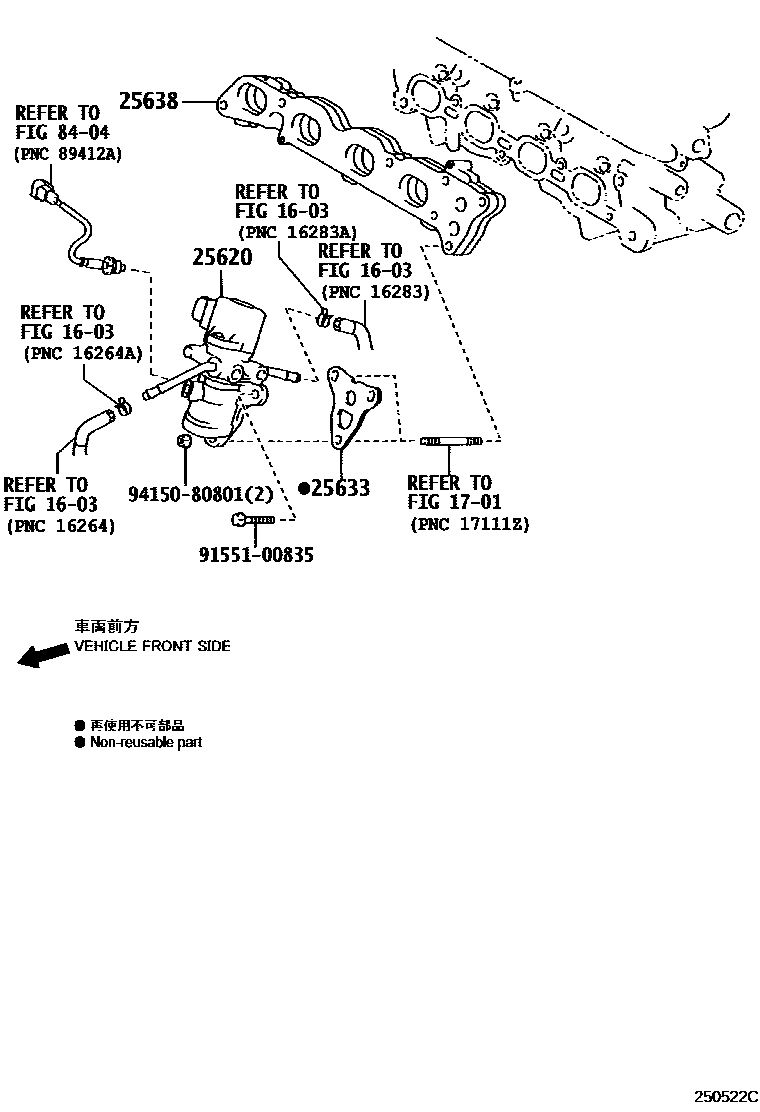

Toyota PROBOX/SUCCEED — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603

1701

25620VALVE ASSY, EGR

main25620-21010i1NZFE..NCP165¥18,400201409

main25620-21021i1NZFXE..NHP160¥18,400201812

main25620-21030i1NZFE..NCP160¥18,400201409

main25620-47020i1NRFE..NSP160¥18,400201409

25633GASKET, EGR VALVE

main25633-21010i1NZFXE..NHP160¥340201812

main25633-21020i1NZFE..NCP16#¥270201409

main25633-47010i1NRFE..NSP160¥160201409

25638CHAMBER, EGR DELIVERY

main25638-21020i1NZFE..NCP16#..SUCD¥6,400201409-202007

8404

9155100835

main91551-00835¥80

9415080801

main94150-80801¥80

8 parts on this diagram · 3 diagrams in section
