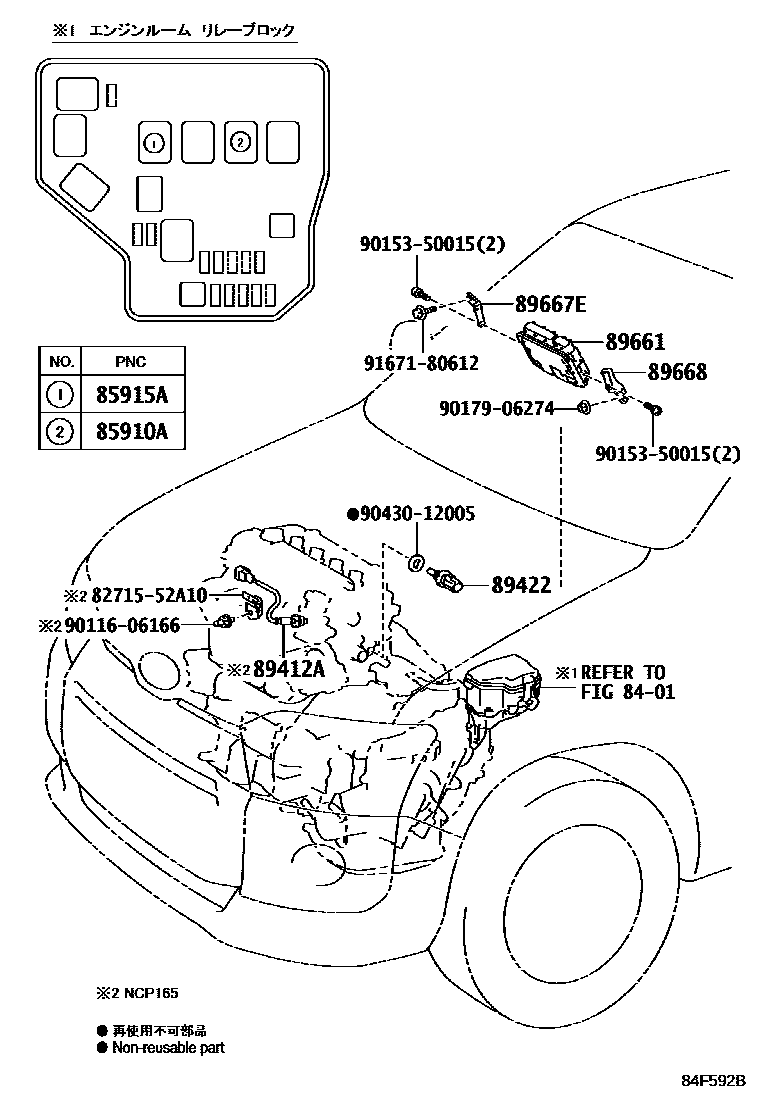

Toyota PROBOX/SUCCEED — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iNCP16#,NSP160¥2,930201409

85915ARELAY, MAIN

main90987-02027iNCP16#,NSP160¥2,930201409

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-35020iNCP165..SUCD¥6,500201409-202007

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNCP16#,NHP160,NSP160¥2,410201409

89661COMPUTER, ENGINE CONTROL

main89661-52K30iNHP160¥89,100201812-202201

main89661-52Y40iNSP160¥107,000201609-201812

main89661-5C410iNCP160¥129,000201409-201609

main89661-5C420iNCP165¥129,000201409-201609

main89661-5C430iNSP160¥129,000201409-201609

main89661-5C450iNSP160¥107,000201812-202008

main89661-5C470iNCP160¥107,000201812-202008

main89661-5C480iNCP165¥107,000201812-202008

main89661-5C800iNCP160¥107,000201609-201812

main89661-5C810iNCP165¥107,000201609-201812

main89661-5CD50iNSP160¥89,100202008-202201

main89661-5CD70iNCP160¥89,100202008-202201

main89661-5CD80iNCP165¥89,100202008-202201

main89661-5CE60iNSP160¥81,000202201

main89661-5CE80iNCP160¥81,000202201

main89661-5CE90iNCP165¥81,000202201

main89661-5CF00iNHP160¥81,000202201

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52340iNCP16#,NHP160,NSP160¥280201409

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52350iNCP16#,NHP160,NSP160¥280201409

8271552A10BRACKET,WIRING HARNESS CLAMP

main82715-52A10¥220

9011606166

main90116-06166¥70

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

9043012005

main90430-12005¥110

9167180612

main91671-80612¥60

14 parts on this diagram · 3 diagrams in section
