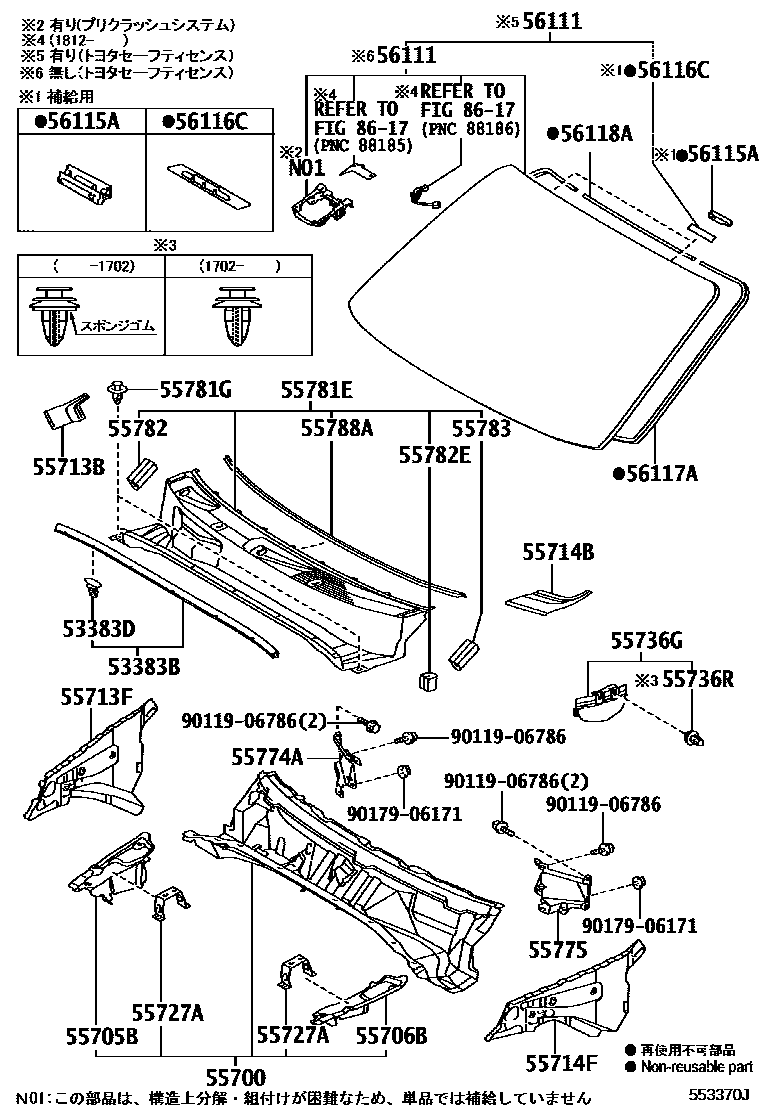

Toyota PROBOX/SUCCEED — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52170iNCP16#,NHP160,NSP160¥620201409

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iNCP16#,NHP160,NSP160¥100201409

55700PANEL ASSY, FRONT

main55700-52390iNCP16#,NSP160¥17,400201409

main55700-52430iNHP160¥17,400201812

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52160iNCP16#,NHP160,NSP160¥2,370201409

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52160iNCP16#,NHP160,NSP160¥2,370201409

55713BCOVER, COWL SIDE PANEL HOLE, RH

main53445-52020iNCP16#,NHP160,NSP160¥660201409

55713FREINFORCEMENT, COWL TOP SIDE, RH

main55713-52160iNCP16#,NHP160,NSP160¥3,600201409

55714BCOVER, COWL SIDE PANEL HOLE, LH

main53446-52020iNCP16#,NHP160,NSP160¥660201409

55714FREINFORCEMENT, COWL TOP SIDE, LH

main55714-52160iNCP16#,NHP160,NSP160¥3,600201409

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-52130iNCP16#,NHP160,NSP160¥500201409

55736GSEAL, FRONT AIR SHUTTER, LH

main55736-52090iNCP16#,NHP160,NSP160¥450201409

55736RCLIP, FRONT AIR SHUTTER SEAL

main90467-09206iNCP16#,NSP160¥80201409-201702

main90467-10161iNCP16#,NHP160,NSP160¥90201702

55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH

main55774-52040iNCP16#,NHP160,NSP160¥920201409

55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH

main55775-52040iNCP16#,NHP160,NSP160¥810201409

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52390iNCP16#,NHP160,NSP160¥9,100201409

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67496iNCP16#,NHP160,NSP160¥200201409

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55789-52080iNCP16#,NHP160,NSP160¥110201409

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55789-52070iNCP16#,NHP160,NSP160¥80201409

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55789-52060iNCP16#,NHP160,NSP160¥130201409

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-52270iNCP16#,NHP160,NSP160¥630201409

56111GLASS, WINDSHIELD

main56101-52130iNCP16#,NSP160¥0201409-201609

main56101-52D80iNCP16#,NSP160¥85,100201609-201711

main56101-52D81iNCP16#,NSP160¥85,100201711-201812

main56101-52E40iNCP16#,NHP160,NSP160¥72,700201812

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP16#,NHP160,NSP160¥130201409

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP16#,NHP160,NSP160¥120201409

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52010iNCP16#,NHP160,NSP160¥1,330201409

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iNCP16#,NHP160,NSP160¥670201409

sub56117-74010¥750

8617

9011906786

main90119-06786¥90

9017906171

main90179-06171¥100

28 parts on this diagram · 1 diagram in section
