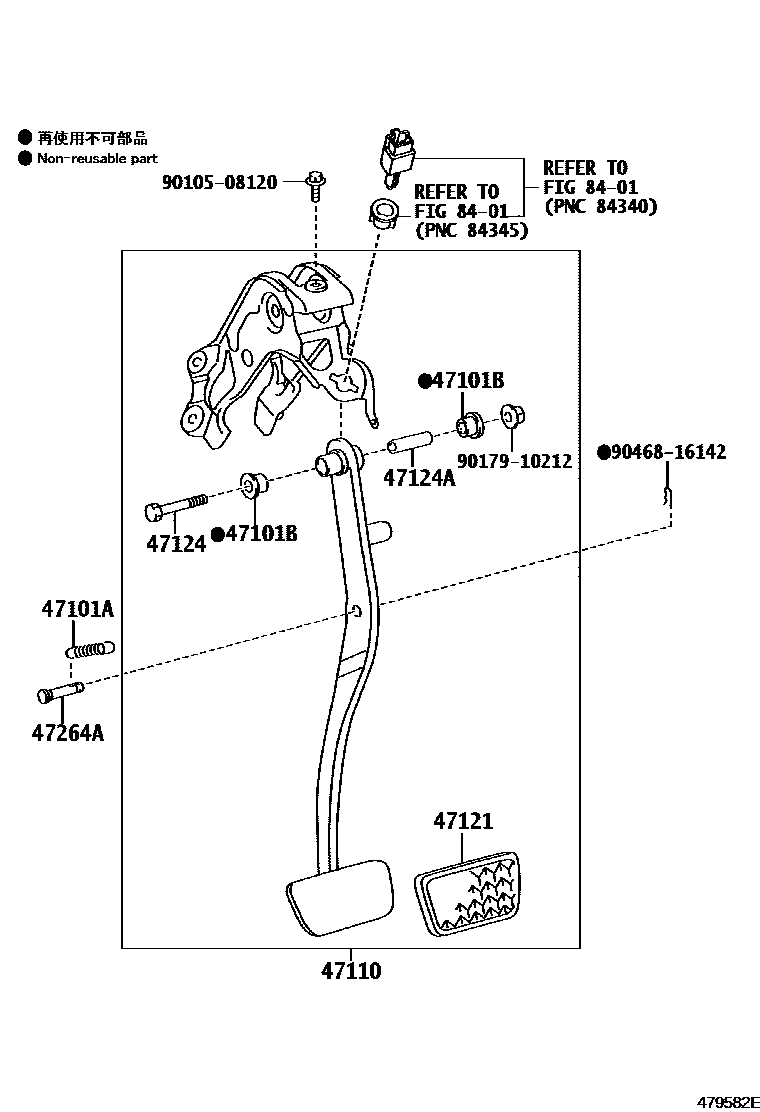

Toyota PROBOX/SUCCEED — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iNCP16#,NHP160,NSP160¥120201409

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP16#,NHP160,NSP160¥120201409

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52390iNHP160¥6,800201812

main47110-52410iNCP16#,NSP160¥6,800201409

47121PAD, BRAKE PEDAL

main47121-52020iNCP16#,NHP160,NSP160¥260201409

47124SHAFT, BRAKE PEDAL

main90101-10039iNHP160¥160201812

main91552-81055iNCP16#,NSP160¥160201409

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNCP16#,NHP160,NSP160¥370201409

47264APIN(FOR PUSH ROD)

main90249-08051iNCP16#,NHP160,NSP160¥170201409

8401

9010508120

main90105-08120¥90

9017910212

main90179-10212¥80

9046816142

main90468-16142¥70

11 parts on this diagram · 2 diagrams in section
